LF950GD-15
Ductile Iron Rate-of-Flow Control Valve with Solenoid (On-Off) Feature

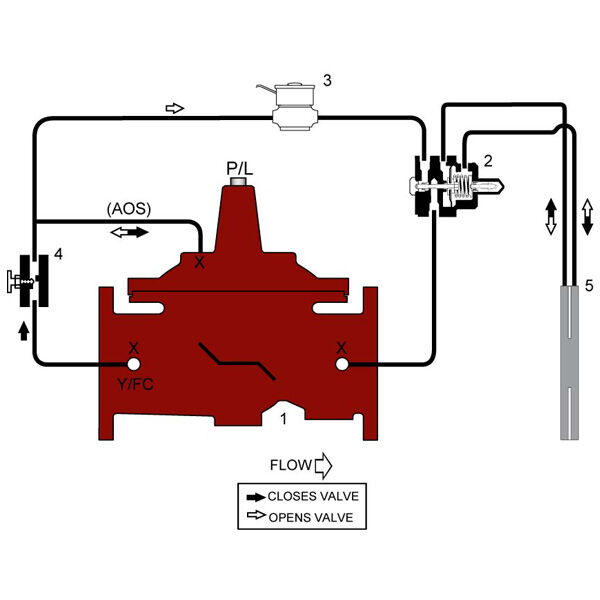

LF950GD-15 (Globe) and LF950AD-15 (Angle) Series is designed to automatically limit flow rate to a constant, adjustable, maximum by sensing differential pressure across a remote mounted orifice plate (field installed). The valve also acts as a Solenoid (On-Off) Control Valve, opening to allow flow control action or closing drip-tight as commanded by the Solenoid Pilot. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Solenoid (On-Off) feature provides electrical override of valve function
- Orifice Plate Assembly is remote mounted (field installed)
- Closing speed and rate-of-flow setpoint are adjustable
