LF951GD
×
![]()
LF951GD
Features
- Automatically limits flow rate to a constant, adjustable maximum
- Throttles to reduce high upstream pressure to constant lower
- Orifice Plate Assembly is remote mounted (field installed)
- Rate-of-flow and Reducing setpoints are separately adjustable
Jump to Section

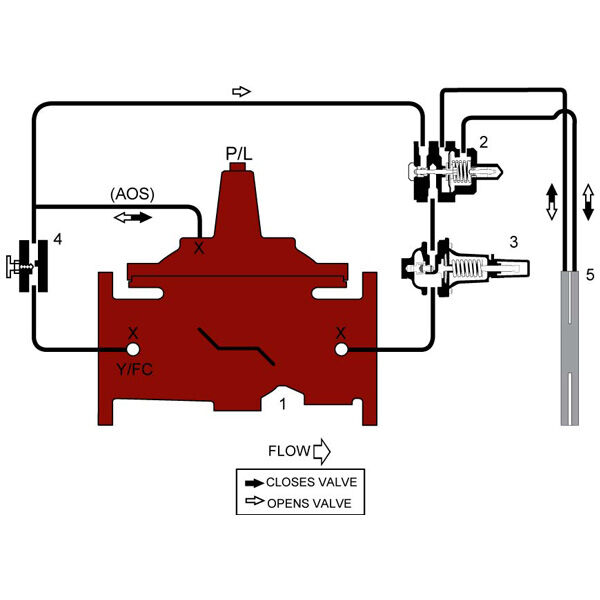

LF951GD (Globe) and LF951AD (Angle) Series is designed to automatically limit flow rate to a constant, adjustable maximum by sensing differential pressure across a remote mounted orifice plate (field installed), and reduce a fluctuating higher upstream pressure to a constant lower downstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF951GD
