4000SS-AG 2 1/2-6
×
![]()
Part of the Air Gaps Series
Ordering Code: 0690511
UPC: 737733007920
Lead Free: No

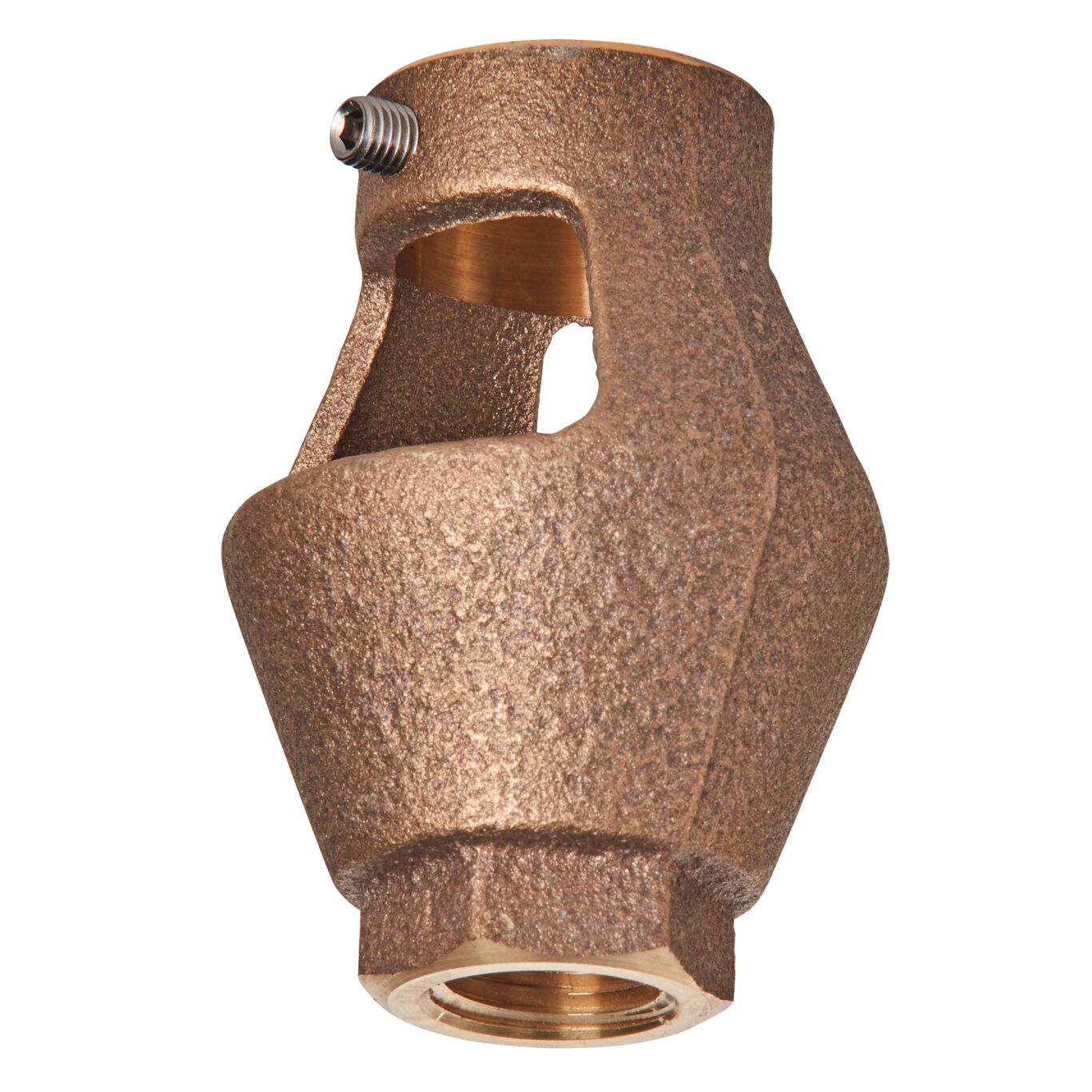

Air Gap for 2 1/2 to 6 IN Series 4000SS Reduced Pressure Zone Assembly, Vertical
This air gap drain is designed to collect water that is being discharged by the relief valve, due to minor check valve fouling and/or to line pressure fluctuations. It is designed to fit 2 1/2 to 6 IN reduced pressure zone assembly, series 4000SS. Install vertically.
Features
- Use with 2 1/2 to 6 IN 4000SS Series
- Factory replacement part
- Funnels minor relief valve discharges into drains
- Conforms to air gap installation requirements
- Nozzle design directs flow directly into funnel reducing side spray
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Brand | Ames Fire & Waterworks |
| EAN | 737733007920 |
| Lead Free | No |
| Outlet Connection Size | 2 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0690511 |
| Series | Air Gaps |
| Valve Size | 2 1/2 to 6 IN |
