LF757DCDA-BFG-GPM 2 1/2

Part of the LF757DCDA Series

Ordering Code: 0122734

UPC: 098268644814

Lead Free: YES

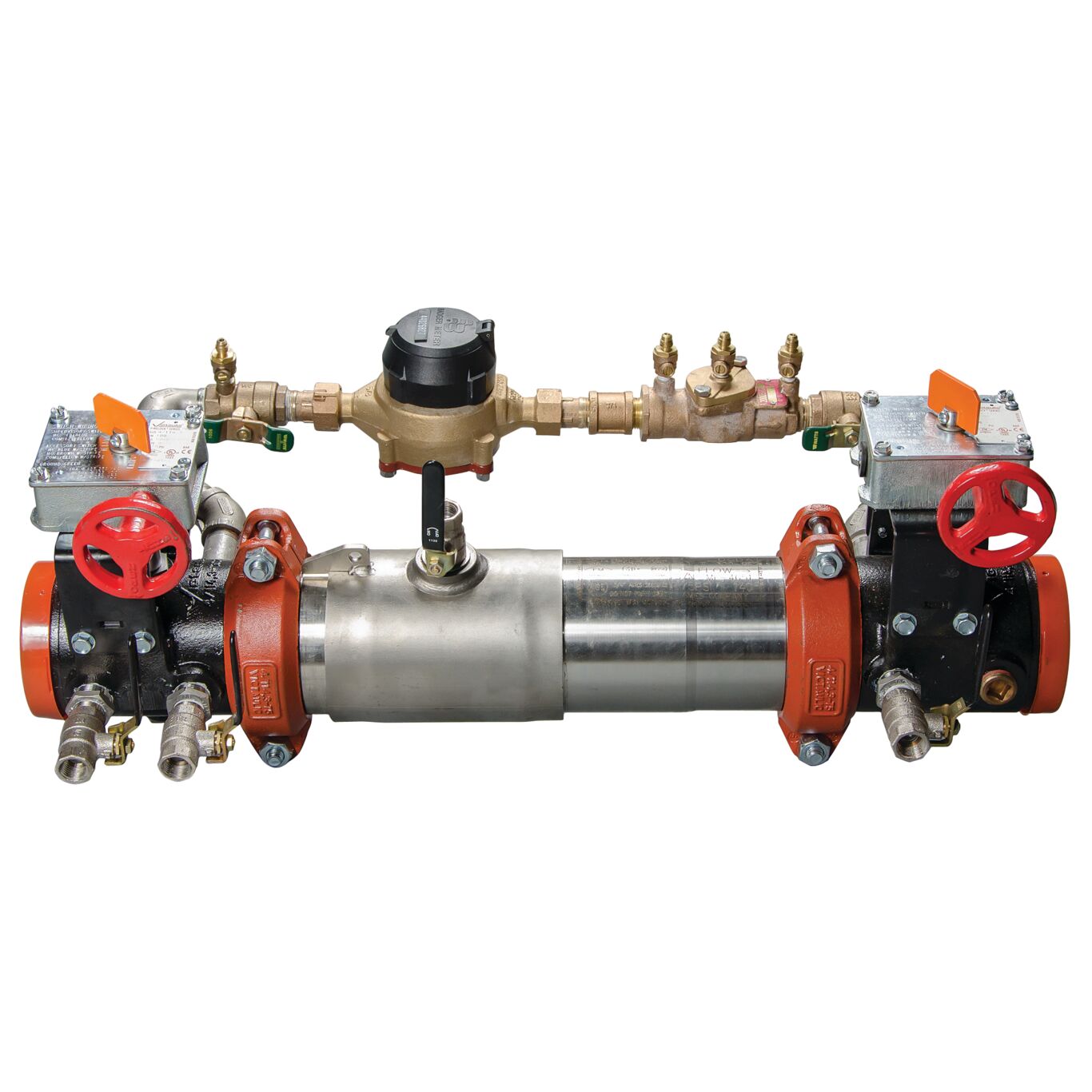

2 1/2 In Lead Free Double Check Detector Assembly, Ul/Fm Butterfly Valve Shutoffs, Gallons/Minute Meter

This 10 inch lead free reduced pressure detector assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Extremely compact and lighter than traditional designs it is approved for horizontal installation. It is ideal for protection at cross-connections identified as health hazards such as on fire sprinkler systems and from other contaminants found at the service line entrance. This assembly without a meter consists of a stainless steel body with a quick access sleeve, torsion spring check valves, resilient seated gate valves with outside stem and yoke, test cocks, and a corrosive resistant bottom mounted pressure relief valve.

Product Features

  • Stainless steel housing and sleeve
  • Gallons per minute meter
  • Quick access sleeve
  • Replaceable check disc rubber
Specifications
Backflow Preventer Type Double Check Detector Assembly
Body Finish Stainless Steel
Body Material Stainless Steel
Body Pattern N-Pattern
BrandName Watts
Bypass Yes
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type Gear Operated Butterfly Valve
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature-Fahrenheit 33
ModelNumber LF757DCDA-BFG-GPM 2 1/2
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Grooved Joint
Outlet Shutoff Valve Type Gear Operated Butterfly Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0122734
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series LF757DCDA
Strainer No
