LF007-DNRS-IOT 3

Part of the LF007 Series

Ordering Code: 88003380

UPC: 098268303179

Lead Free: YES

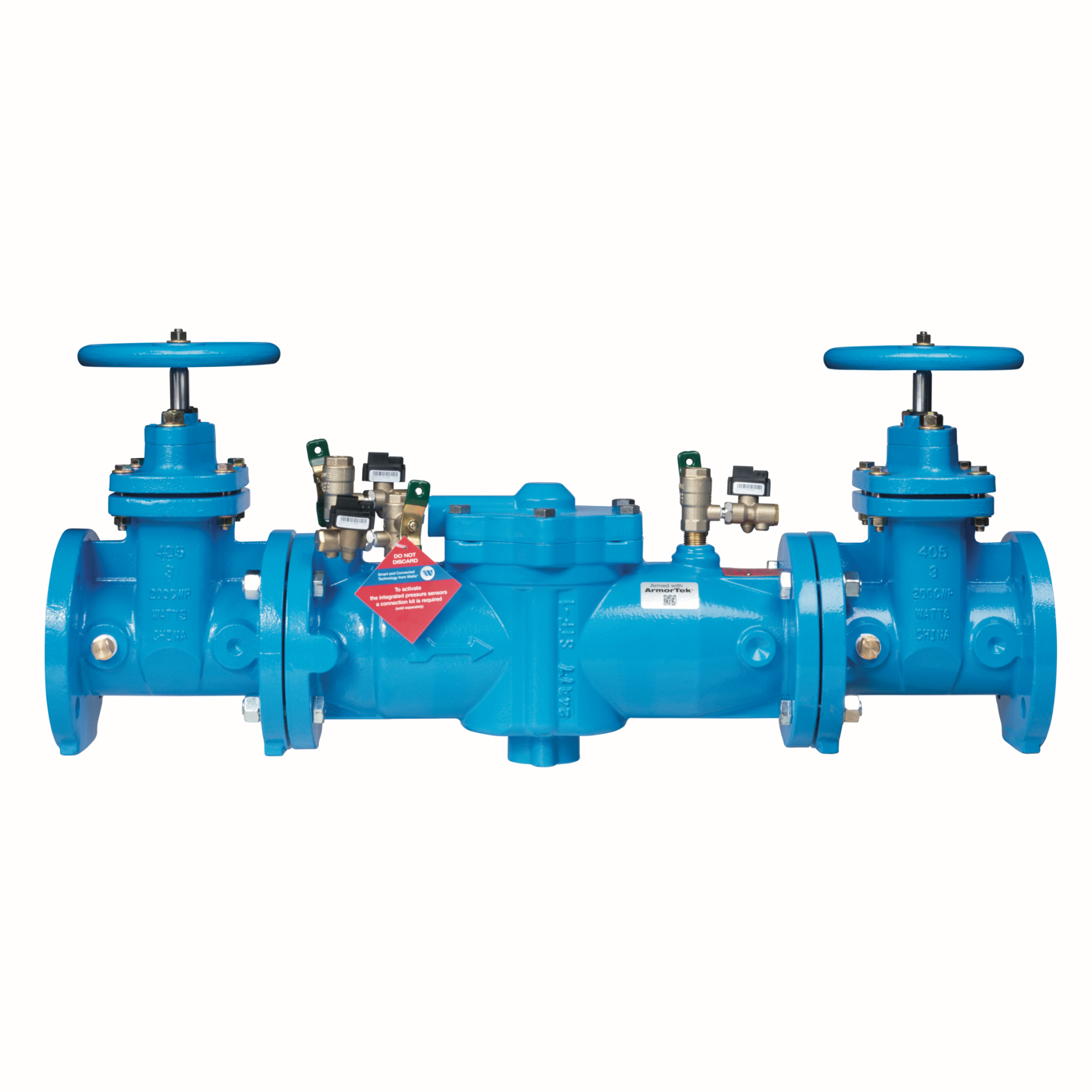

3 IN Cast Iron Double Check Valve Backflow Preventer Assembly, Domestic NRS Shutoff, Single Top Entry, ArmorTek Coating, Pressure-Sensing Test Cocks

  • Pressure sensors integrated on the backflow preventer to measure pressure fluctuations at three test cock locations when activated
  • Add-on kit available for transmitting data values to a building management system
  • A solution for monitoring assembly performance between code testing
  • Data access to help drive scheduling of maintenance and repair
  • Utilizes advanced ArmorTek coating technology to resist corrosion of internals
  • Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Domestic gate valves
  • Replaceable seats and seat discs
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Cast Iron
Body Pattern Inline
Brand Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Rubber
EAN 098268303179
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Non Rising Stem Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 3 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Non Rising Stem Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 88003380
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Rubber
Series LF007
Strainer No
Technologies Performance Monitoring
Tradename None
