LF007-OSY 2 1/2

Part of the LF007 Series

Ordering Code: 0122633

UPC: 098268642421

Lead Free: YES

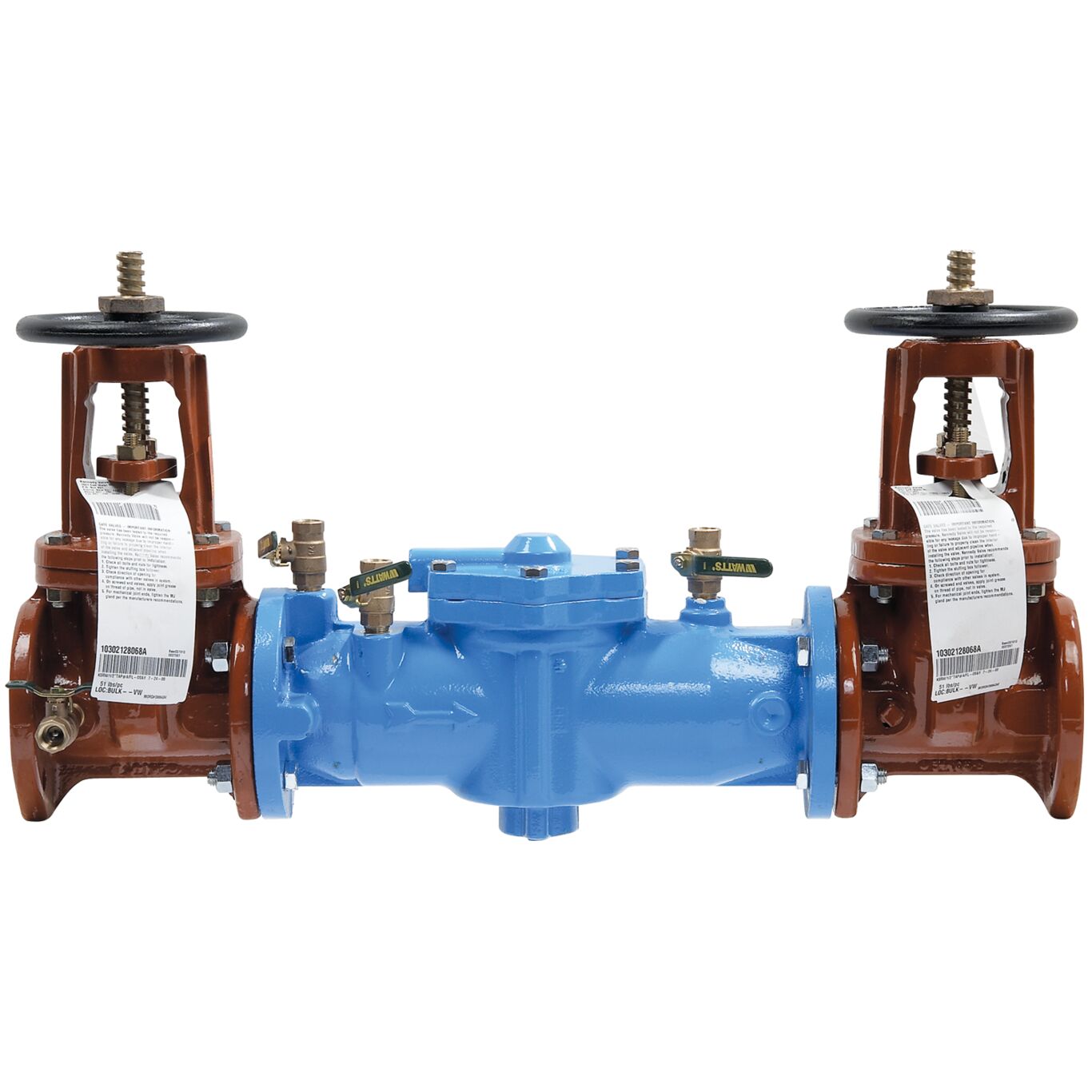

2 1/2 In Cast Iron Double Check Valve Assembly, Osy Shutoff, Single Top Entry

This 2 1/2 inch lead free double check valve assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a fused epoxy coated cast iron body, UL and FM outside stem and yoke resilient seated gate valves, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features

  • No special tools required for servicing
  • Lead free construction
  • Compact design
  • Replaceable seats and seat discs
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated
Body Material Cast Iron
Body Pattern Inline
Brand Name Watts
Bypass No
Cap And Tether No
Disc Material Rubber
EANUCCCode 098268642421
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Outlet Thread Type NPT
Part Number 0122633
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Rubber
Series LF007
Strainer No
Type Kit
