LFU007M1-QT-Z3 1

Part of the LF007 Series

Ordering Code: 0122621

UPC: 098268639759

Lead Free: YES

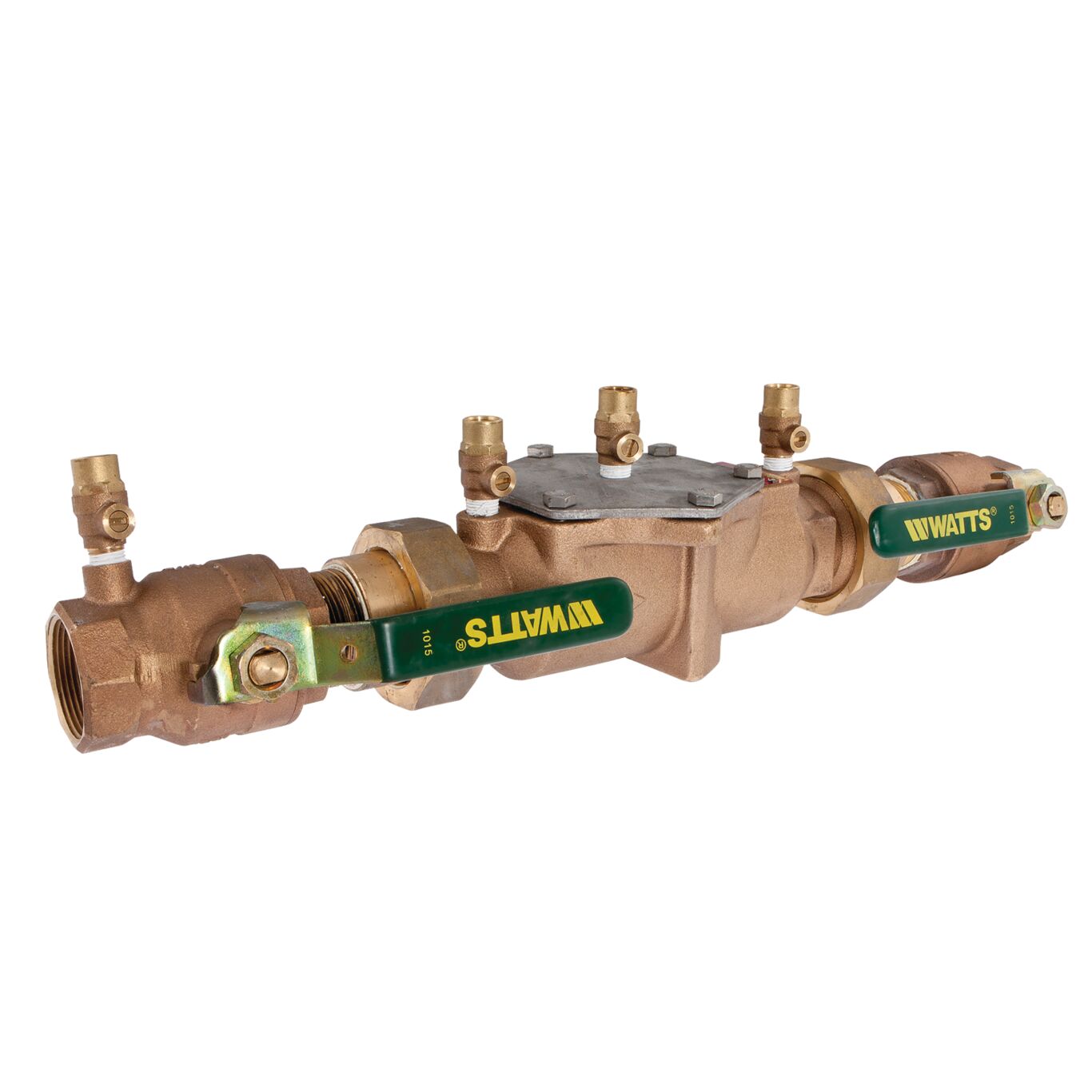

1 IN Lead Free Double Check Valve Backflow Preventer Assembly with Quarter Turn Shutoff, Union Connections, Single Top Entry

  • Lead free construction
  • Modular compact design
  • Replaceable seats and seat discs
  • Top entry
Specifications
ArmorTek Technology No
Backflow Preventer Type Double Check Valve Assembly
Body Finish Cast Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Straight
Brand Watts
Buy American Act Compliant YES
Bypass No
Cap And Tether No
Disc Material Rubber
EAN 098268639759
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type FPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type FPT
Part Number 0122621
Polymer Coating No
Protection Type Backpressure
Seat Material Rubber
Series LF007
Strainer No
Technologies Does Not Apply To Product
Tradename None
