LF709-DNRS 2 1/2

Discontinued - Replaced By: LF709-DNRS-IOT 2 1/2

Part of the LF709 Series

Ordering Code: 0792172

UPC: 098268437546

Lead Free: YES

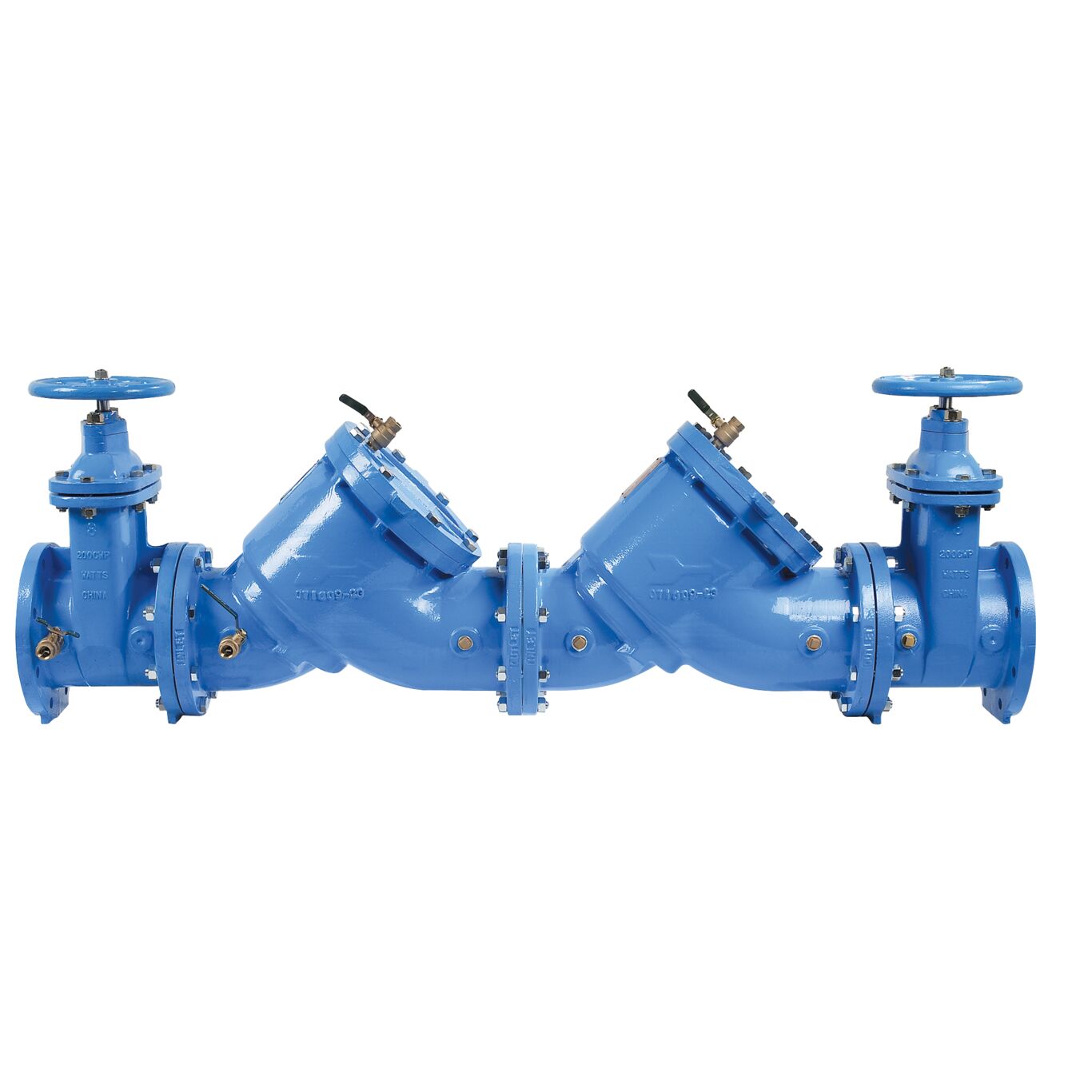

2 1/2 IN Lead Free Cast Iron Double Check Valve Backflow Preventer Assembly, Domestic NRS Shutoff, Epoxy Coated Using ArmorTek Technology

  • Utilizes advanced ArmorTek coating technology to resist corrosion of internals
  • Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Domestic non-rising stem gate valves
  • Maximum flow at low pressure drop
  • No special tools required for servicing
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Double Check Valve Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Cast Iron
Body Pattern Inline
Brand Watts
Buy American Act Compliant NO
Bypass No
Cap And Tether No
EAN 098268437546
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 1/2 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Non Rising Stem Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 1/2 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Non Rising Stem Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0792172
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF709
Strainer No
Technologies Does Not Apply To Product
Tradename None
