7-10-U2 1X3/4 Watts

Discontinued - Replaced By: LF7R10-U2 1 X 3/4

Part of the 7 Series

Ordering Code: 0061778

UPC: 098268003307

Lead Free Model Available

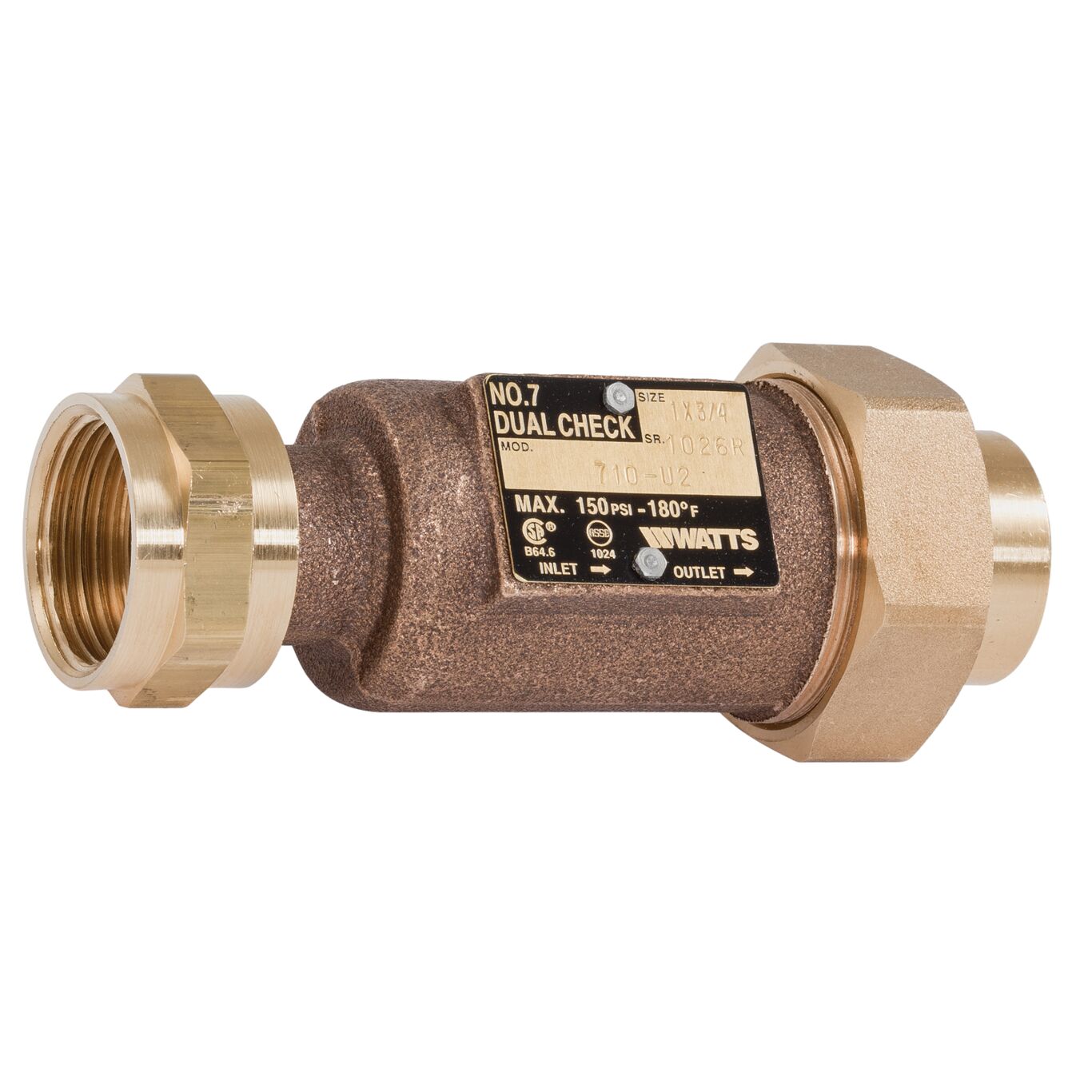

1 X 3/4 In Dual Check Valve, Thread X Male Npt Union

This 1 by 3/4 inch dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve is designed for non-health hazard residential water system containment, continuous pressure applications. It can be installed in a vertical or horizontal position. It consists of a bronze body, meter thread female (swivel) inlet by union NPT thread female outlet, two plastic replaceable check valves, and stainless steel springs. Minimum working pressure is 10 PSI (69 kPa). Maximum working pressure is 150 PSI (10 BAR).

Product Features

  • Swivel meter thread by male NPT union
  • Drilled union for tamper resistance
  • Short lay length
  • Bronze body for durability
Specifications
BrandName Watts
GDS Status Registered
LeadFree NO
ModelNumber 7-10-U2 1X3/4
Part Number 0061778
Series 7
