7-10-U3 1X3/4

Discontinued - Replaced By: LF7R10-U3 1 X 3/4

Part of the 7 Series

Ordering Code: 0061765

UPC: 098268003215

Lead Free Model Available

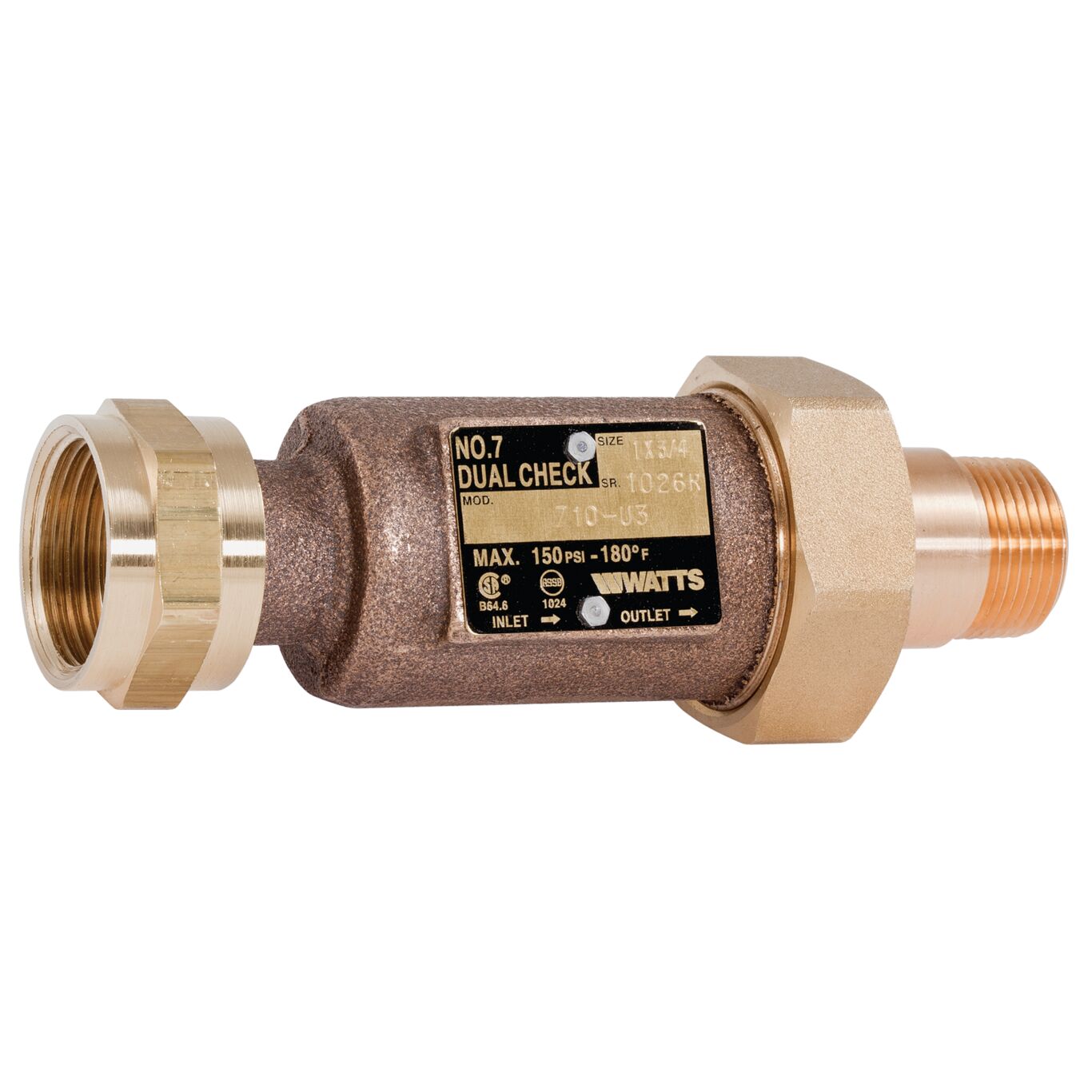

1 X 3/4 In Dual Check Valve, Thread X Female Npt Union

This 1 by 3/4 inch dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve is designed for non-health hazard residential water system containment, continuous pressure applications. It can be installed in a vertical or horizontal position. It consists of a bronze body, meter thread female (swivel) inlet by union NPT thread male outlet, two plastic replaceable check valves, and stainless steel springs. Minimum working pressure is 10 PSI (69 kPa). Maximum working pressure is 150 PSI (10 BAR).

Product Features

  • Drilled union for tamper resistance
  • Compact design
  • Bronze body for durability
  • Swivel meter thread x female NPT union
Specifications
BrandName Watts
LeadFree NO
ModelNumber 7-10-U3 1X3/4
Part Number 0061765
Series 7
