7U4-3 1X1 Watts

Discontinued

Part of the 7 Series

Ordering Code: 0061826

UPC: 098268003734

Lead Free: NO

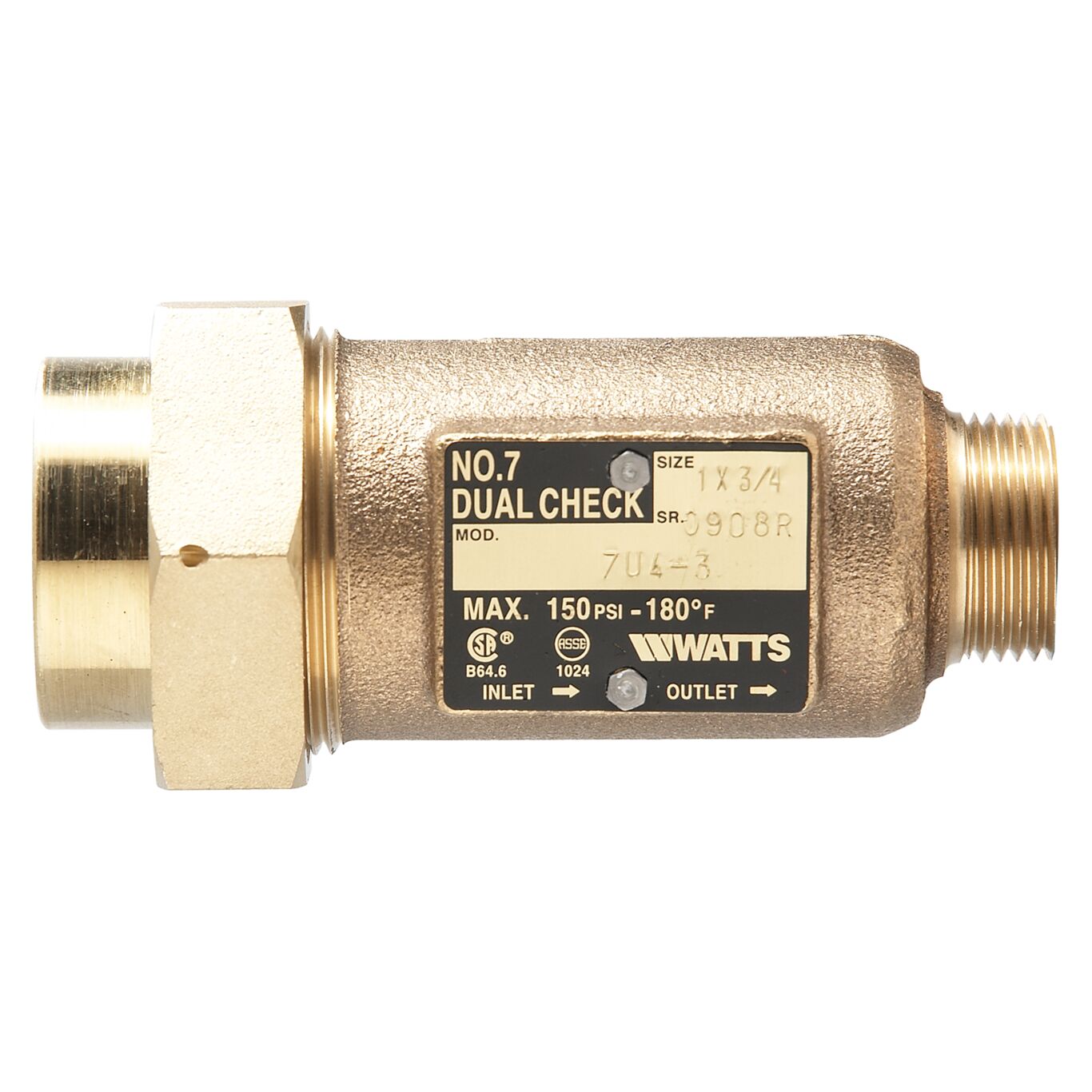

1 X 1 In Bronze Dual Check Valve, Union Female Meter Thread Inlet By Male Npt Outlet

This 1 IN union femal meter thread x 1 IN male NPT, series 7, dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a bronze body construction, with two plastic replaceable check valves, and stainless steel springs. The valve is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Check with local inspection authorities for installation requirements. Minimum working pressure is 10 PSI (69 kPa). Maximum working pressure is 150 PSI (10 BAR).

Product Features

  • Variety of end connections
  • Union Connection
  • Compact design
  • Bronze body for durability
Specifications
Backflow Preventer Type Dual Check
Body Material Bronze
BrandName Watts
Bypass No
Cap And Tether No
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type No Shutoff Valve
LeadFree NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 7U4-3 1X1
Outlet Connection Size 1 IN
Outlet Connection Type Male Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0061826
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 7
Strainer No
