9DM2-Z5
Discontinued
Part of the 9D Series
Ordering Code: 0061951
UPC: 098268323320
Lead Free: NO

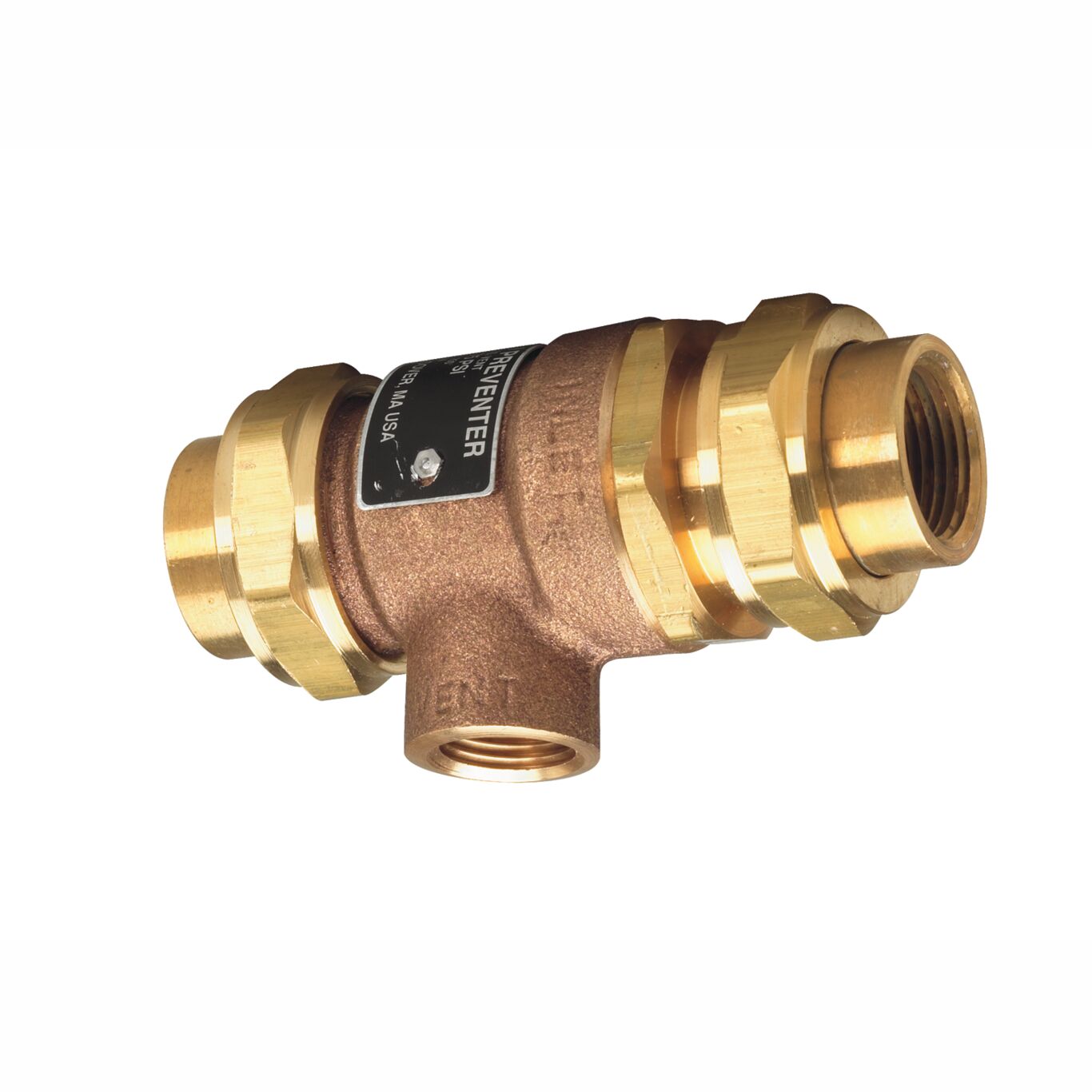

1/2 In Bronze Dual Check Valve Backflow Preventer with Intermediate Atmospheric Vent, 3/4 In Body With 1/2 In Tailpieces
This 1/2 inch non union dual check valve backflow preventer with atmospheric vent prevents the reverse flow of hot or cold polluted water from entering into the potable water supply. This valve is designed for continuous pressure non-health hazard applications in smaller supply lines, such as laboratory equipment, processing tanks, sterilizers, dairy equipment, and specifically for boiler feed lines. It consists of a 3/4 IN brass body with stainless steel internal parts and 1/2 IN tailpieces, integral strainer, two durable tight seating rubber check valves, and NPT female inlet and outlet connections.
Features
- Primary check valve has rubber disc seating against a mating rubber part to ensure tight closing
- Stainless steel internal parts for longevity
- Can be installed vertically or horizontally
- Line-sized construction enables check modules to open further, helping to reduce check fouling
| Specifications | |
|---|---|
| Backflow Preventer Type | Dual Check with Atmospheric Vent |
| Body Finish | Brass |
| Body Material | Brass |
| Brand | Watts |
| Bypass | No |
| Cap And Tether | No |
| EAN | 098268323320 |
| Elbow Fitting | No |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 15 MM |
| Inlet Connection Type | Union Female Threaded |
| Inlet Shutoff Valve Type | No Shutoff Valve |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 250 |
| Maximum Working Pressure-BAR | 12.10 |
| Maximum Working Pressure-PSI | 175 |
| Meter Type | No Meter |
| Minimum Temperature - Celsius | 0.50 |
| Minimum Temperature-Fahrenheit | 33 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Union Joint |
| Outlet Shutoff Valve Type | No Shutoff Valve |
| Part Number | 0061951 |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Series | 9D |
| Strainer | Yes |
