H7

Discontinued - Replaced By: LFH7

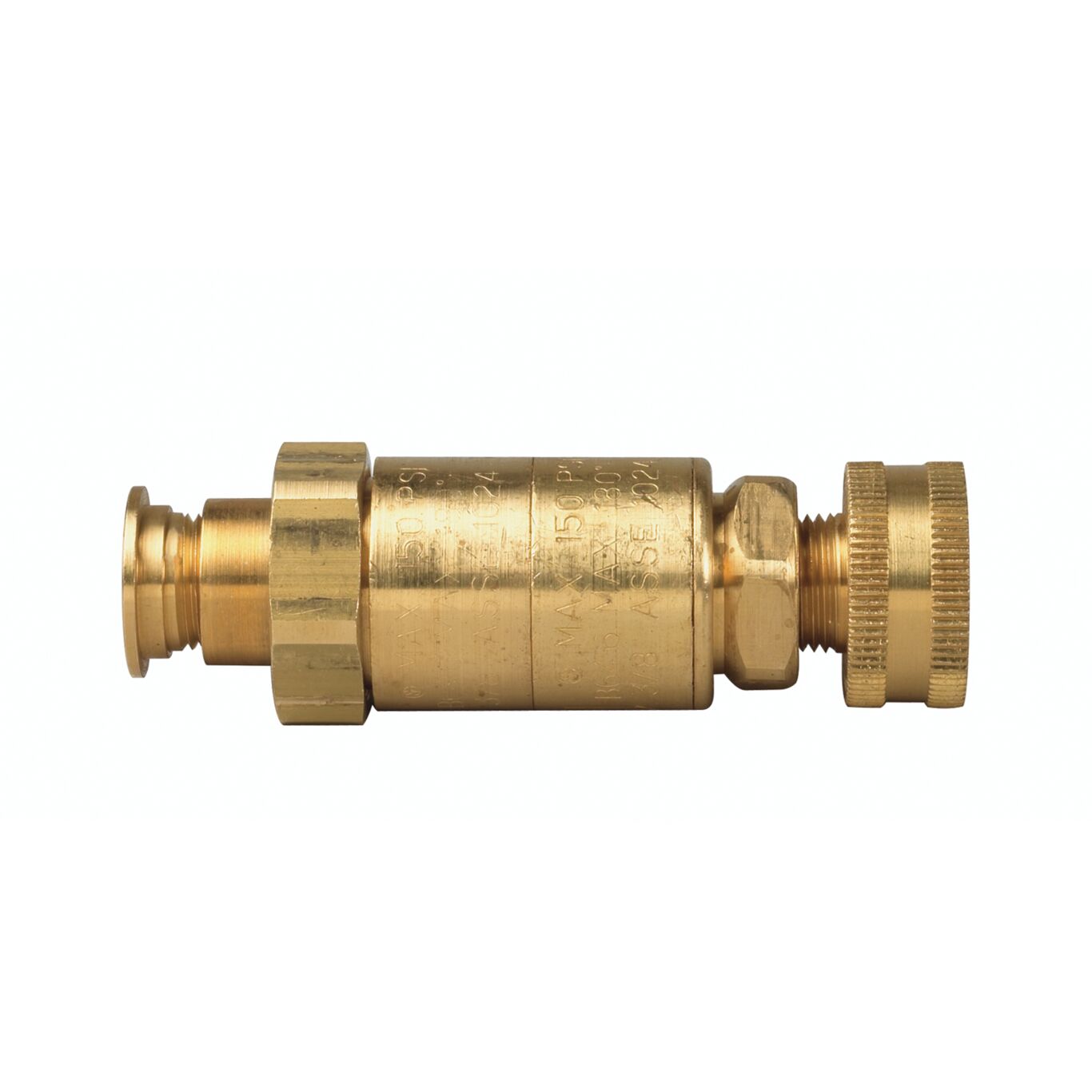

Dual Check Valves with Hose Connection

Series H7, H7C Dual Check Valve with Hose Connection prevent the reverse flow of polluted water from entering into the drinking water supply at individual outlets. It consists of a chrome-plated brass body construction, with two independently operating check valves, stainless steel springs, pressure plates, and brass (H7) or chrome-plated (H7C) hose connection. Series H7, H7C is designed for non-health hazard residential water system containment, continuous pressure applications, such as wash-down sinks with a hose-type device. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69kPa), Maximum Working Pressure: 150psi (10 bar), Maximum recommended flow: 15 gpm (57 lpm).

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific H7

Approval Information

For approval information, please refer to the products specification sheet. For any other information on product certification and documentation information, please visit our certification partner websites:
