LF7-10-U3 1 1/4X1

Part of the LF7 Series

Ordering Code: 0122565

UPC: 098268637847

Lead Free: YES

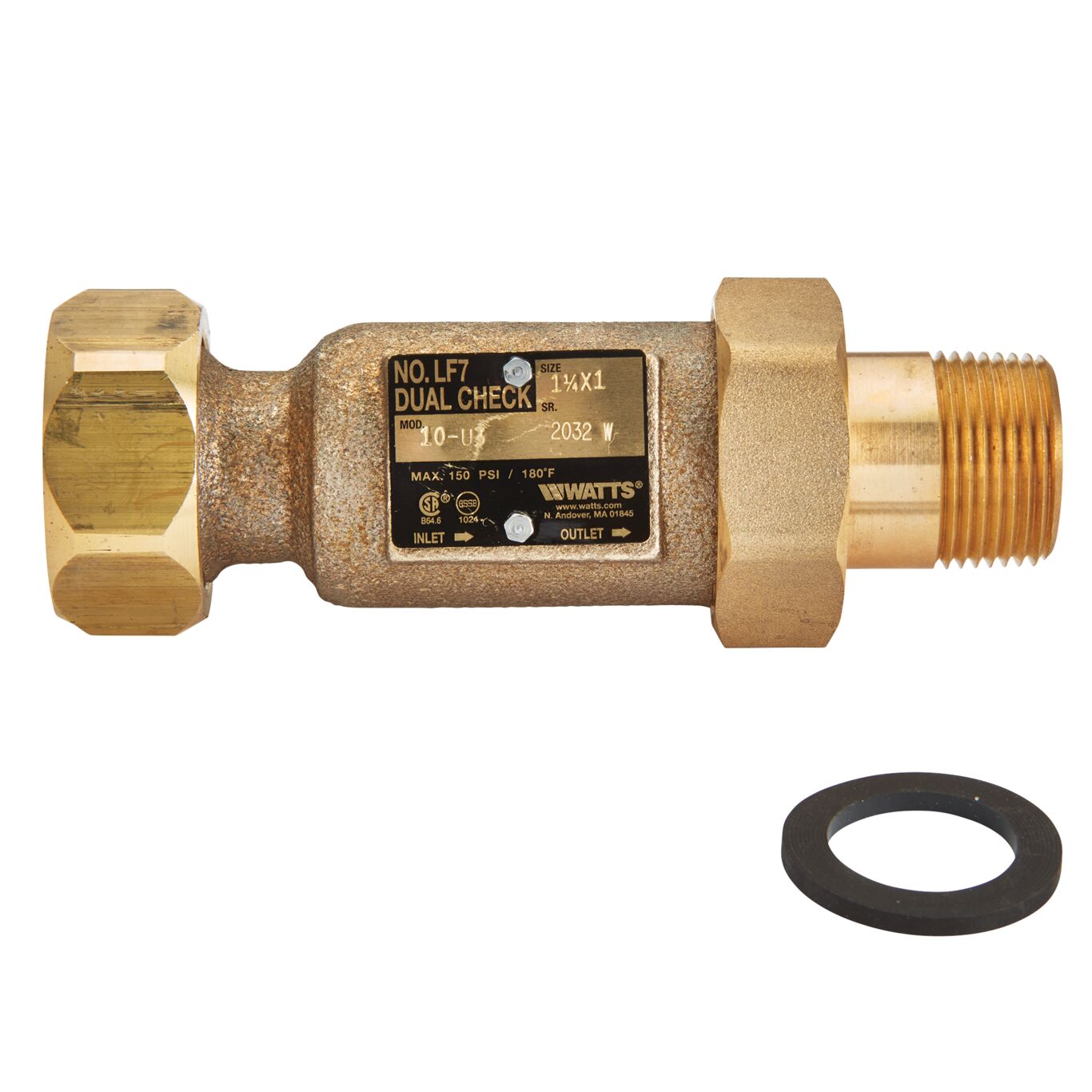

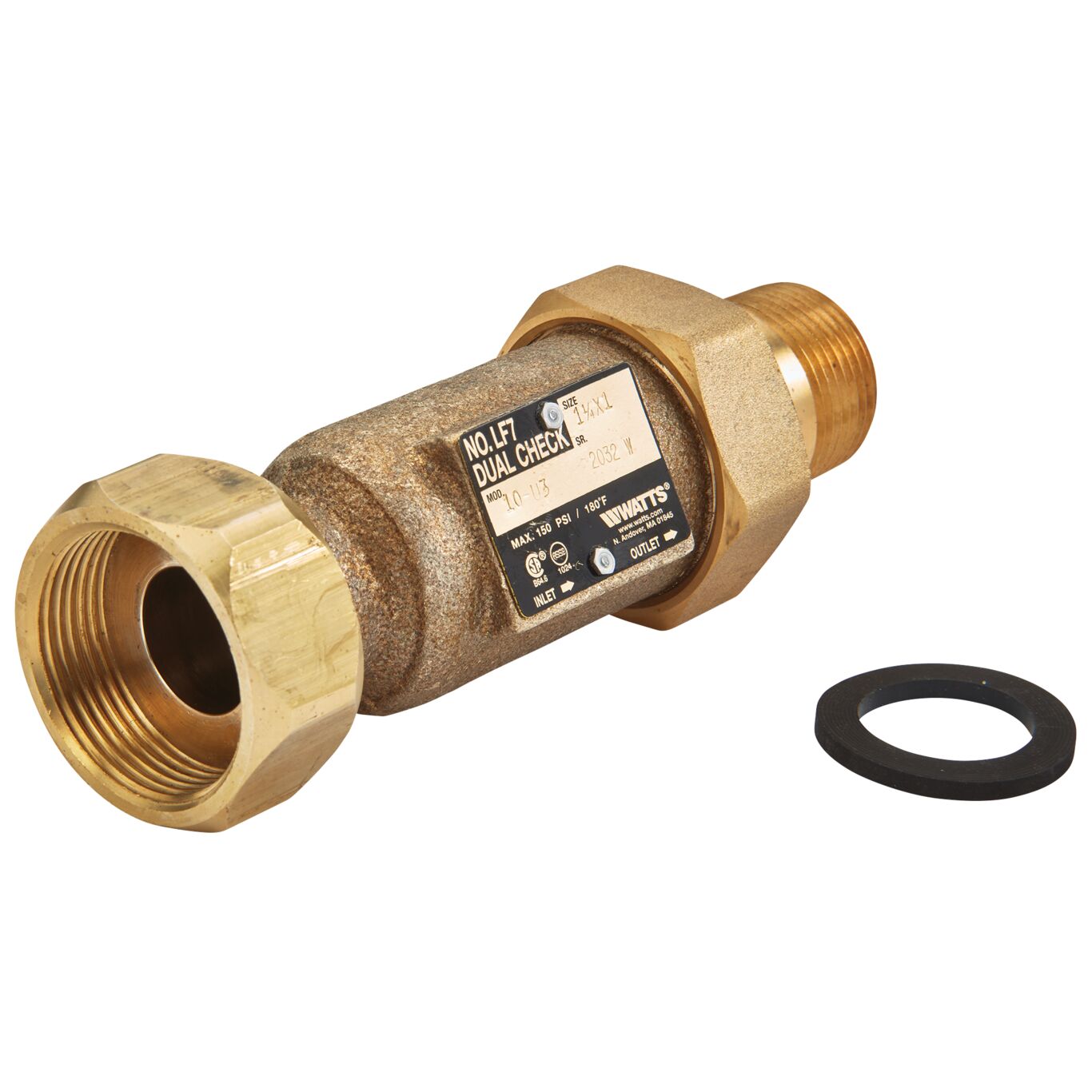

1 1/4 X 1 In Lead Free Dual Check Valve, Female Meter Thread Swivel Inlet X Union Male Npt Outlet

This 1 1/4 by 1 inch lead free dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a lead free bronze body with two plastic replaceable check valves, stainless steel springs, and 1 1/4 inch female meter thread swivel inlet by 1 inch NPT male threaded union outlet. This valve is designed for non-health hazard residential water system containment, continuous pressure applications. It is installed immediately downstream of the residential water meter, in a vertical or horizontal position. Minimum working pressure is 10 PSI (69 kPa). Maximum working pressure is 150 PSI (10 BAR).

Product Features

  • Compact design
  • Variety of end connections
  • Lead free body construction
  • Union Connection
Specifications
Backflow Preventer Type Dual Check
Body Finish Bronze
Body Material Lead Free Bronze
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Swivel Joint
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF7-10-U3 1 1/4X1
Outlet Connection Size 1 IN
Outlet Connection Type Union Male Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0122565
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material BUNA-N
Series LF7
Strainer No
