LF7R10-U2 1 X 1

Part of the LF7R Series

Ordering Code: 0072214

UPC: 098268824537

Lead Free: YES

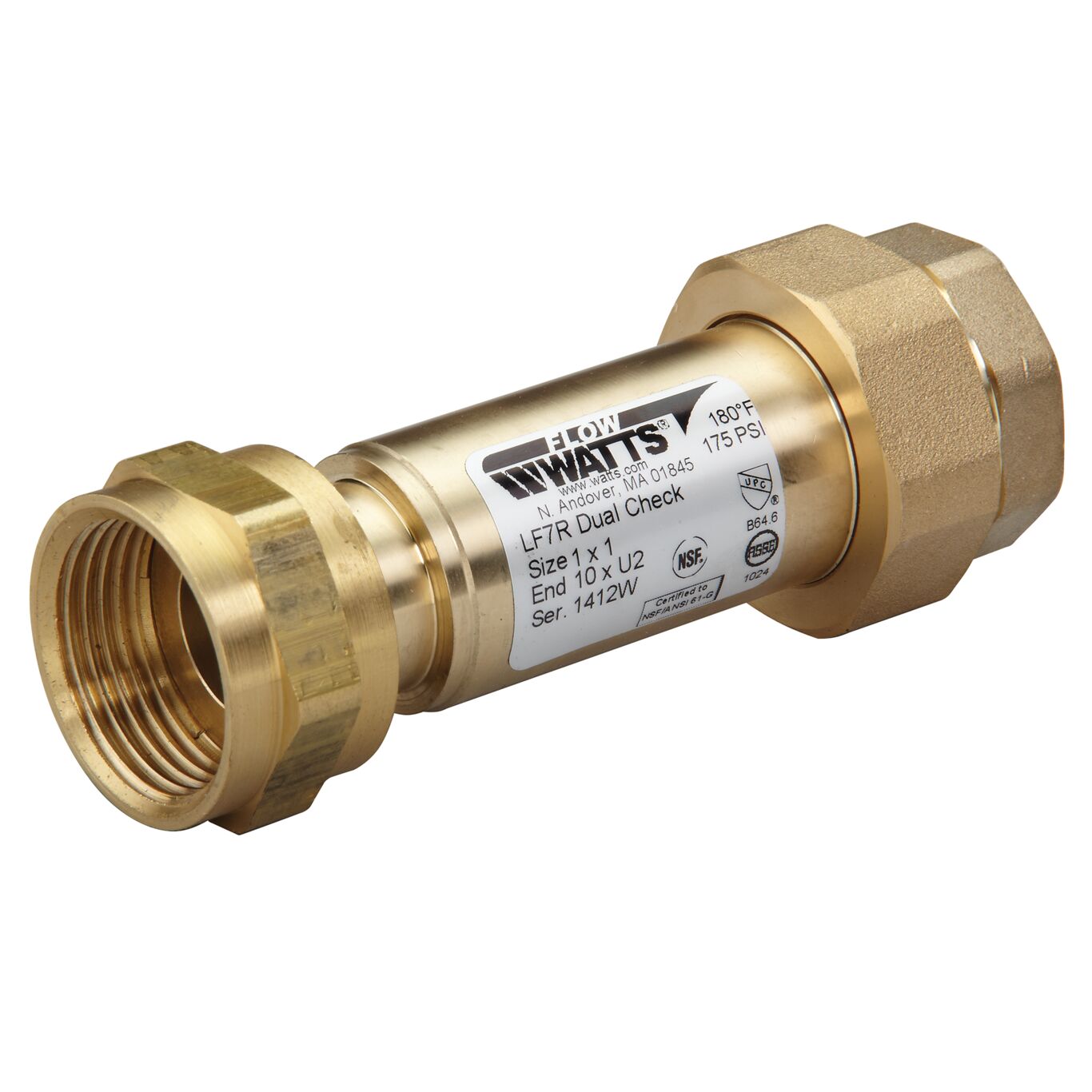

1 X 1 In Lead Free Residential Dual Check Valve, Female Meter Thread Inlet X Union Female Npt Outlet

This 1 by 1 inch lead free dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve consists of a lead free brass body construction, 1 inch female meter thread (swivel) inlet by 1 inch union female NPT thread outlet, two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 PSI (69 kPa) and maximum working pressure is 175 PSI (12 BAR).

Product Features

  • Lead free brass body for durability
  • Can be installed vertically or horizontally
  • Meets ANSI/ASSE Standard 1024
  • Compact design
Specifications
Backflow Preventer Type Dual Check
Body Finish Bronze
Body Material Lead Free Brass
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Santoprene
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Swivel Joint
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type MTSF
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF7R10-U2 1 X 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0072214
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material EPDM
Series LF7R
Strainer No
