LF7RU2-2 3/4 X 1 Watts

Part of the LF7R Series

Ordering Code: 0072212

UPC: 098268824001

Lead Free: YES

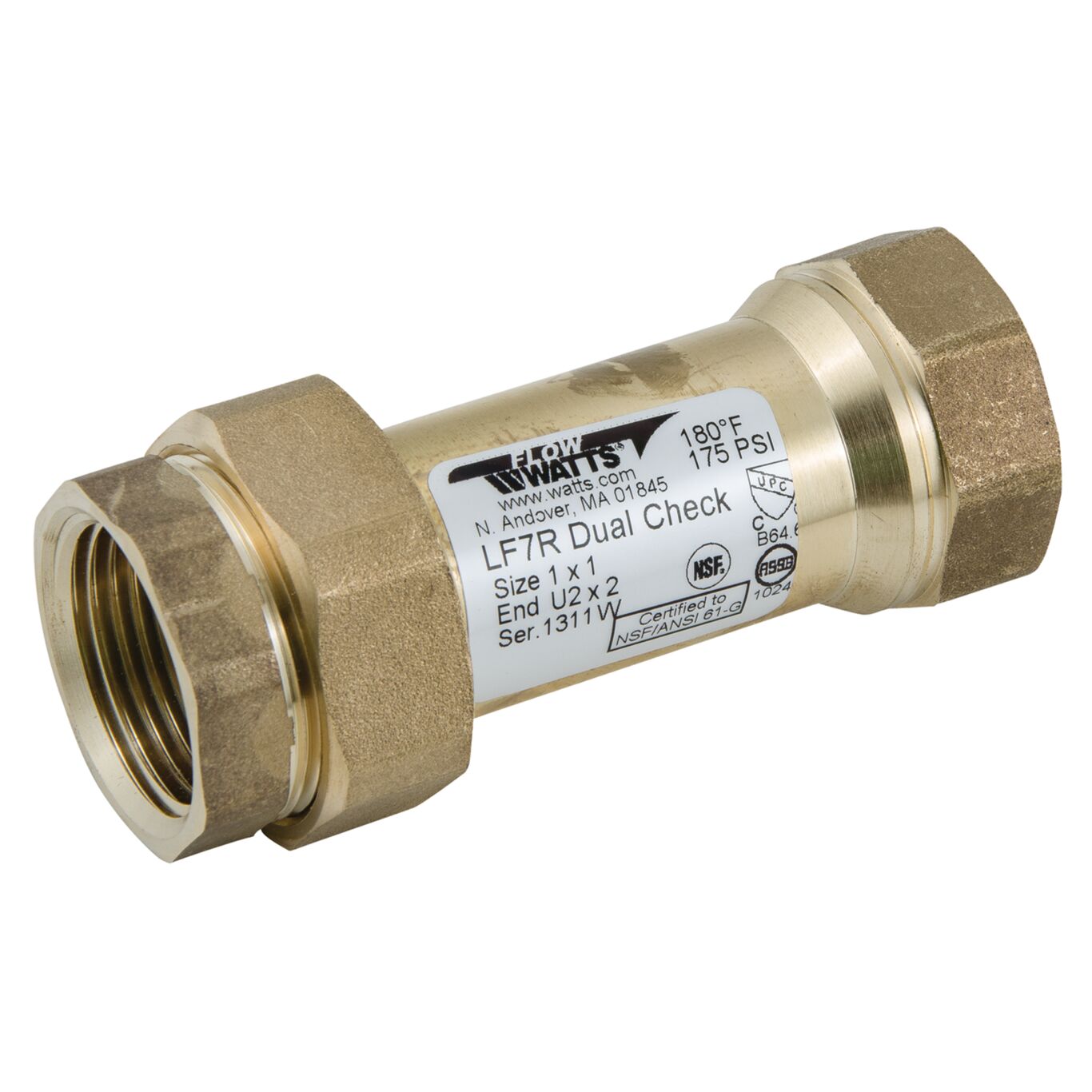

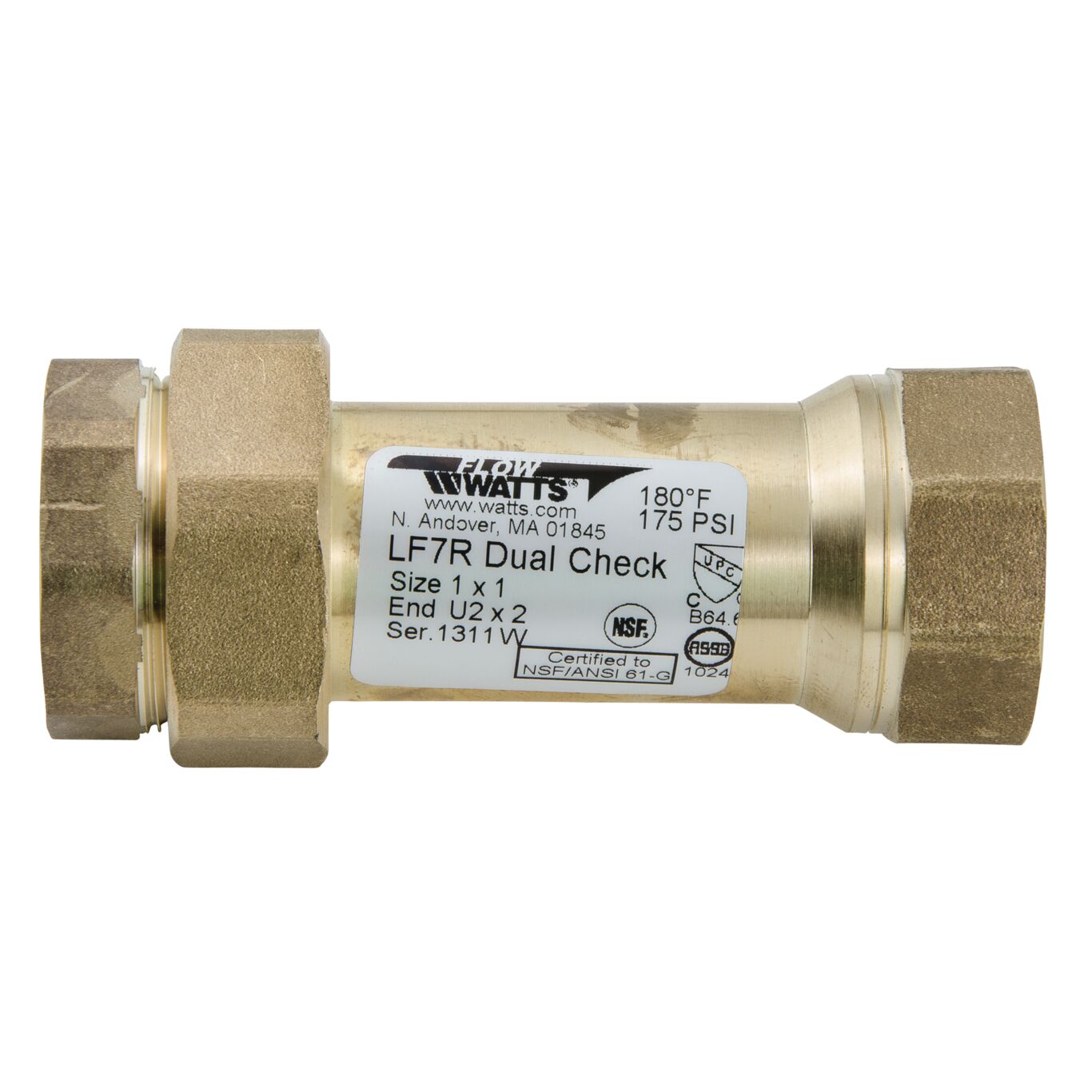

3/4 X 1 In Lead Free Residential Dual Check Valve, Union Female Npt Inlet X Female Npt Outlet

This 3/4 by 1 inch lead free dual check valve prevents the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. This valve consists of a lead free brass body construction, 3/4 inch union female NPT inlet by 1 female NPT outlet, two plastic replaceable check valves, and stainless steel springs. It is designed for non-health hazard residential water system containment, continuous pressure applications and is to be installed immediately downstream of the residential water meter, in a vertical or horizontal position. The minimum working pressure is 10 PSI (69 kPa) and maximum working pressure is 175 PSI (12 BAR).

Product Features

  • Lead free brass body for durability
  • Compact design
  • Can be installed vertically or horizontally
  • Meets ANSI/ASSE Standard 1024
Specifications
Backflow Preventer Type Dual Check
Body Finish Bronze
Body Material Lead Free Brass
Body Pattern Inline
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Santoprene
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Type Union Female Threaded
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF7RU2-2 3/4 X 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type FPT
Part Number 0072212
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material EPDM
Series LF7R
Strainer No
