LFCu7
Discontinued

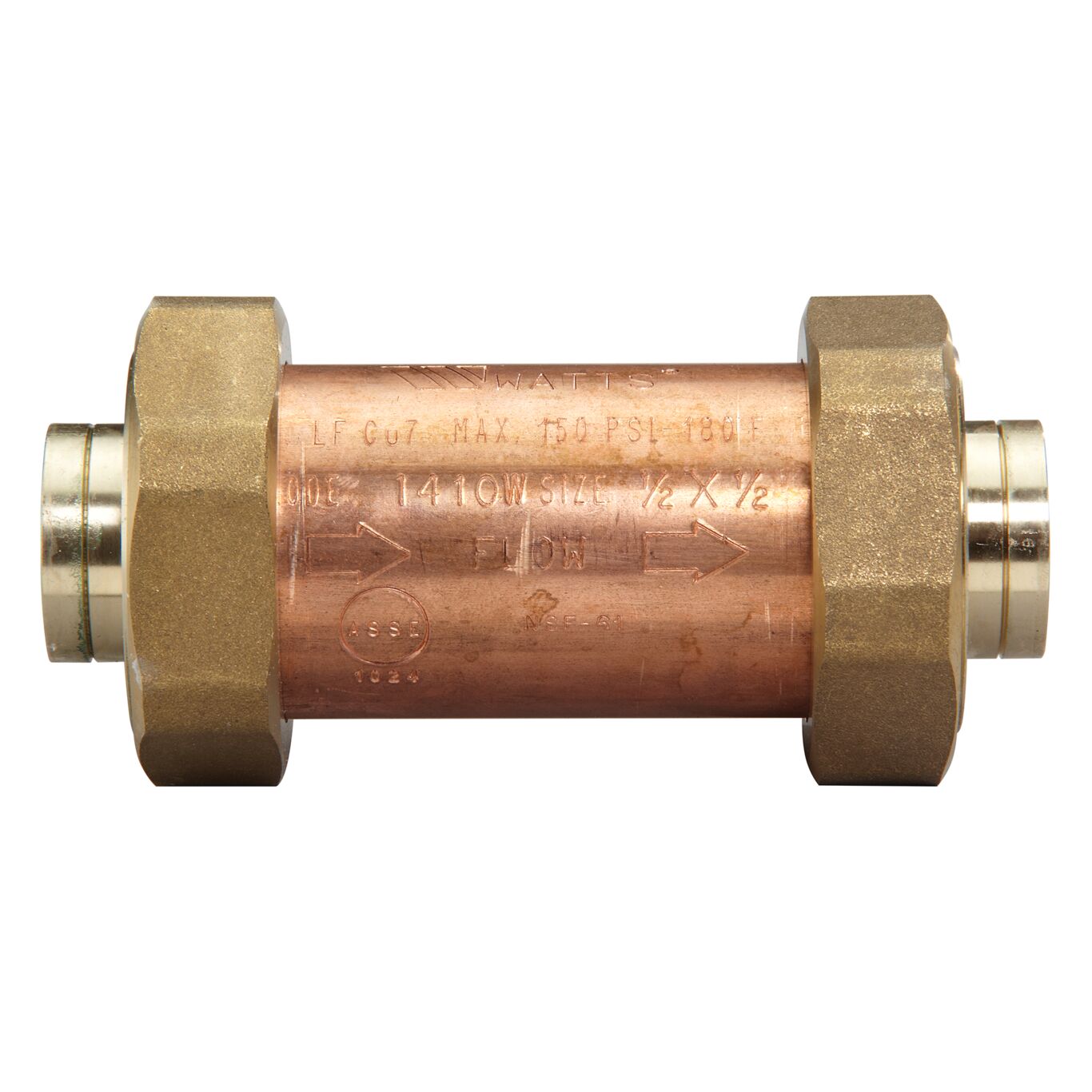

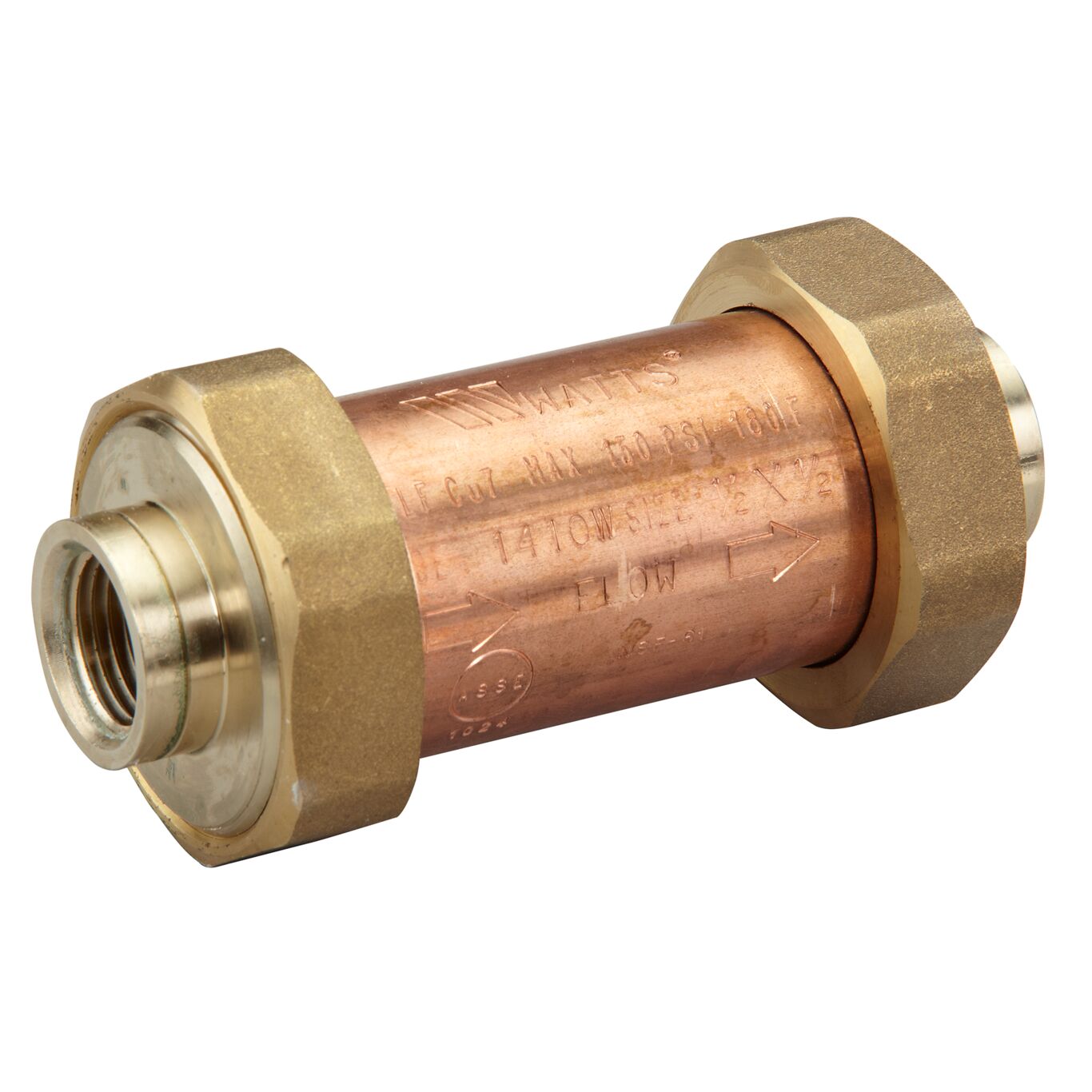

Lead Free* Copper-Body Dual Check Valve Backflow Preventers
Series LFCu7 Lead Free* Copper-Body Dual Check Valves prevent the reverse flow of polluted water from entering into the drinking water supply at the service entrance or at individual outlets. It consists of a lead-free, copper, poppet-type body construction, that minimizes pressure drop and provides smooth flow characteristics. Series LFCu7 straight-line design is ideal for use in non-health hazard residential water system containment and continuous pressure applications. It can be installed in a vertical or horizontal position and is furnished with double unions for ease of installation and repair. Check with local inspection authorities for installation requirements. Minimum Working Pressure: 10psi (69 kPa), Maximum Working Pressure: 150psi (10.34 bar).
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFCu7
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
