8 LF860-DNRS-FP

PVS-7310_0113161
PVS-7310_0113161_ANGLE
×

Discontinued

Part of the LF860 Large Series

Ordering Code: 0113164

UPC: 643925223446

Lead Free: YES

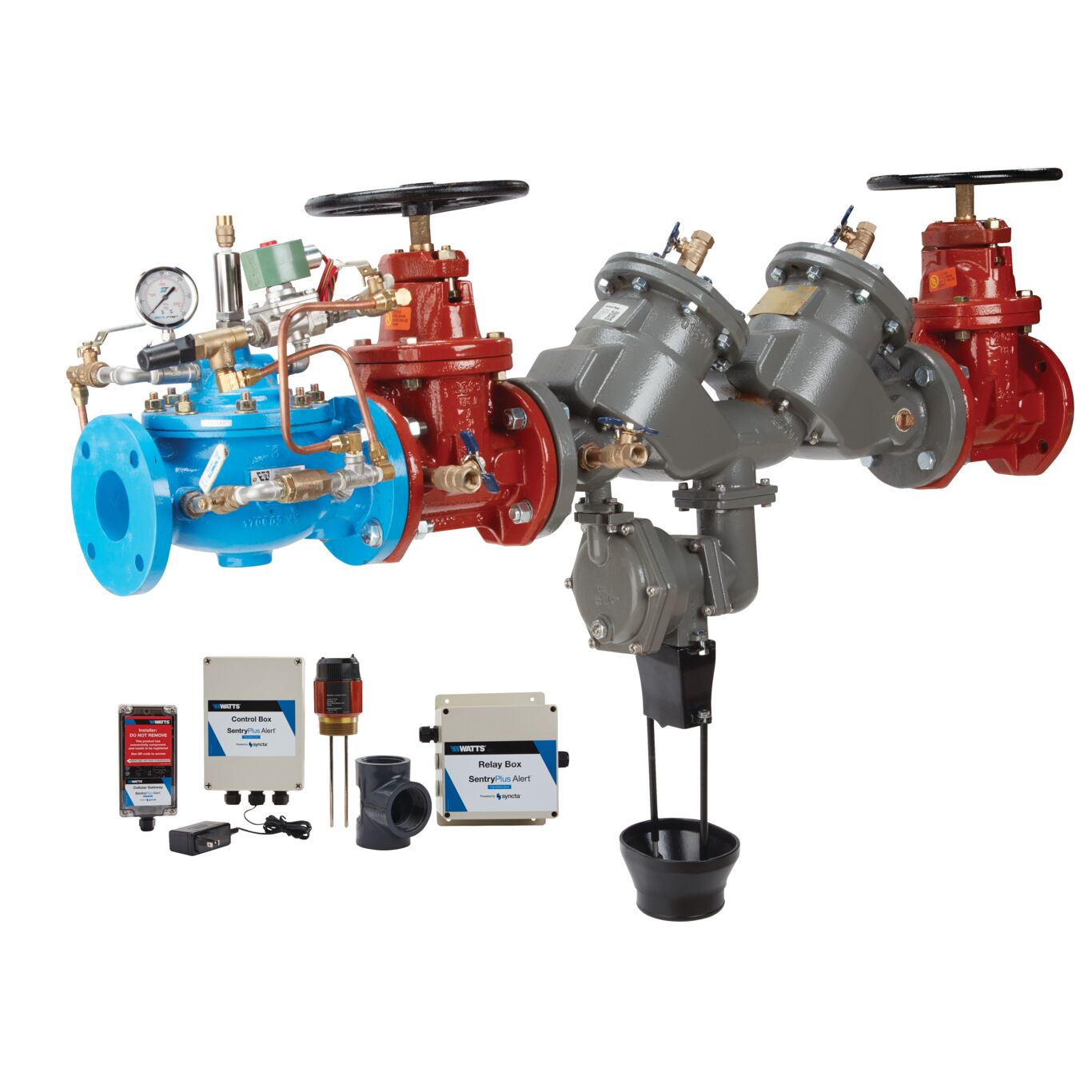

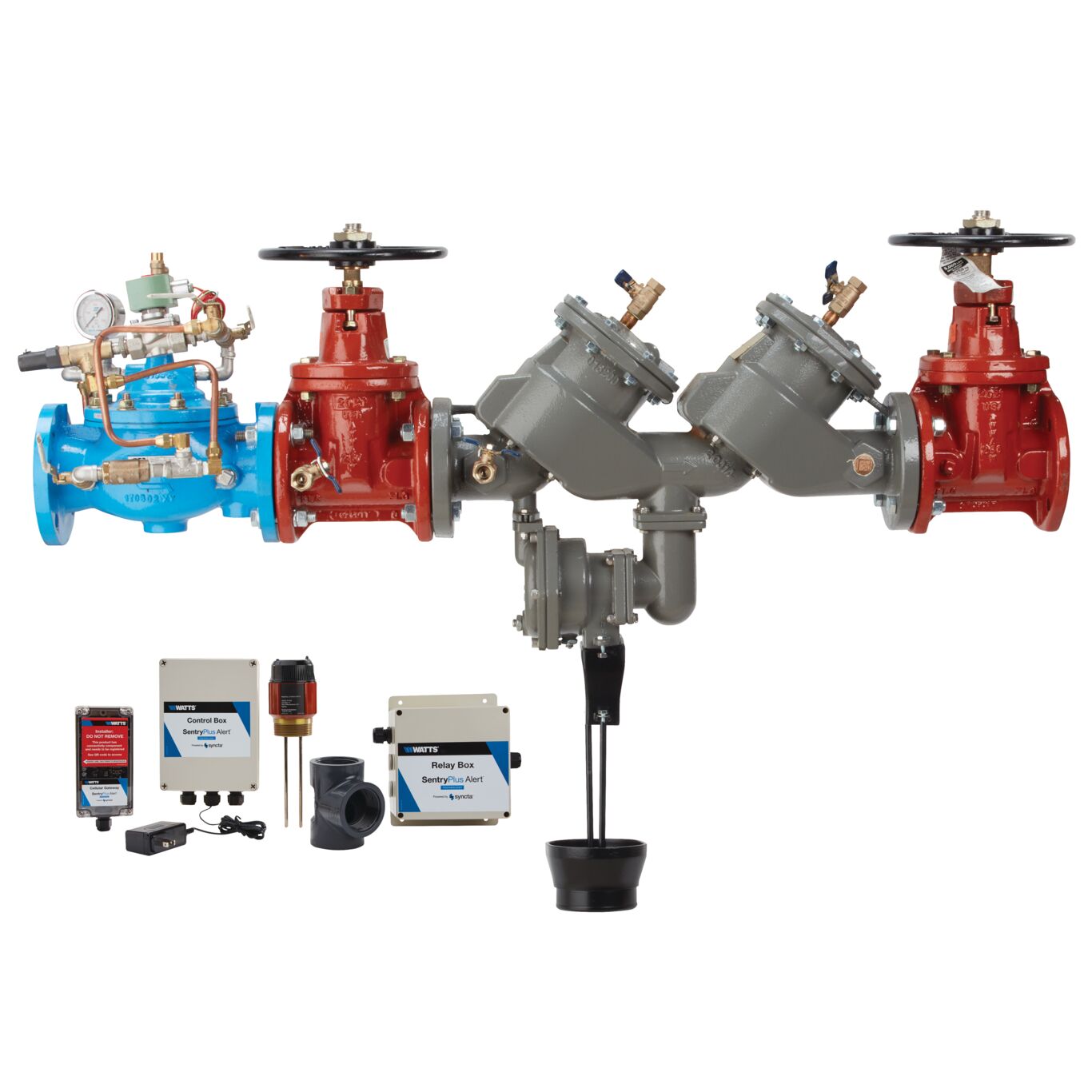

8 IN Lead Free RPZ Backflow Preventer Assy, NRS Shutoffs, SS RV Seat, SentryPlus Alert Flood Prevention System and Auto Shutoff ACV, ArmorTek Coating

This 8 inch lead free MasterSeries(R) reduced pressure zone backflow preventer assembly with SentryPlus Alert(R) technology with automatic shutoff ACV for flood detection and prevention is designed to prevent the reverse flow of contaminated water from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements, as well as provide continuous monitoring, multi-channel alerts, and automatic shutoff capability in the event of a possible flood condition. SentryPlus Alert utilizes the Watts LFF113RFP ACV as an automatic shutoff valve in the event of a potential flood condition. The assembly uses domestic NRS shutoffs. The ductile iron body is fused with patented 3-part ArmorTek(R) epoxy coating for advanced corrosion resistance. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Features

  • LF860 Lead Free RPZ with stainless steel relief valve seat and stainless-steel check components
  • SentryPlus Alert Flood Monitoring and Alert System
  • LFF113RFP ACV offers flood prevention
  • Multi-channel alert capabilities
  • Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Ductile Iron
Body Pattern Inline
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 643925223446
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 8 IN
Inlet Connection Size-Metric 203 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Non Rising Stem Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Non Rising Stem Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number 0113164
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF860 Large
Strainer No
Technologies Does Not Apply To Product
Tradename MasterSeries(R)
