188A 1 1/4

Part of the 188A Series

Ordering Code: 0340973

UPC: 098268209822

Lead Free: NO

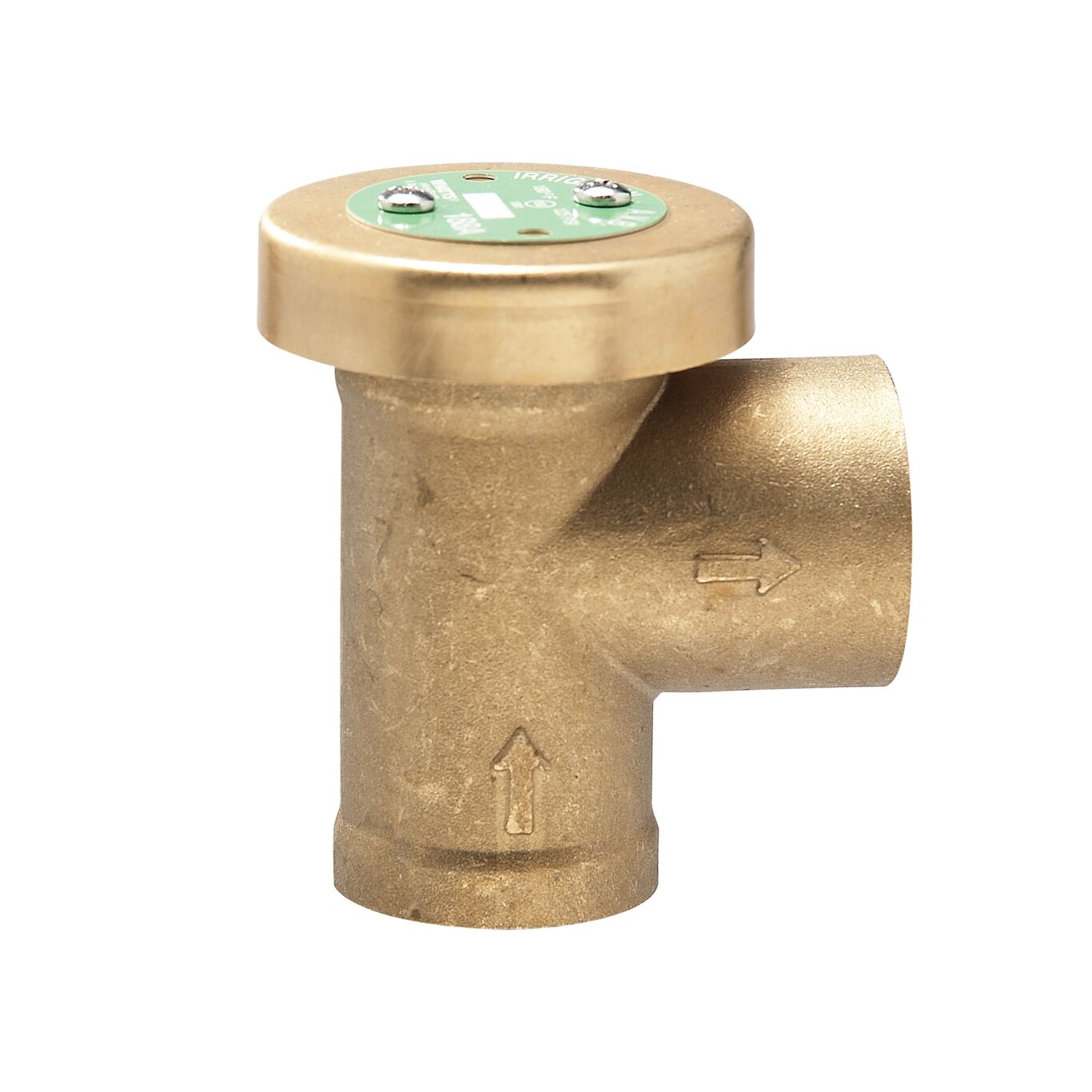

1 1/4 In Brass Anti-Siphon Irrigation Vacuum Breaker

This 1 1/4 IN series 188A anti-siphon vacuum breaker for irrigation systems prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of brass body construction with bronze internal trim, chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. It is ideal for low flow non-continuous pressure health hazard installations such as on residential irrigation systems. Maximum pressure is 125 psi (8.6 bar).

Product Features

  • Brass body
  • Female NPT inlet and outlet
  • Easy to install for contractors or homeowners
  • Irrigation
Backflow Preventer Type Vacuum Breaker
Body Finish Brass
Body Material Brass
Brand Name Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/4 IN
Inlet Connection Size-Metric 32 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 8.60
Maximum Working Pressure-PSI 125
Meter Type No Meter
Model Number 188A 1 1/4
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0340973
Polymer Coating No
Pressure Operation Non Continuous
Protection Type Backsiphonage
Series 188A
Strainer No
Type Kit
