800M4-FR-SH 1

Part of the 800M4FR Series

Ordering Code: 0388122

UPC: 098268876451

Lead Free: NO

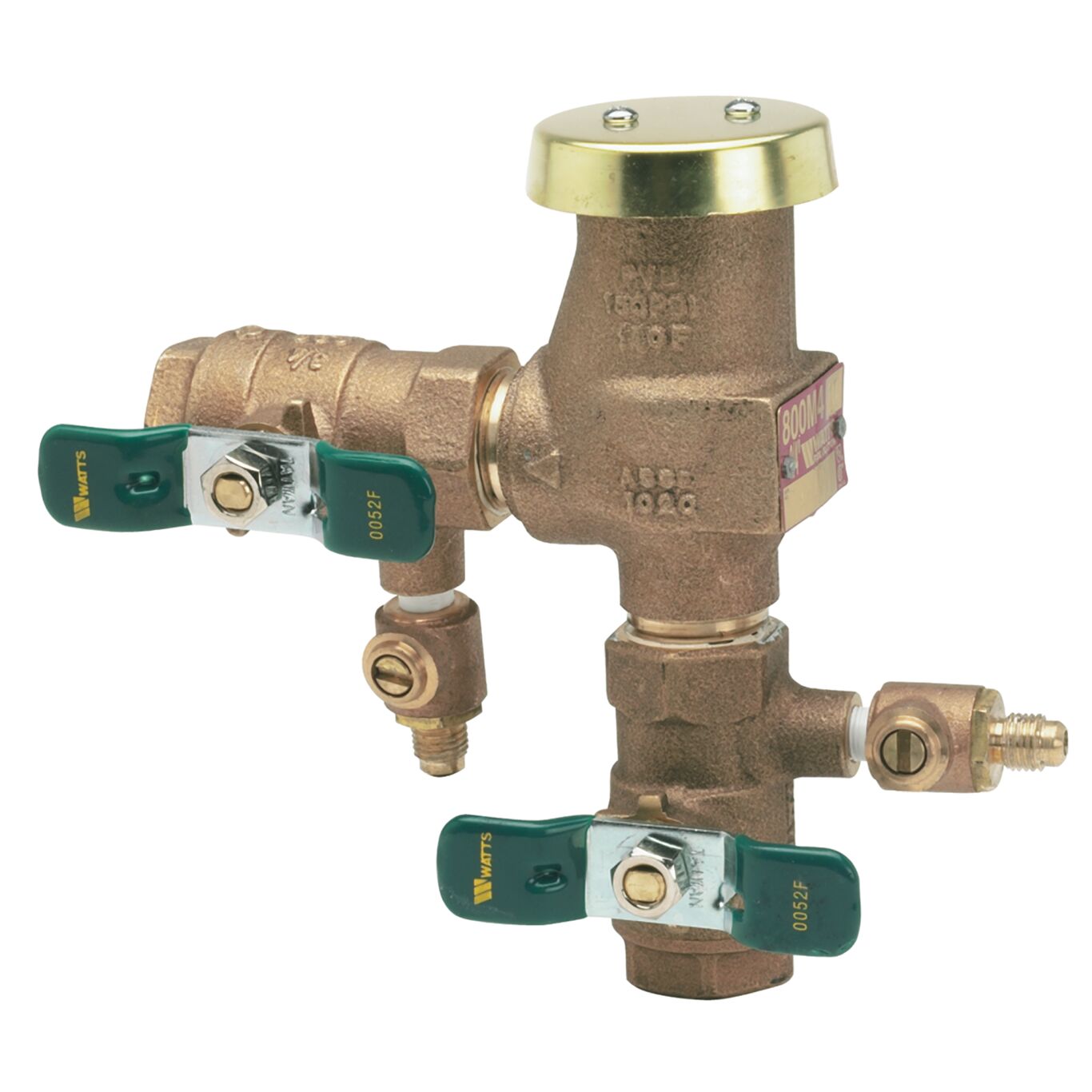

1 IN Bronze Freeze Resistant Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoff, Stainless Steel Handles

  • Bronze body for durability
  • Unique built-in relief valve relieves pressure caused by ice formation
  • Female NPT inlet and outlet with quarter turn shutoffs
  • Stainless handles
Specifications
Backflow Preventer Type Vacuum Breaker
Body Finish Cast Bronze
Body Material Bronze
Body Pattern Angle
Brand Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 098268876451
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0388122
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material Plastic
Series 800M4FR
Strainer No
Technologies Does Not Apply To Product
