800M4FR 1 Watts

Part of the 800M4FR Series

Ordering Code: 0388015

UPC: 098268597059

Lead Free Model Available

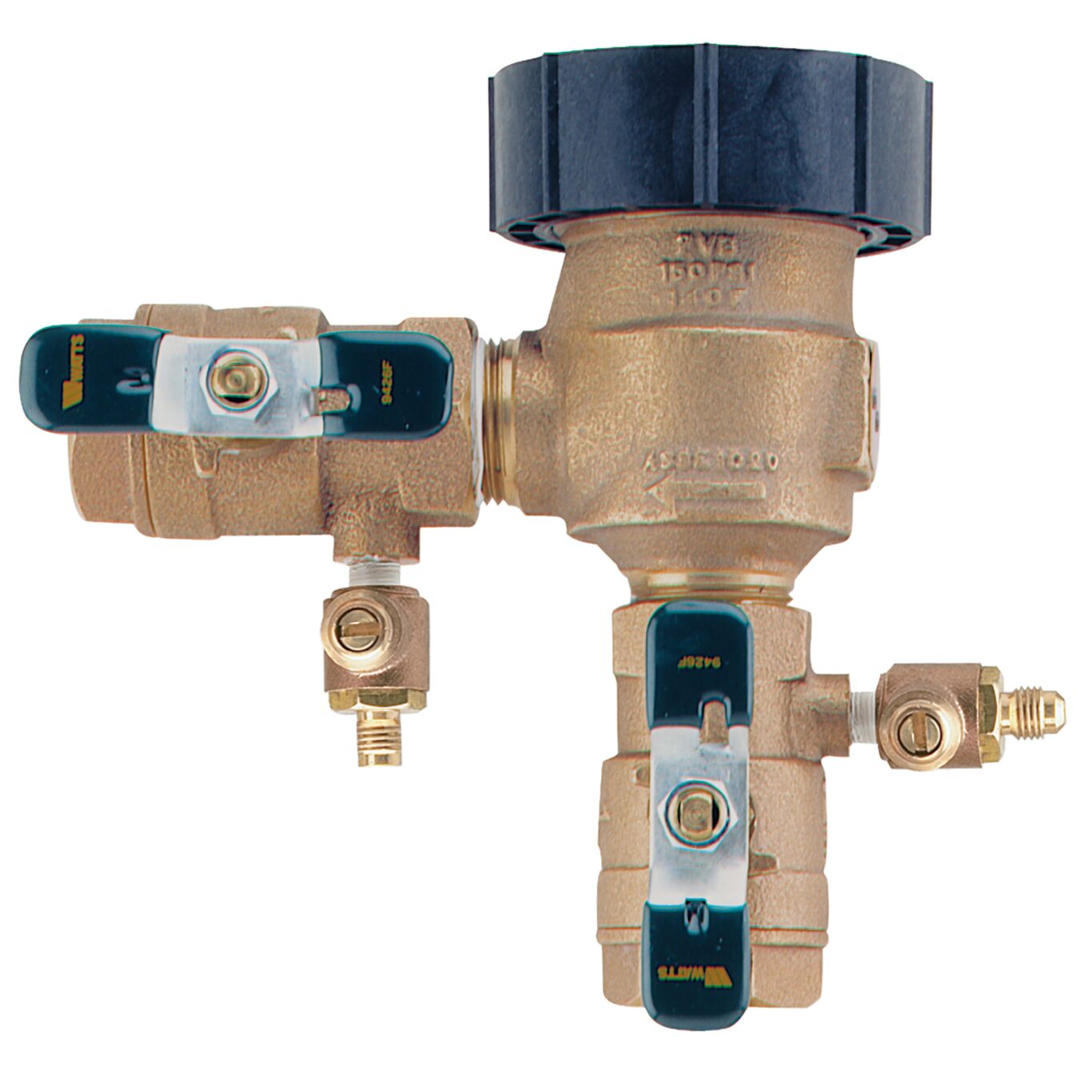

1 In Bronze Freeze Resistant Pressure Vacuum Breaker, Quarter Turn Shutoff, Tee Handles

This 1 bronze inch freeze resistant pressure vacuum breaker prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber O-ring seal, a lightweight plastic disc float, a built-in relief valve to protect the internal components and the body from freezing, tee handle shutoffs, and test cocks for winterization draining. It is ideal in continuous pressure health hazard applications where exposure to sudden freezing conditions such as on irrigation systems and industrial process water systems can occur. The maximum pressure is 150 PSI (10.3 BAR) and the minimum pressure is 15 PSI (55 kPa).

Product Features

  • Easy internal access
  • Female NPT inlet and outlet with quarter turn shutoffs
  • Unique built-in relief valve relieves pressure caused by ice formation
  • Bronze body for durability
Specifications
Backflow Preventer Type Vacuum Breaker
Body Finish Cast Bronze
Body Material Bronze
Body Pattern Angle
BrandName Watts
Bypass No
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
GDS Status Registered
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree NO
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber 800M4FR 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0388015
Polymer Coating No
Pressure Operation Continuous
Protection Type Backsiphonage
Seat Material Engineered Plastic
Series 800M4FR
Strainer No
