LF008-PC-QT-SC 1

Part of the LF008PCQT Series

Ordering Code: 0792030

UPC: 098268434132

Lead Free: YES

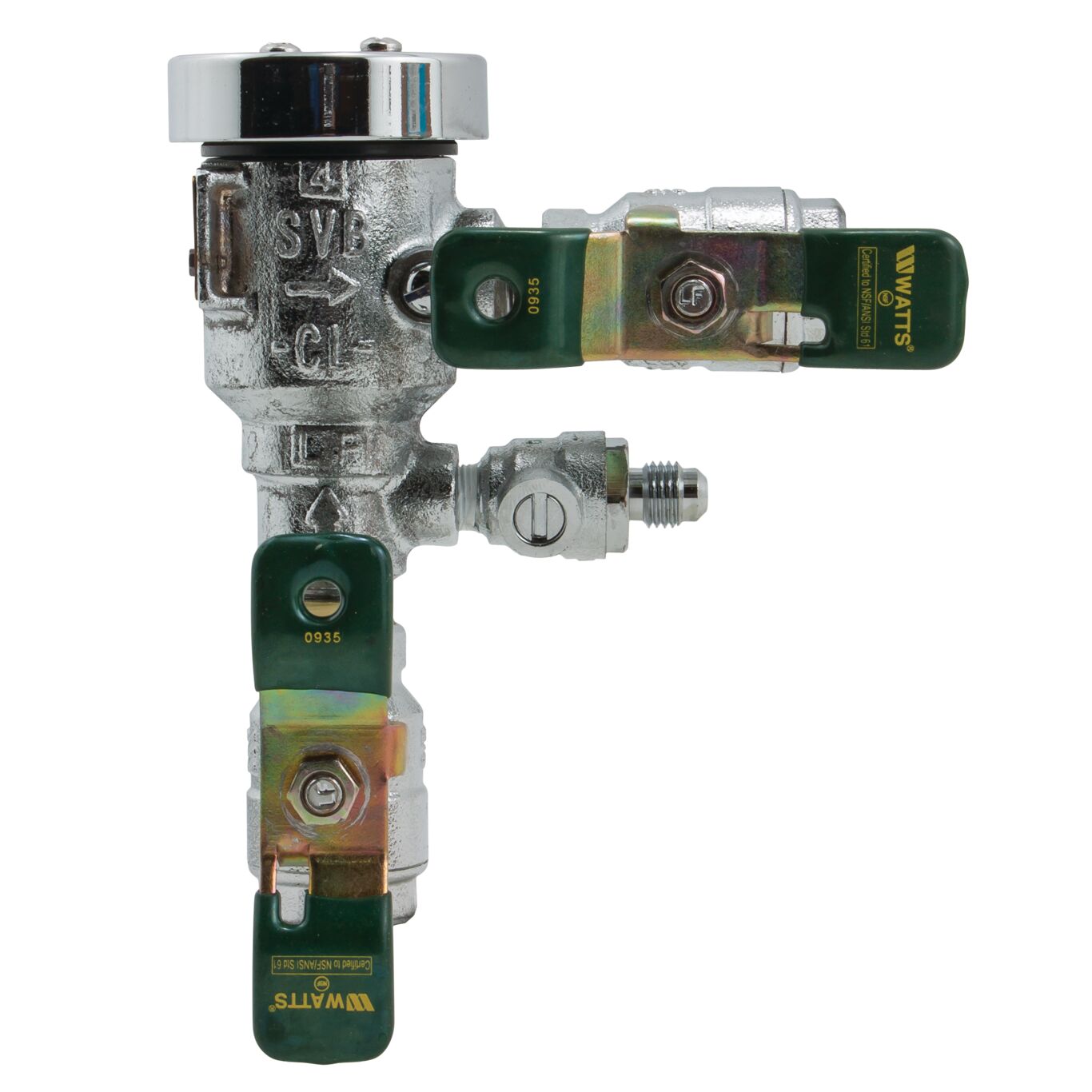

1 In Lead Free Spill-Resistant Anti-Siphon Vacuum Breaker, Quarter Turn Shutoff, Polymer Coating, Satin Chrome Finish

This 1 inch lead free anti-siphon, spill resistant, vacuum breaker prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage on indoor point-of-use applications. It consists of a lead free body construction with satin chrome finish, thermoplastic check and float assembly valve, stainless steel springs, tee handles, and a molded diaphragm separating the air inlet from the potable water supply to prevent spillage. It is ideal for indoor use on machines or equipment in general plumbing applications. Maximum working pressure is 150 PSI (10.34 BAR). Minimum pressure is 8 PSI (0.55 BAR).

Product Features

  • Satin chrome finish
  • Health hazard applications
  • Spill resistant
  • Lead free body construction
Specifications
Backflow Preventer Type Vacuum Breaker
Body Finish Satin Chrome
Body Material Lead Free Bronze
Body Pattern Angle
BrandName Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 10.30
Maximum Working Pressure-PSI 150
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF008-PC-QT-SC 1
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0792030
Polymer Coating Yes
Pressure Operation Continuous
Protection Type Backsiphonage
Series LF008PCQT
Strainer No
