LFN388-C 1/4

Part of the LFN388 Series

Ordering Code: 0792061

UPC: 098268434484

Lead Free: YES

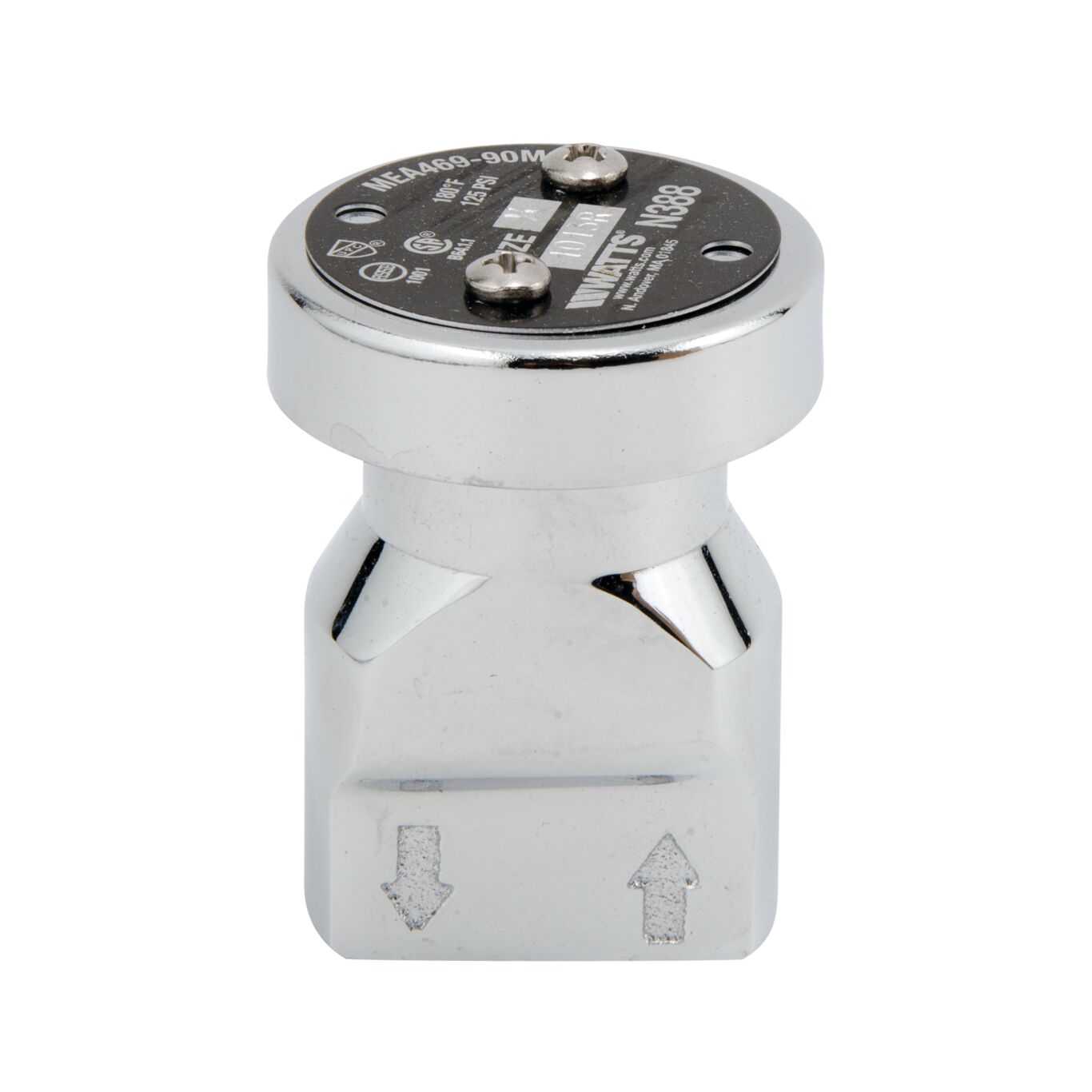

1/4 In Lead Free Atmospheric Vacuum Breaker, Bottom Inlet And Outlet, Polished Chrome Finish

This 1/4 inch lead free anti-siphon hot or cold water vacuum breaker prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of chrome plated lead free construction, chemical resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment.

Product Features

  • Chrome finish
  • Lead free construction
  • Female NPT inlet and outlet
  • Hot or cold water
Backflow Preventer Type Vacuum Breaker
Body Finish Polished Chrome
Body Material Lead Free Brass
Body Pattern Does Not Apply To Product
Brand Name Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1/4 IN
Inlet Connection Size-Metric 8 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 8.60
Maximum Working Pressure-PSI 125
Meter Type No Meter
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Model Number LFN388-C 1/4
Outlet Connection Size 1/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type NPT
Part Number 0792061
Polymer Coating No
Pressure Operation Non Continuous
Protection Type Backsiphonage
Seat Material Silicone
Series LFN388
Strainer No
