CV
Discontinued
Tee Pattern Bronze Check Valves
CV
Discontinued
Tee Pattern Bronze Check Valves

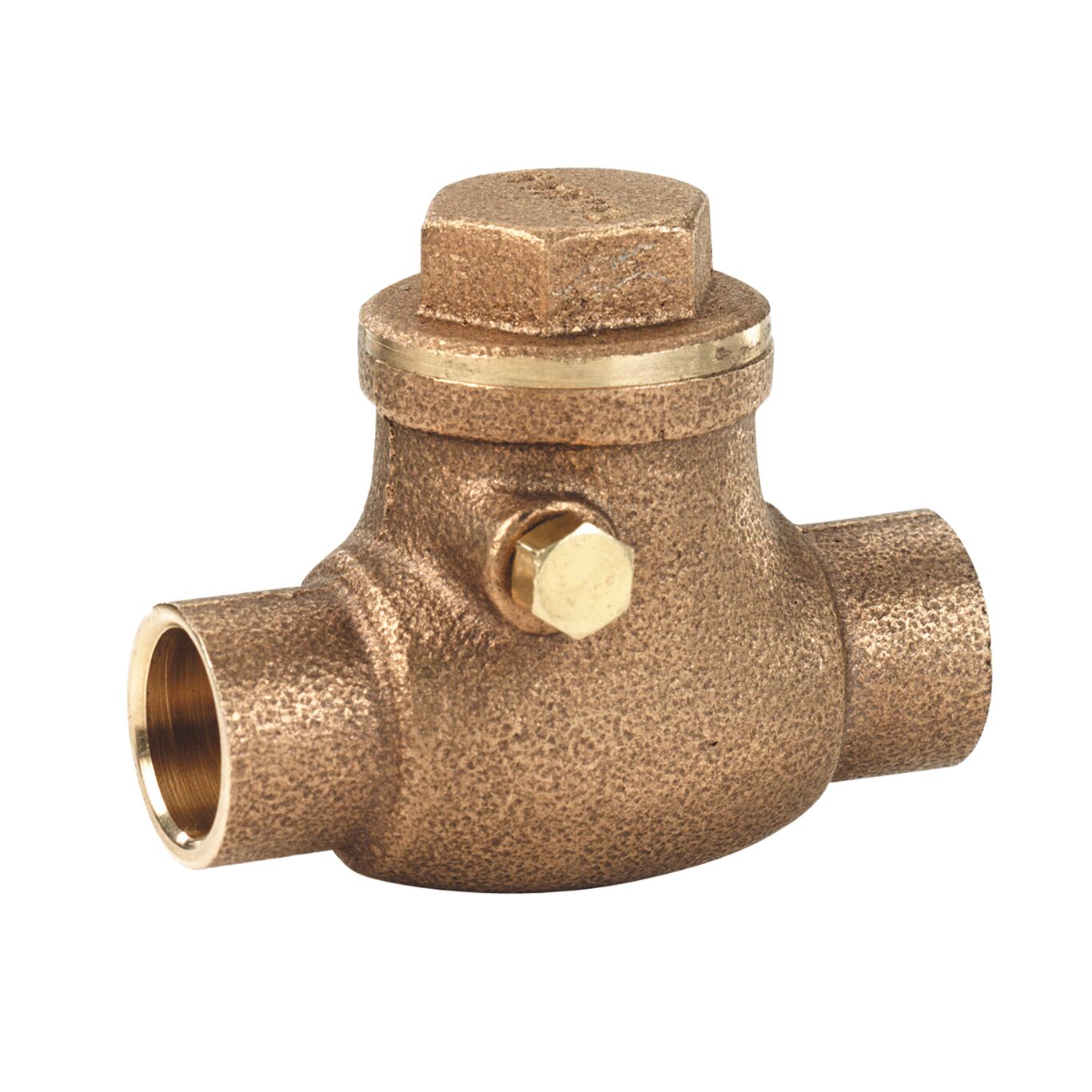

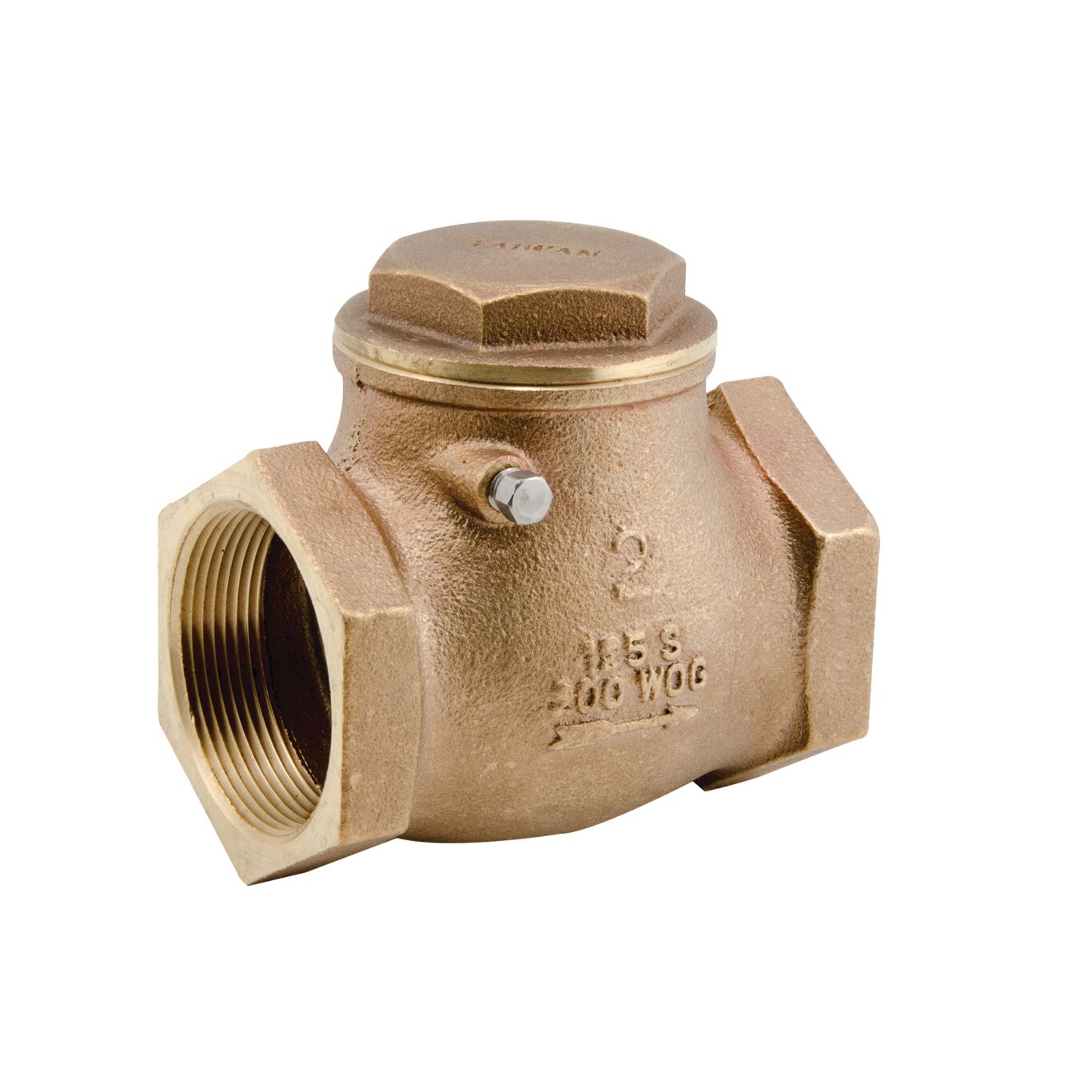

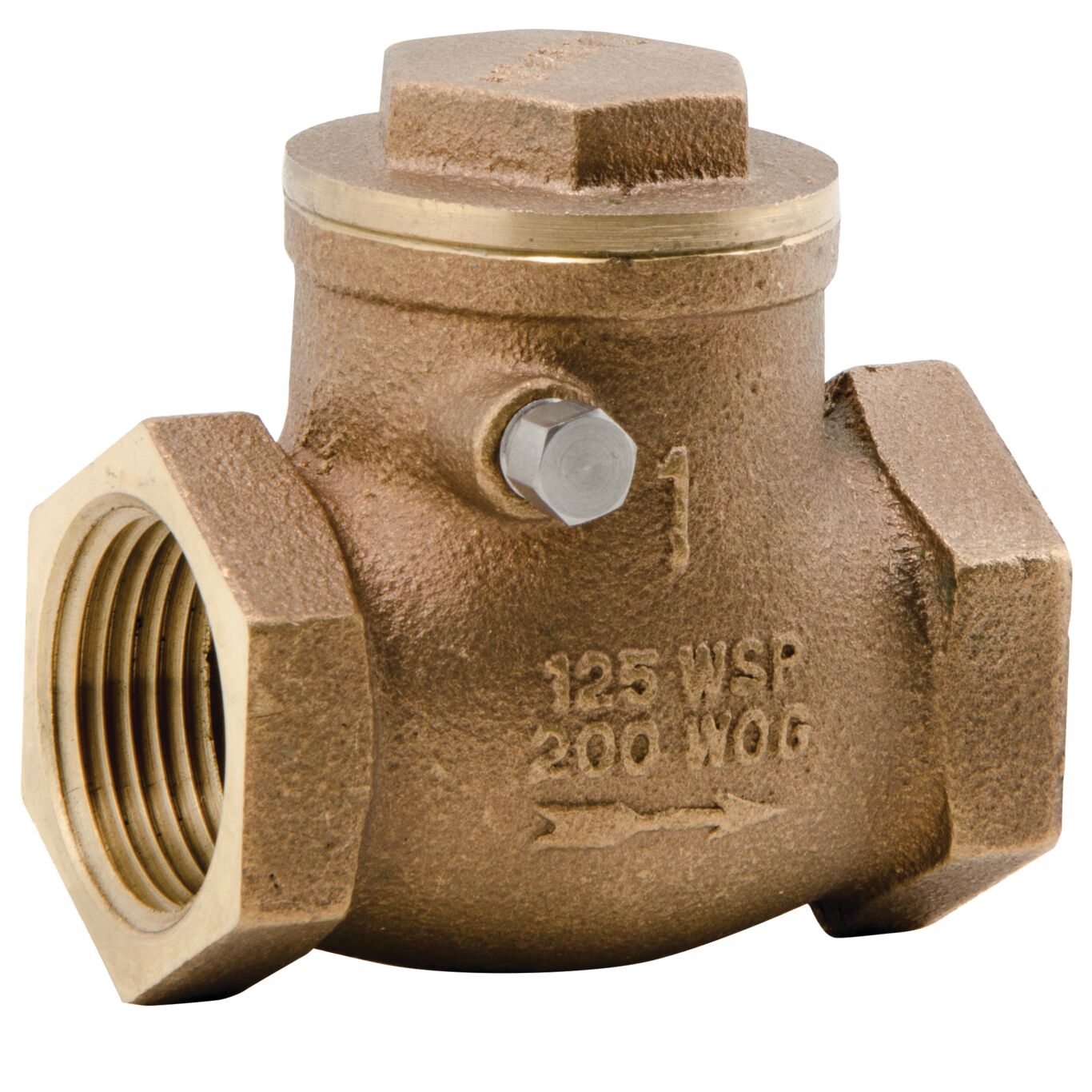

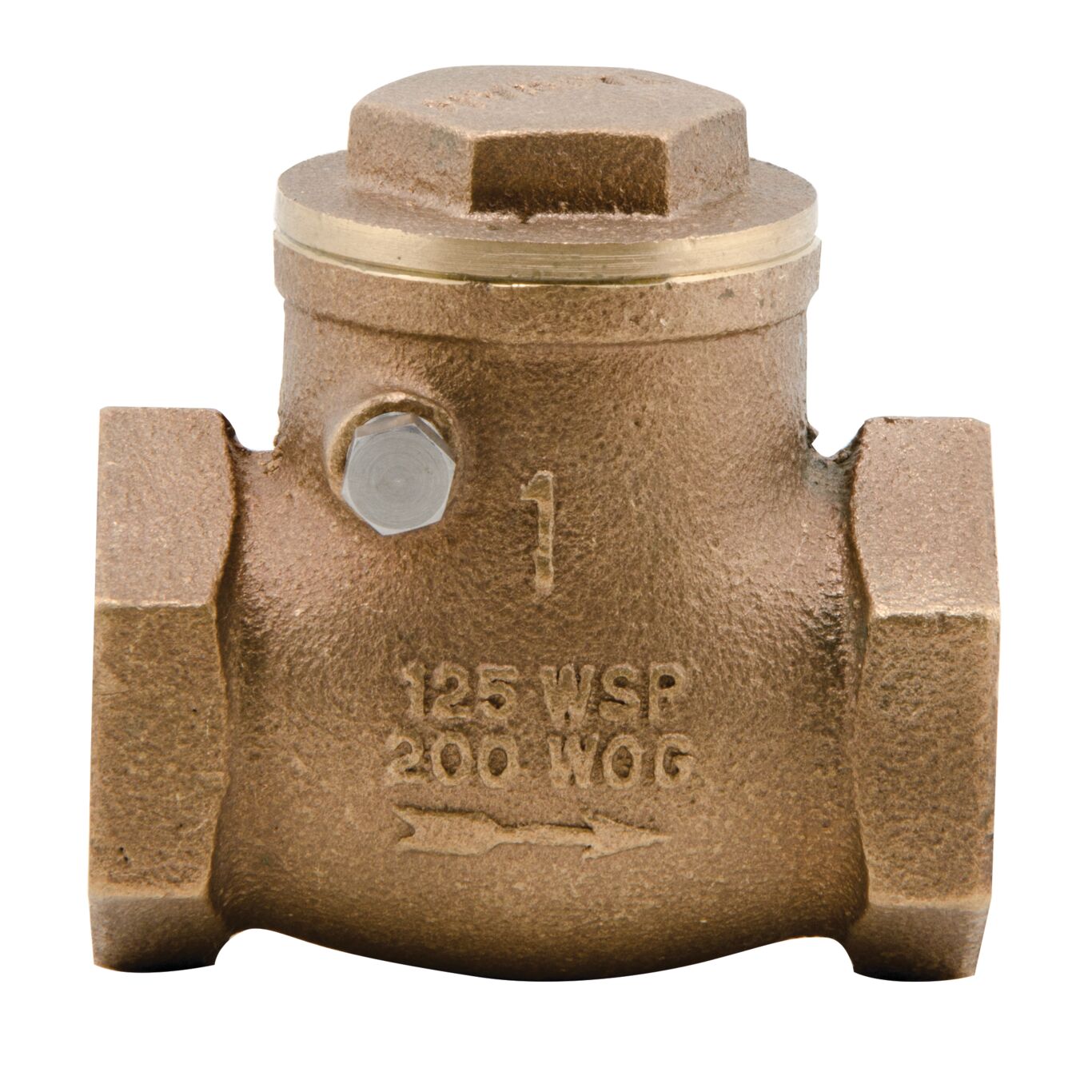

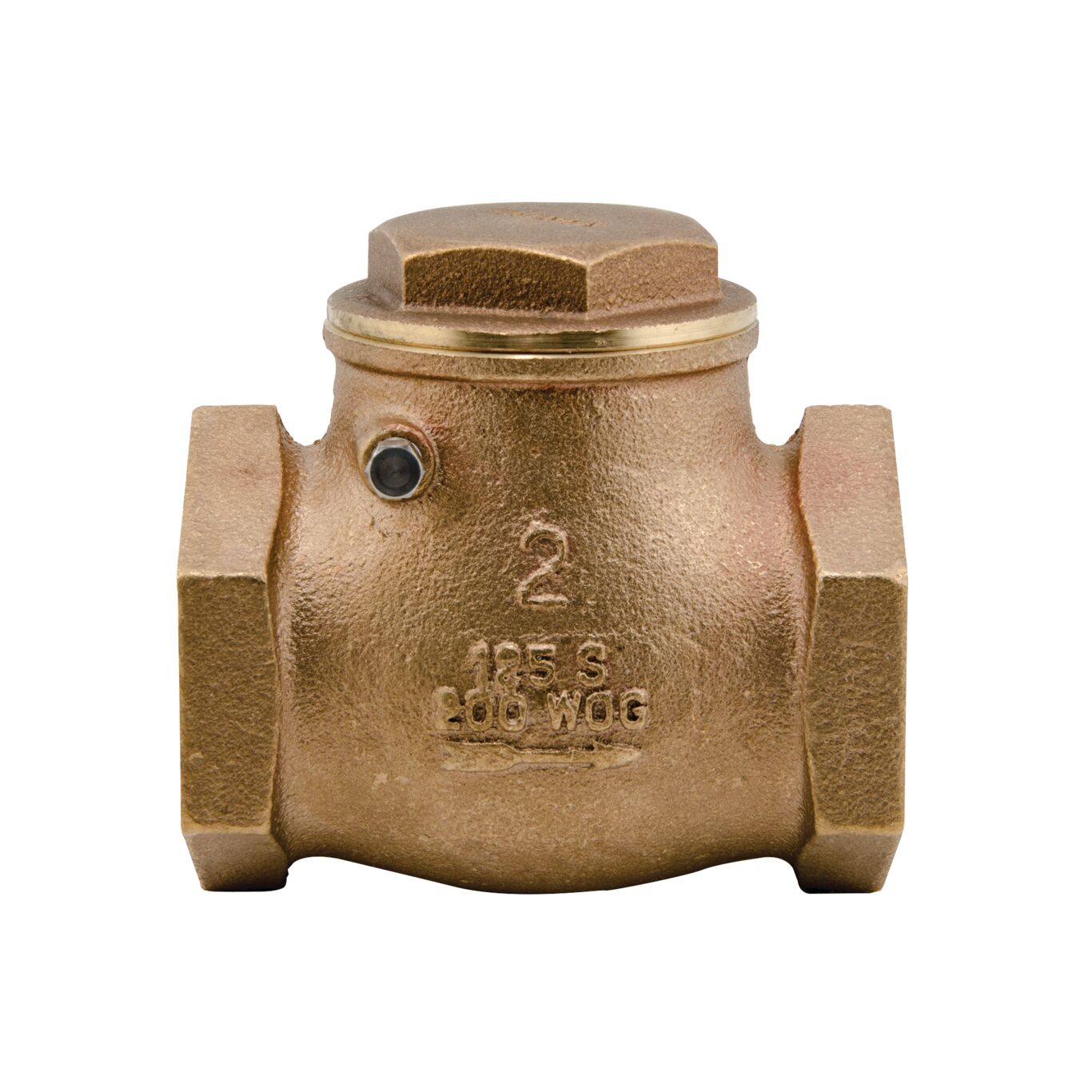

Watts Series CV, CVS Bronze Tee Pattern Swing Check Valves are used in commercial and industrial applications to prevent reverse flow. They feature a bronze body tee pattern design, bronze cap, bronze disc, and brass hanger pin. Model CV is available in sizes 3/8 to 4 in. (10 to 100) with IPS female threaded end connections. Model CVS is available in sizes 1/2 to 3 in. (15 to 80) with solder end connections. Series CV, CVS provides low pressure drop and automatic closure when fluid flow is stopped. Maximum pressure is 200psi (13.8 bar) WOG (non-shock); 125psi (8.6 bar) WSP for sizes 3/8 in. to 2 in (10 to 50); 300psi (20.7 bar) WOG (non-shock); and 150psi (10.3 bar) WSP for sizes 2-1/2 in. to 4 in. (65 to 100).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific CV
