06.0-105MAT-N
×
![]()
Part of the 105MAT Series
Ordering Code: M6741049
UPC: 643925306705
Lead Free: NO

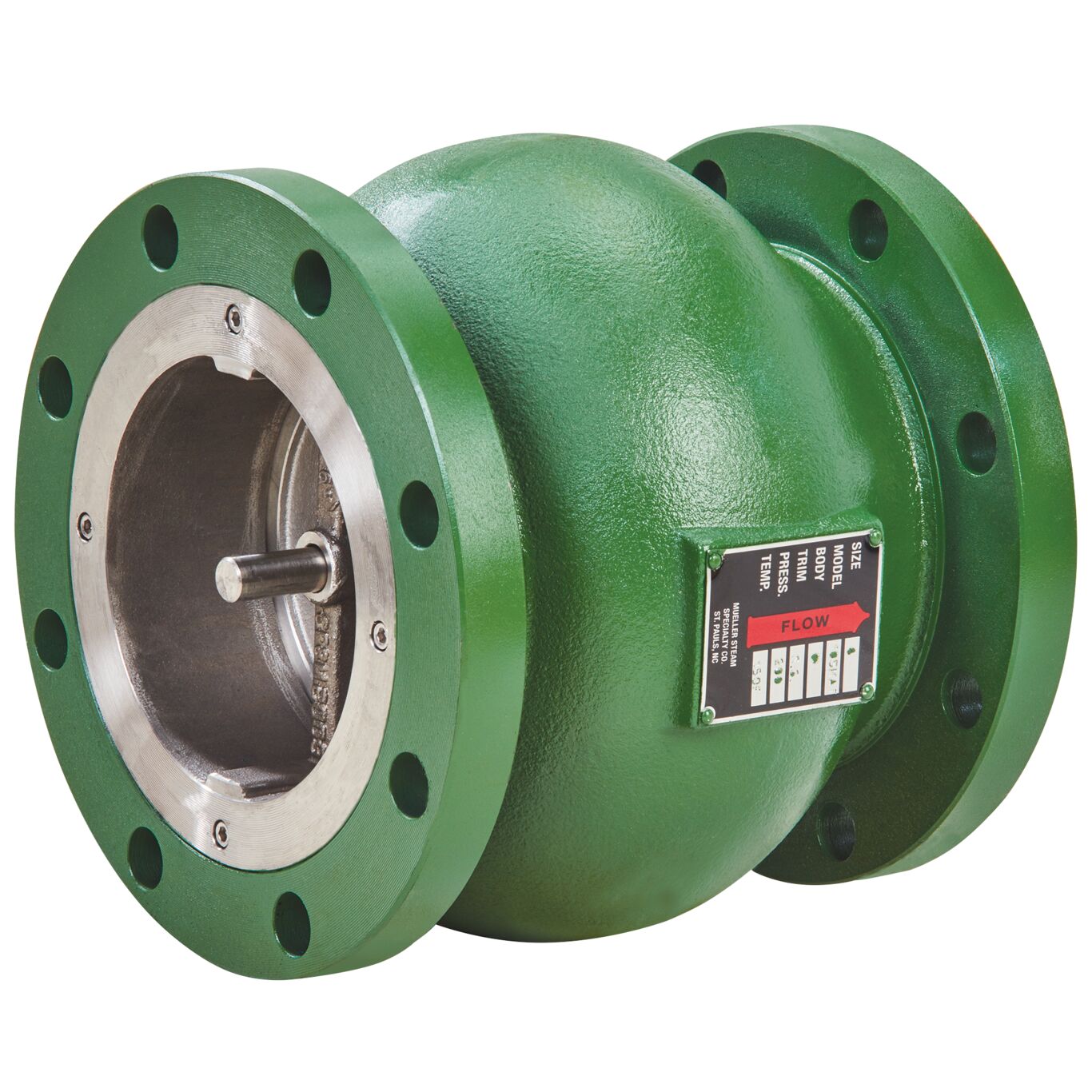

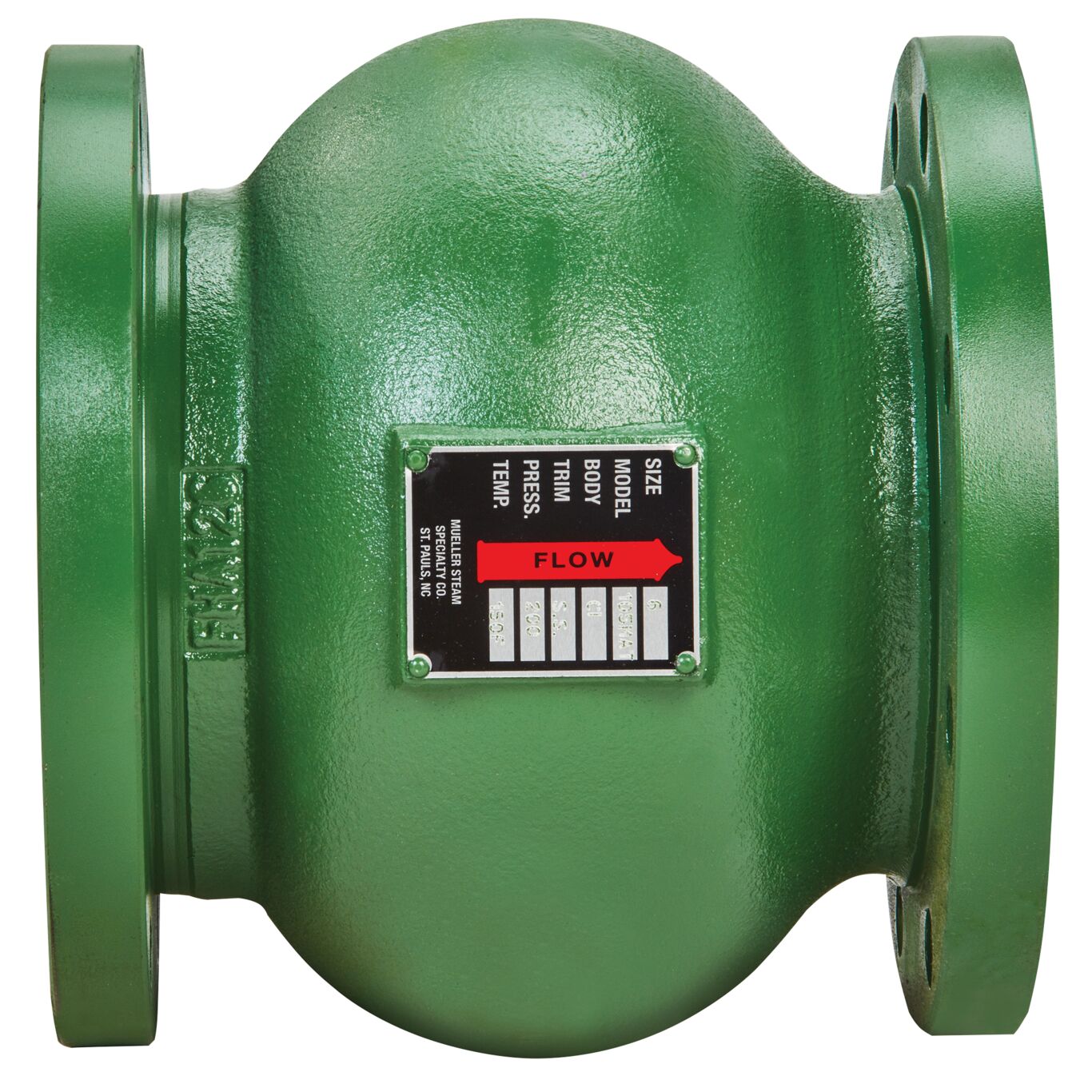

6 Inch Silent Check, Cast Iron, Globe, Class 125 Flanged, SS Trim, Lead Free, Imported
This 6 IN silent check valve is used to prevent back pressure and the water hammer that results from reverse flow. The guided disc is spring-loaded to ensure closure prior to damaging reverse pressure. This globe style silent check valve allows for greater flow than a wafer design. It is 125 flanged with stainless steel trim.
Features
- Globe style
- Cast iron body
- Class 125 flanged
- Stainless steel trim
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Brand | Mueller Steam Specialty |
| Buy American Act Compliant | NO |
| Class Rating | 125 |
| Disc Material | Cast Stainless Steel |
| Disc Type | Silent |
| EAN | 643925306705 |
| Inlet Connection Size | 6 IN |
| Inlet Connection Size-Metric | 150 MM |
| Inlet Connection Type | Flanged Joint |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | NO |
| Maximum Operating Temperature-Celsius | 65.00 |
| Maximum Operating Temperature-Fahrenheit | 150 |
| Maximum Working Pressure-PSI | 200 |
| Minimum Temperature - Celsius | -28.00 |
| Minimum Temperature-Fahrenheit | -20 |
| Outlet Connection Size | 6 IN |
| Outlet Connection Type | Flanged Joint |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | M6741049 |
| Pressure-Temperature Rating | N/A |
| Pressure-Temperature Rating-BAR | N/A |
| Seat Material | Stainless Steel |
| Series | 105MAT |
