105MAT 2
×
![]()
Part of the 105MAT Series
Ordering Code: M6701288
UPC: 643925031324
Lead Free: YES

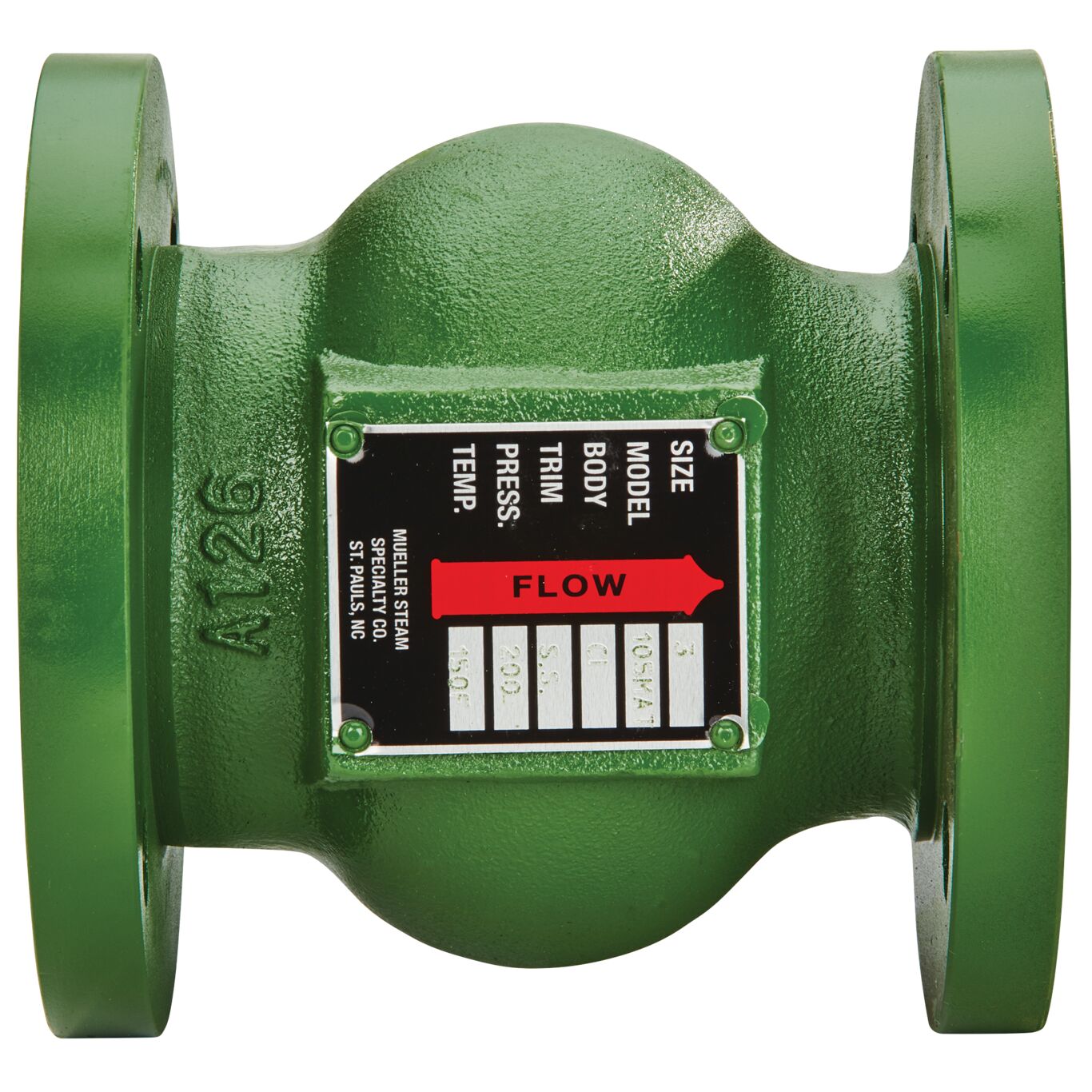

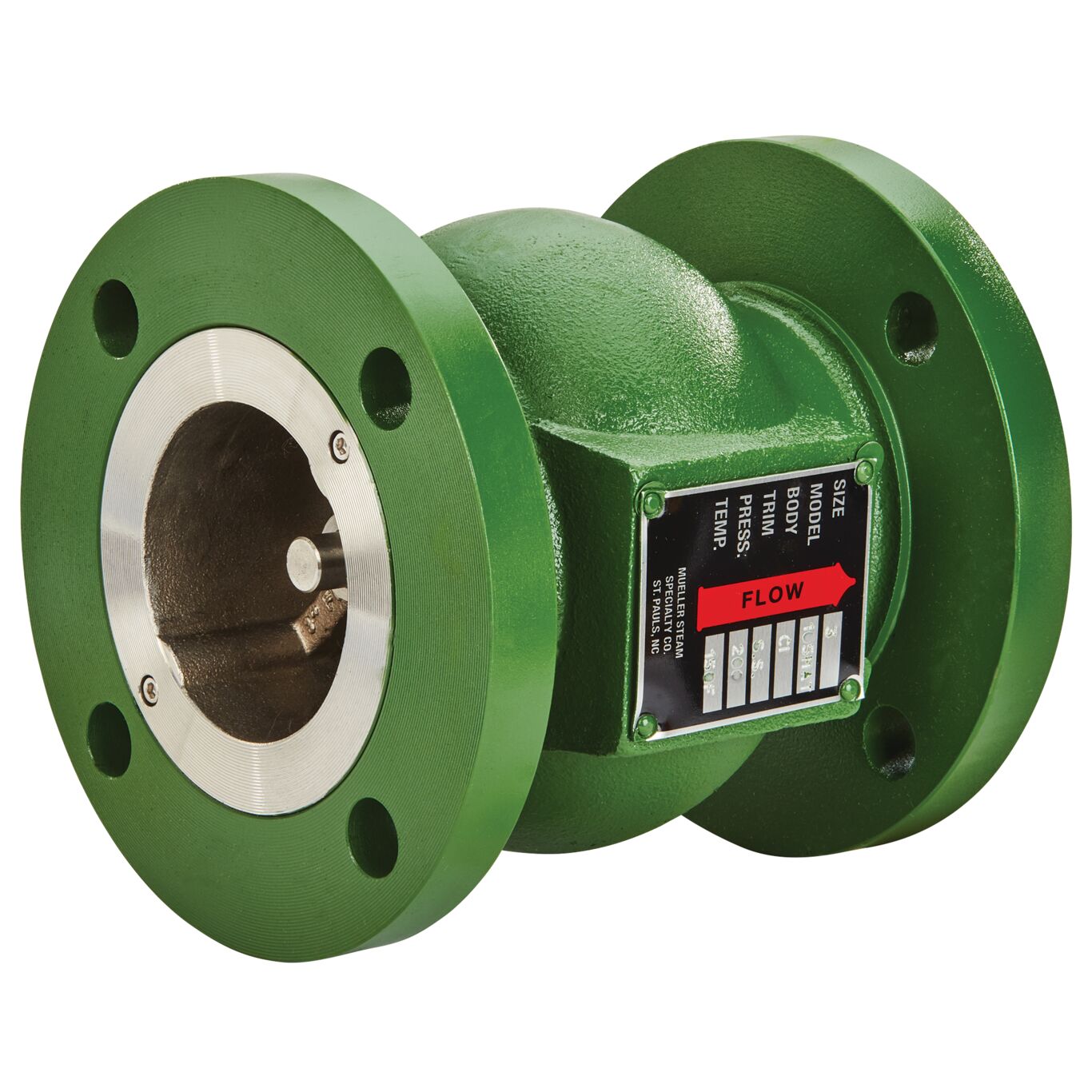

2 Inch Silent Check Valve, Cast Iron, Globe, 125 Flanged, SS Trim, Lead Free
This 2 IN silent check valve is used to prevent back pressure and the water hammer that results from reverse flow. The guided disc is spring-loaded to ensure closure prior to damaging reverse pressure. This globe style silent check valve allows for greater flow than a wafer design. It is class 125 flanged with stainless steel trim.
Features
- Spring closes the disc before flow reversal, preventing surge and water hammer
- Mating surfaces of the disc and seat are hand lapped for best possible sealing
- Disc begins to open at .5 psi
- Disc opens 1/3 IN per inch of line size, greater than similar competitive products, for enhanced flow
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Brand | Mueller Steam Specialty |
| Buy American Act Compliant | NO |
| Class Rating | 125 |
| Disc Material | 316 Stainless Steel |
| Disc Type | Center Guided Silent |
| EAN | 643925031324 |
| Inlet Connection Size | 2 IN |
| Inlet Connection Size-Metric | 51 MM |
| Inlet Connection Type | Flanged Joint |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | YES |
| Maximum Operating Temperature-Celsius | 65.50 |
| Maximum Operating Temperature-Fahrenheit | 150 |
| Maximum Working Pressure-PSI | 200 |
| Minimum Temperature - Celsius | -28.80 |
| Minimum Temperature-Fahrenheit | -20 |
| Outlet Connection Size | 2 IN |
| Outlet Connection Type | Flanged Joint |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | M6701288 |
| Pressure-Temperature Rating | 200 psi at 150 degree F |
| Pressure-Temperature Rating-BAR | 14 BAR at 38 degree C |
| Seat Material | 316 Stainless Steel |
| Series | 105MAT |
