BA114

Part of the BA Series

Ordering Code: 88005611

UPC: 098268160208

Lead Free: YES

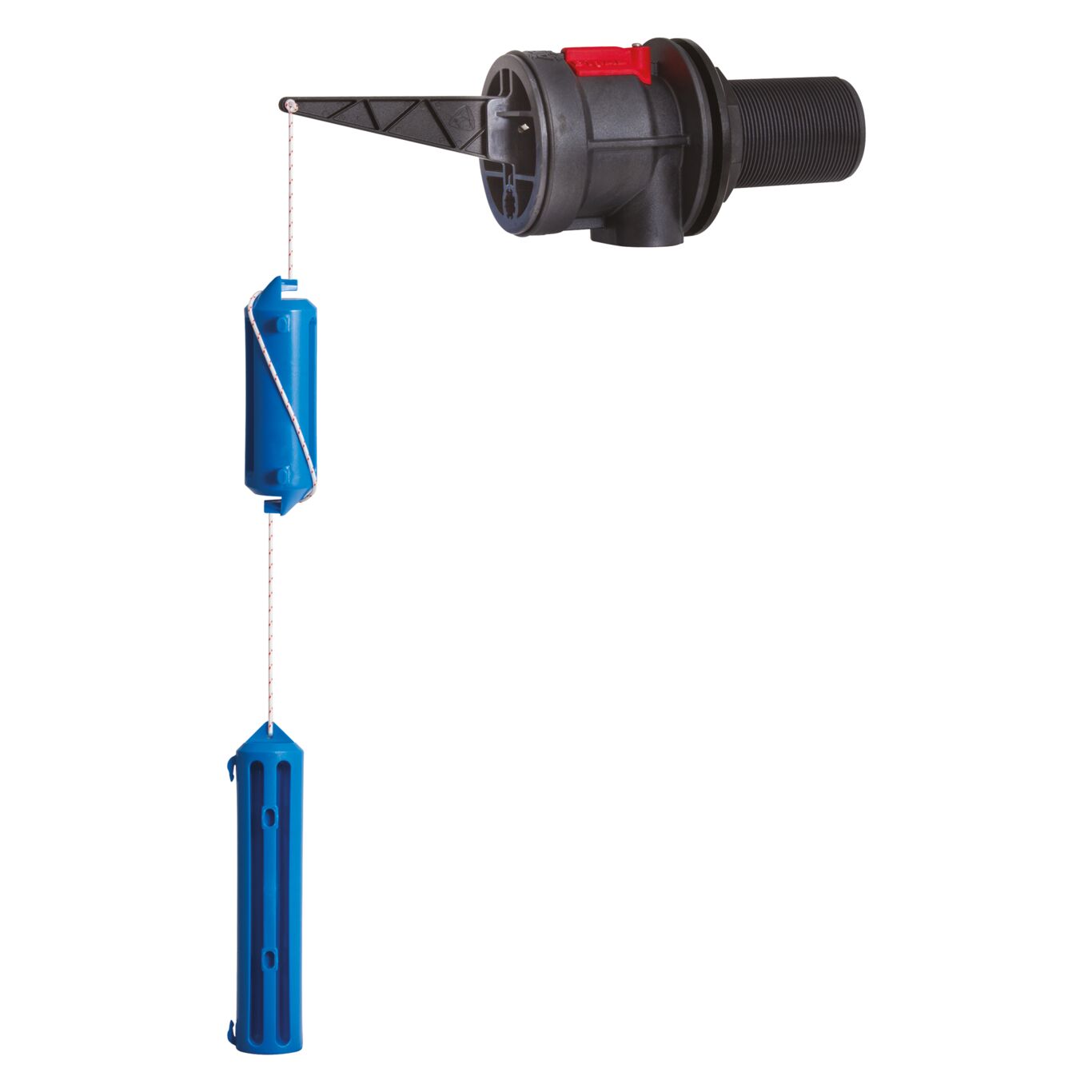

1 1/4 IN Black Plastic High Flow Dual Level Tank Valve

This 1 1/4 IN tank valve is made from polyphenylene sulfide and has a very large flow rate. It utilizes a differential dual weight system that reduces pump wear and saves electricity. This valve is diaphragm activated and has a steel pin that runs inside the pilot center which acts as a self cleaning mechanism which is unique to Apex valves.

Product Features

  • Diaphgram design
  • Valve is serviceable
  • Valve is made from polyphenylene sulfide
  • Valve runs at full flow until shut off
Specifications
Body Material Polyphenylene Sulfide
Brand Name Watts
Flow Specifications 9999
Inlet 1 Connection Size 1 1/4 IN
Inlet Pressure-PSI 2
Lead Free YES
Maximum Pressure-PSI 175
Maximum Temperature-Fahrenheit 140
Model Number BA114
Outlet Connection Size Does Not Apply To Product
Outlet Connection Type Does Not Apply To Product
Part Number 88005611
Series BA
Stem Length Does Not Apply To Product
Thread Connection No
