1000

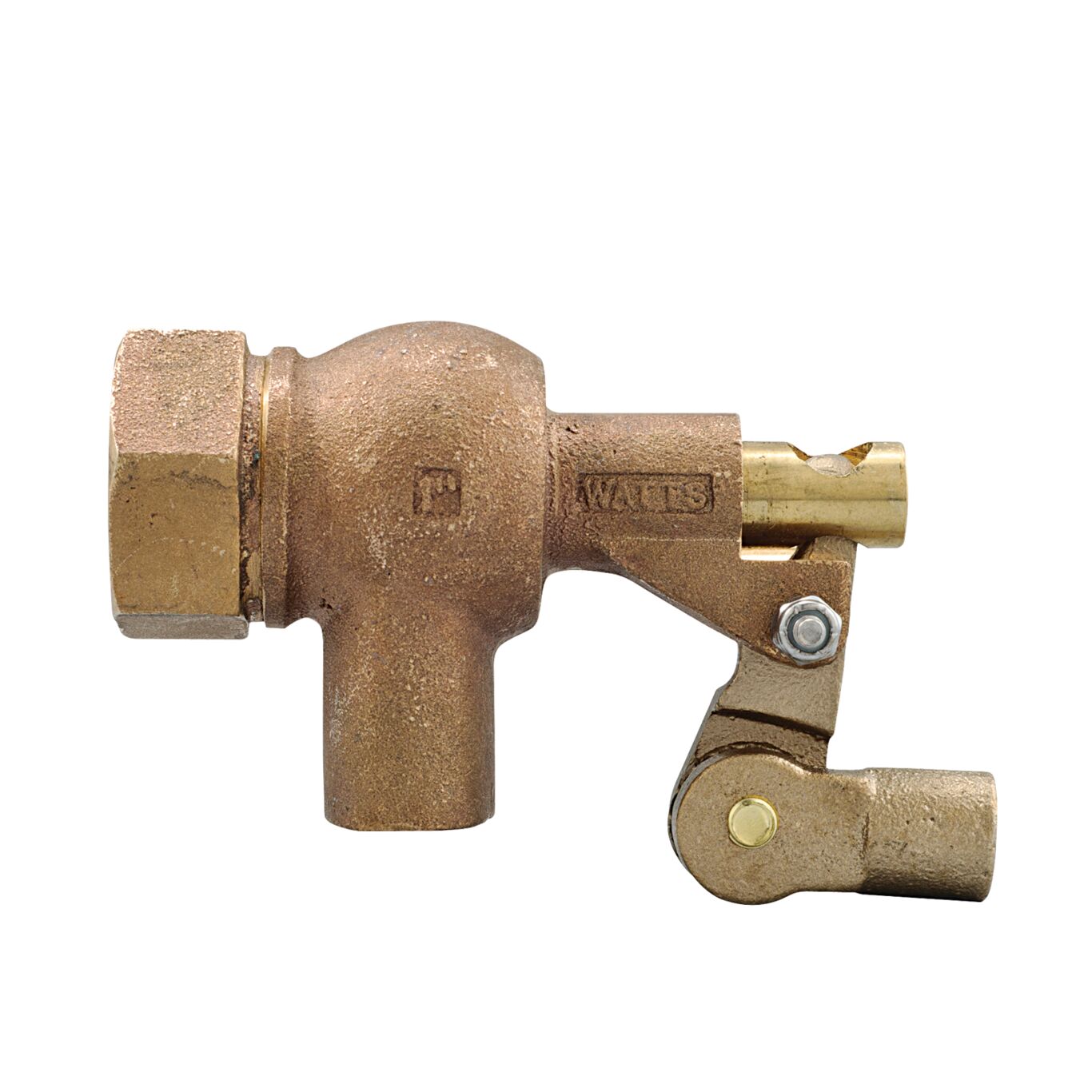

Heavy Duty Mechanical Float Valves
Series 1000 Heavy Duty Mechanical Float Valves are used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It has a bronze body construction with a 1 in. female NPT pipe threaded inlet connection and male straight-pipe threaded for locknut on the outlet side. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. This series is ideal for use in air conditioning, refrigeration, and irrigation systems. Maximum Pressure: 165psi (11.4 bar).
Features
- Pipe-threaded for pipe connections and straight-pipe threaded for locknut
- Machined flange for support against tank wall
- All bronze bodies
- Serrated arms for quick easy adjustment of water level
- No jam single lever action
- High tensile manganese bronze long and short arms
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 1000
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
ASSE | CSA | FM Approvals | NSF |
UL | ULC | USC | WQA |
