500-12

Part of the 500 Series

Ordering Code: 0780004

UPC: 098268090871

Lead Free: Not In Scope

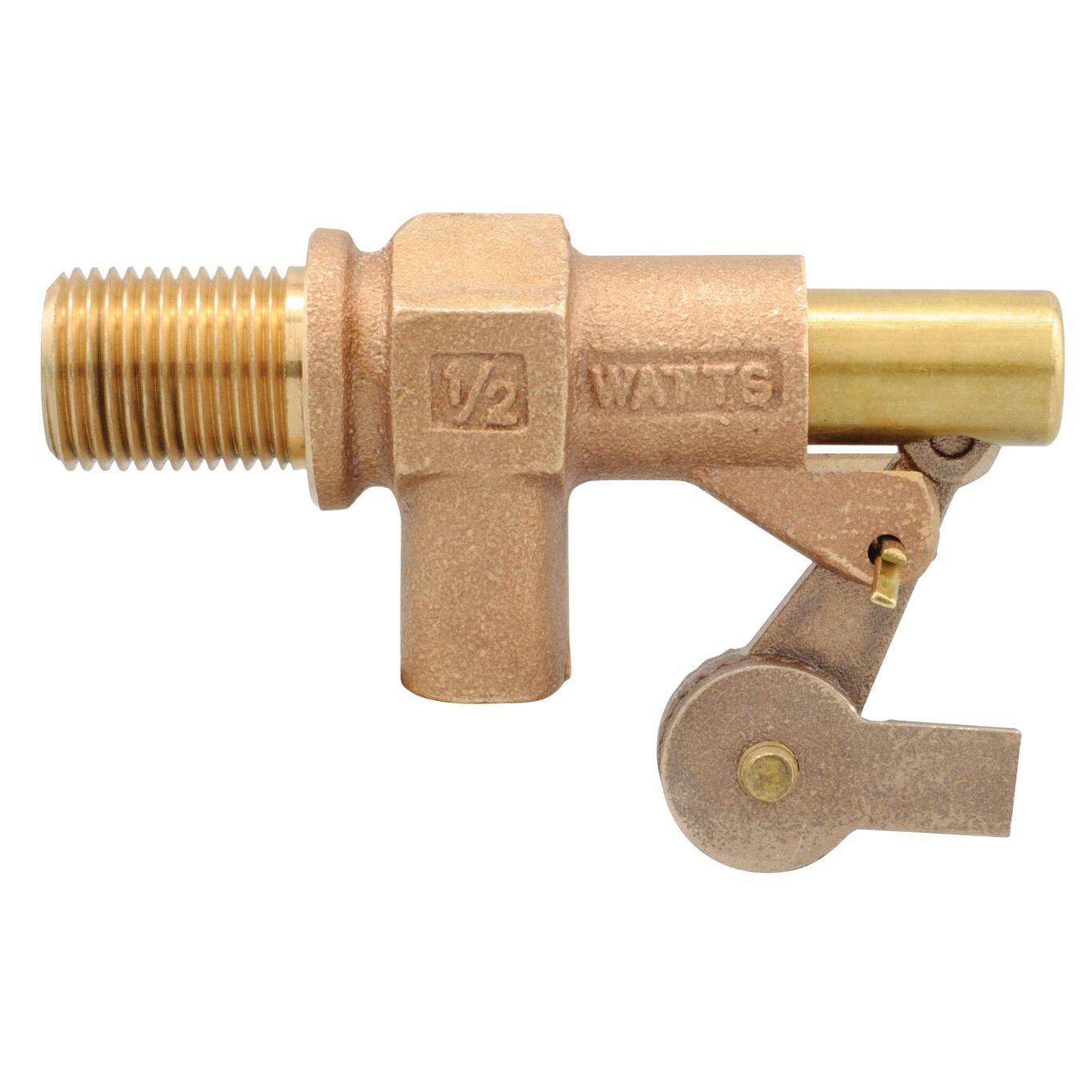

1/2 In Bronze Heavy Duty Float Valve, Locknut, Gasket

This 1/2 inch heavy duty mechanical float valve is used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It is ideal for use in air conditioning, refrigeration, and irrigation systems. This valve has a bronze body with a machine flange on the inlet side with 1/2 inch female NPT pipe threaded inlet connection and male straight-pipe threaded for locknut outlet connection. Includes locknut and gasket for bulkhead mount. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. The maximum pressure is 165 psi (11.4 bar).

Product Features

  • Machined flange
  • Bronze body
  • Serrated arms
  • Replaceable seals
Specifications
Body Material Bronze
Brand Name Watts
EANUCCCode 098268090871
Flow Specifications 20 GPM at 50 PSI to 31 GPM at 100 PSI
Inlet Pressure-PSI 50
Lead Free Not In Scope
Maximum Pressure-PSI 165
Maximum Temperature-Fahrenheit 180
Outlet Connection Size 1/2 IN
Outlet Connection Type Male Threaded
Outlet Thread Type NPT
Part Number 0780004
Series 500
