276H300
×
![]()
Part of the 276H300 Series
Ordering Code: 0069721
UPC: 098268007947
Lead Free: Not In Scope

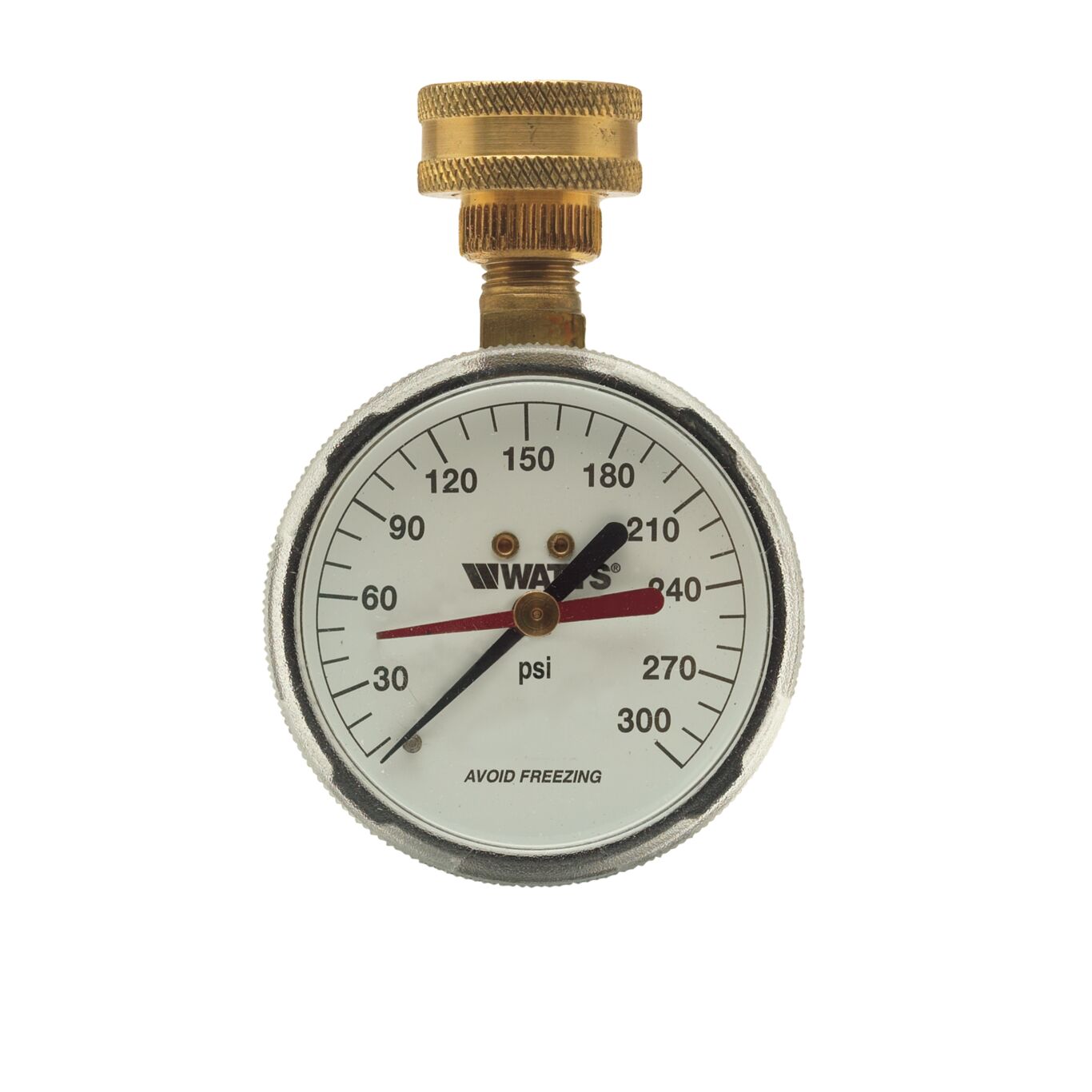

2 1/2 In Hose Connection Pressure Gauge
This hose connection gauge is used to test water supply pressures within a distribution system. Its red indicator hand holds at the highest reading registered for detection of thermal expansion pressure surges. It features a black enamel steel case, Kostil polymer window, 3/4 inch HT hose connection and copper alloy bourdon tube sensing element. Accuracy is ASME, Type B. Available in 0 to 300 psi (21 bar) pressure rating scale.
Features
- Copper alloy Bourdon sensing element
- Kostil polymer window
- 3/4 inch (20 mm) H.T. hose connection
- Black enamel steel case
| Specifications | |
|---|---|
| Accuracy | ASME Type B |
| Air Valve | No |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Finish | Black Enamel |
| Case Material | Steel |
| Dial Size | 2 1/2 IN |
| EAN | 098268007947 |
| Entry Style | Top |
| GDS Status | Registered |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | GHT |
| Lead Free | Not In Scope |
| Manual Shutoff | No |
| Maximum Operating Temperature-Fahrenheit | 140 |
| Minimum Temperature-Fahrenheit | 40 |
| Part Number | 0069721 |
| Pressure Scale | 0 to 30 PSI |
| Sensing Element | Yes |
| Sensing Fluid | No |
| Series | 276H300 |
| Temperature Range | 40 to 140 degrees F |
| Thermowell | No |
| VR Retaining Valve | No |
| Window Material | Kostil Polymer |
