IWTG-GAS-2-0-100
×
![]()
Part of the IWTG-GAS Series
Ordering Code: 0069782
UPC: 098268182866
Lead Free: NO

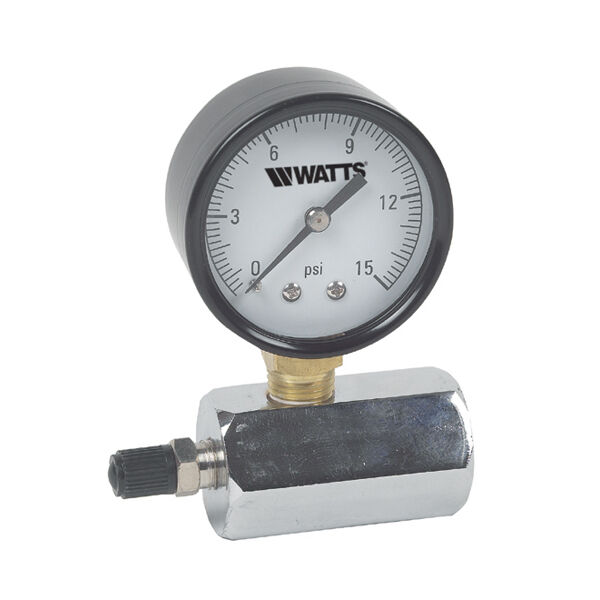

3/4 In Air Test Assembly Gauge
This air test assembly gauge is used in commercial, residential, and institutional HVAC applications. It consists of a 3/4 IN FPT chrome plated brass manifold, steel case, Kostil Polymer window, 3/4 IN FPT x Schrader type air valve with cap connection, and copper alloy Bourdon tube pressure element. Accuracy is ASME, Type B. Pressure rating scale is 0-100 psi.
Features
- Tin alloy welding
- Kostil polymer window
- Copper alloy Bourdon sensing element
- Black enamel steel case
| Specifications | |
|---|---|
| Accuracy | ASME Type B |
| Air Valve | Yes |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Finish | Black Enamel |
| Case Material | Steel |
| Dial Size | 2 IN |
| EAN | 098268182866 |
| Entry Style | Bottom |
| Fixing Part | Does Not Apply To Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | FPT |
| Lead Free | NO |
| Manual Shutoff | No |
| Maximum Operating Temperature-Fahrenheit | 176 |
| Minimum Temperature-Fahrenheit | 14 |
| Part Number | 0069782 |
| Pressure Scale | 0 to 100 PSI |
| Ring Material | Does Not Apply To Product |
| Sensing Element | Yes |
| Sensing Fluid | No |
| Series | IWTG-GAS |
| Temperature Range | 14 to 176 degree F |
| Thermostat Probe Length | Does Not Apply To Product |
| Thermowell | No |
| Thermowell Type | Does Not Apply To Product |
| VR Retaining Valve | No |
| Window Material | Kostil polymer |
