IWTG-HTX-0-05
×
![]()
Discontinued
Part of the IWTG-HTX Series
Ordering Code: 0069788
UPC: 098268258028
Lead Free: NO

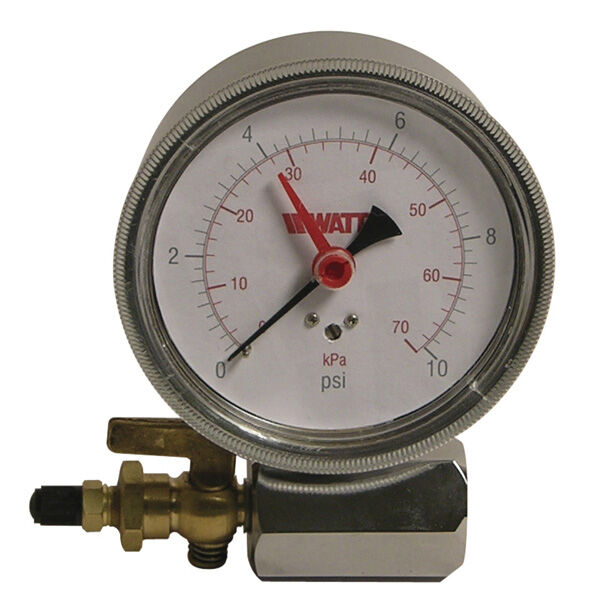

3/4 In Air Test Assembly Gauge, 0-5 psi, 1 Percent Accuracy
This air test assembly gauge is used in commercial, residential, and institutional HVAC applications. It consists of a 3/4 IN FPT chrome plated brass manifold with shutoff valve, steel case, Kostil Polymer window, 3/4 IN FPT x Schrader type air valve with cap connection, set hand and copper alloy Bourdon tube pressure element. It has a 1 percent accuracy, full range. Pressure rating scale is 0-5 psi.
Features
- Brass shut off valve
- Kostil polymer window
- Set hand
- Black enamel steel case
| Specifications | |
|---|---|
| Accuracy | 1 Percent |
| Air Valve | Yes |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Finish | Black Enamel |
| Case Material | Steel |
| Dial Size | 4 IN |
| EAN | 098268258028 |
| Entry Style | Bottom |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | FPT |
| Lead Free | NO |
| Manual Shutoff | Yes |
| Maximum Operating Temperature-Fahrenheit | 176 |
| Minimum Temperature-Fahrenheit | 14 |
| Part Number | 0069788 |
| Pressure Scale | 0 to 5 PSI |
| Sensing Element | Yes |
| Sensing Fluid | No |
| Series | IWTG-HTX |
| Temperature Range | 14 to 176 degrees F |
| Thermowell | No |
| VR Retaining Valve | No |
| Window Material | Kostil Polymer |
