Part of the IWTG-HTX Series

Ordering Code: 0069787

UPC: 098268258578

Lead Free: NO

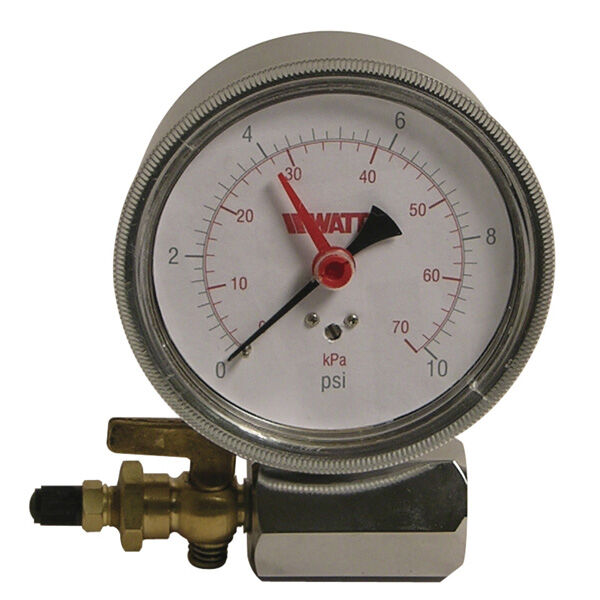

3/4 In Air Test Assembly Gauge, 0-10 psi, 1 Percent Accuracy

This air test assembly gauge is are used in commercial, residential, and institutional HVAC applications. It consistx of a 3/4 IN FPT chrome plated brass manifold with shutoff valve, steel case, Kostil Polymer window, 3/4 IN FPT x Schrader type air valve with cap connection, set hand and copper alloy Bourdon tube pressure element. It has a 1 percent accuracy, full range. Pressure rating scale is 0-10 psi.

Product Features

  • Set hand
  • Brass shut off valve
  • Black enamel steel case
  • Kostil polymer window
Accuracy 1 Percent
Air Valve Yes
Brand Name Watts
Case Finish Black Enamel
Case Material Steel
Dial Size 4 IN
EANUCCCode 098268258578
Entry Style Bottom
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type FPT
Lead Free NO
Manual Shutoff Yes
Maximum Operating Temperature-Fahrenheit 176
Minimum Temperature-Fahrenheit 14
Part Number 0069787
Pressure Scale 0 to 10 PSI
Sensing Element Yes
Sensing Fluid No
Temperature Range 14 to 176 degrees F
Thermowell No
VR Retaining Valve No
Window Material Kostil Polymer
