DPTG3L-3-0-75
×
![]()
Discontinued - Replaced By: LFDPTG3L-3 0-75 1/4
Part of the DPTG-3 Series
Ordering Code: 0615743
UPC: 098268186352

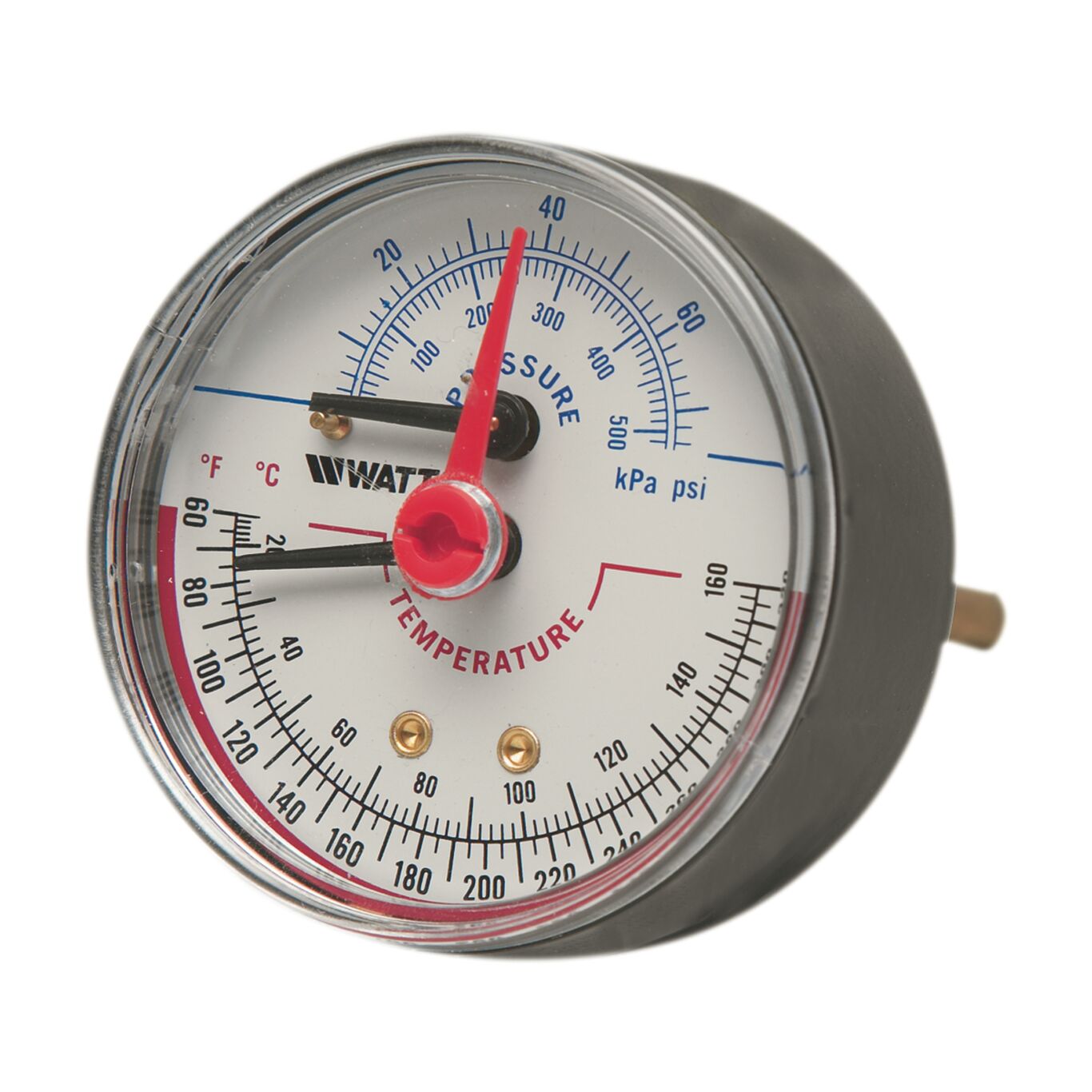

1/4 In Pressure And Temperature Gauge, 0-75 psi, 60-320 degree F, 3 In Dial, Back Entry, Extended Mounting Nut
This combination pressure and temperature gauge is used in commercial, residential, and institutional HVAC applications. It is a center, back entry type model with a black enamel steel case, Kostil Polymer window, 1/2 IN NPT connection, copper alloy Bourdon tube pressure element, and bimetal spiral spring. Accuracy is ASME, Type B. Pressure rating scale is 0-75 psi, temperture is 60-320 degree F. It has an extended mounting nut.
Features
- Tin alloy welding
- Kostil polymer window
- Black enamel steel case
- Copper alloy Bourdon sensing element
| Specifications | |
|---|---|
| Air Valve | No |
| Brand | Watts |
| Buy American Act Compliant | NO |
| Case Material | Steel |
| Dial Size | 3 IN |
| EAN | 098268186352 |
| Entry Style | Back |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Male Threaded |
| Lead Free | NO |
| Manual Shutoff | No |
| Maximum Operating Temperature-Fahrenheit | 320 |
| Minimum Temperature-Fahrenheit | 60 |
| Part Number | 0615743 |
| Pressure Scale | 0 to 75 PSI |
| Sensing Element | Yes |
| Sensing Fluid | No |
| Series | DPTG-3 |
| Stem Shaft Material | Brass |
| Temperature Range | 32 to 932 degrees F |
| Thermostat Probe Length | Does Not Apply To Product |
| Thermowell | No |
| VR Retaining Valve | No |
