LFDPG1-3 0-100 1/4

Part of the LFDPG-1 Series

Ordering Code: 0121647

UPC: 098268588569

Lead Free: YES

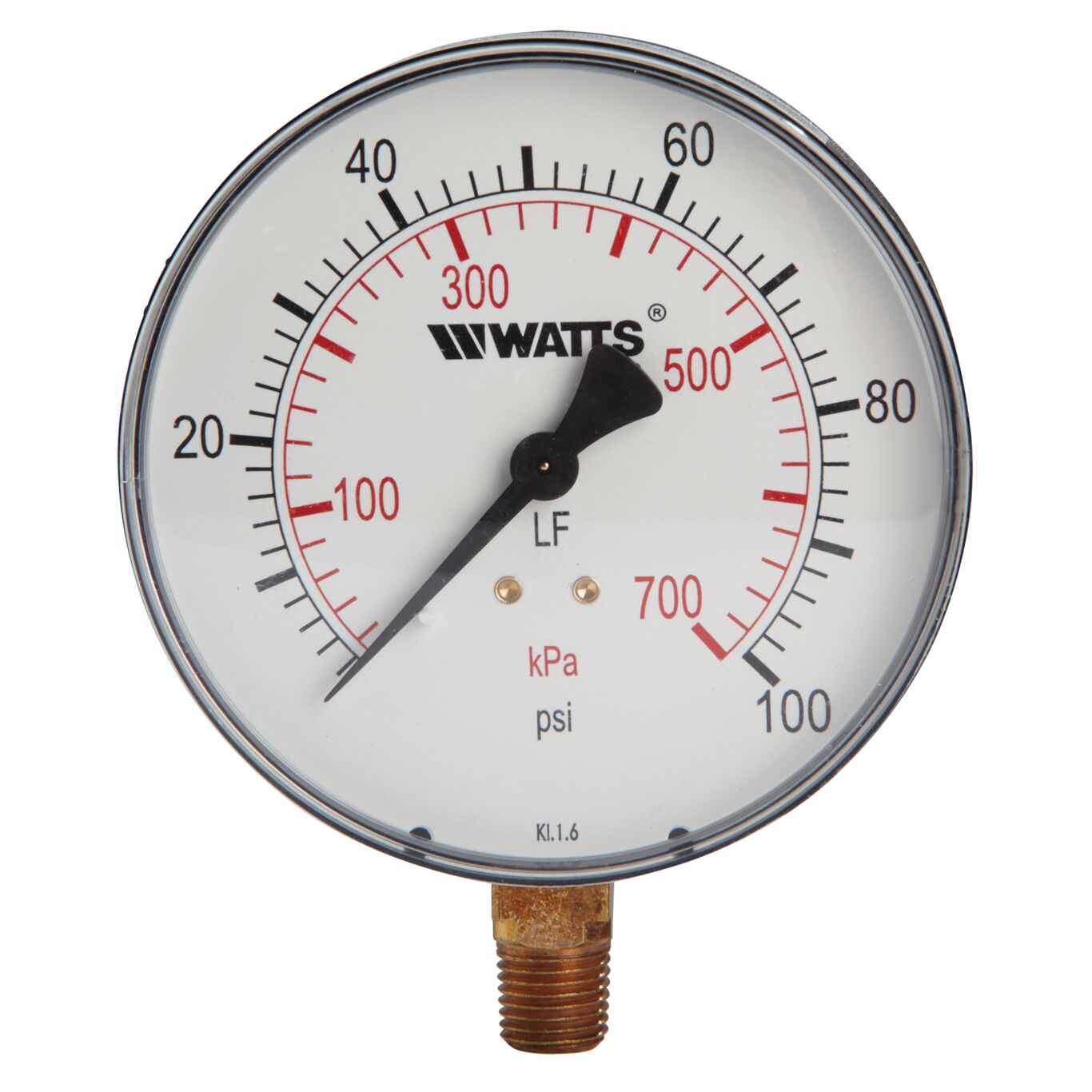

1/4 In Lead Free Pressure Gauge, Bottom Entry, 3 In Dial, 0 To 100 psi

This 1/4 inch lead free bottom entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil polymer window, 1/4 inch NPT connection, and copper alloy Bourdon tube sensing element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 100 psi.

Product Features

  • ABS polymer case
  • Tin alloy welding
  • Copper alloy bourdon sensing element
  • Kostil polymer window
Specifications
Air Valve No
Brand Name Watts
Case Material ABS Polymer
Dial Size 3 IN
EANUCCCode 098268588569
Entry Style Bottom
Inlet Connection Size 1/4 IN
Inlet Connection Type Male Threaded
Lead Free YES
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 176
Minimum Temperature-Fahrenheit -4
Part Number 0121647
Pressure Scale 0 to 100 PSI
Sensing Element Yes
Sensing Fluid No
Series LFDPG-1
Stem Shaft Material Lead Free Brass
Temperature Range Minus 4 to 176 degrees F
Thermostat Probe Length Does Not Apply To Product
Thermowell No
VR Retaining Valve No
