LFDPG1-3 0-15 1/4

Part of the LFDPG-1 Series

Ordering Code: 0121644

UPC: 098268588460

Lead Free: YES

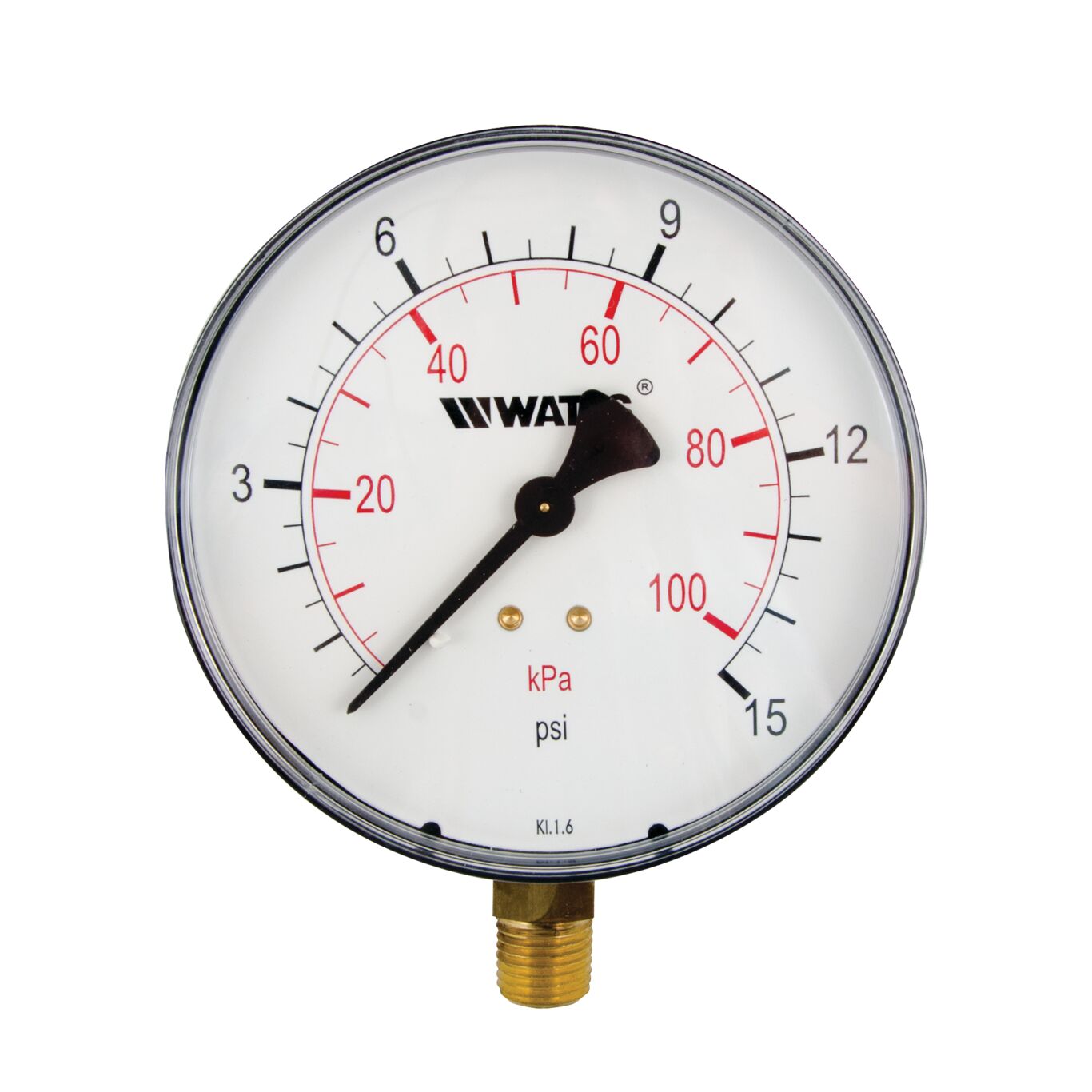

1/4 In Lead Free Pressure Gauge, Bottom Entry, 3 In Dial, 0 To 15 Psi

This 1/4 inch lead free bottom entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil polymer window, 1/4 inch NPT connection, and copper alloy Bourdon tube sensing element with ASME Type B accuracy. This gauge features a 3 inch dial with pressure rating scale from 0 to 15 PSI.

Product Features

  • Tin alloy welding
  • ABS polymer case
  • Copper alloy bourdon sensing element
  • Kostil polymer window
Specifications
Air Valve No
BrandName Watts
Case Material ABS Polymer
Dial Size 3 IN
Inlet Connection Size 1/4 IN
LeadFree YES
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 176
ModelNumber LFDPG1-3 0-15 1/4
Part Number 0121644
Pressure Scale 0 to 15 PSI
Sensing Element Yes
Sensing Fluid No
Series LFDPG-1
Thermowell No
VR Retaining Valve No
