LFDPG5-2-0-160 1/4

Part of the LFDPG-5 Series

Ordering Code: 0121691

UPC: 098268589924

Lead Free: YES

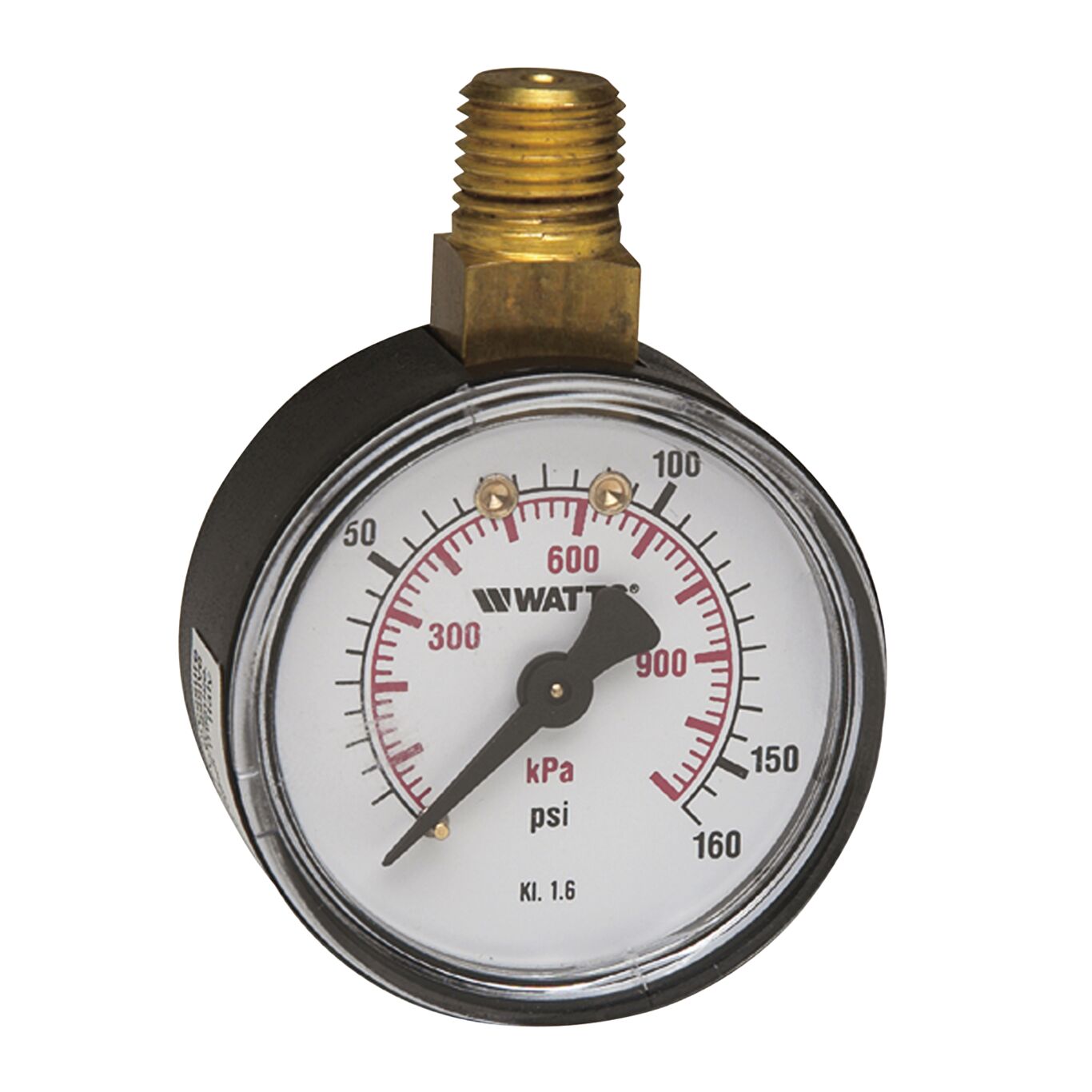

1/4 In Lead Free Pressure Gauge, 0-160 psi, 2 In Dial, Top Entry

This 1/4 inch top-entry pressure gauge is used in commercial, residential, and institutional HVAC applications. It features an ABS polymer case, Kostil Polymer window, 1/4 inch NPT connection, and copper alloy Bourdon tube sensing element. Accuracy is ASME, Type B. It has a dual scale reading in psi and kPa.

Product Features

  • Copper alloy Bourdon sensing element
  • Kostil polymer window
  • Tin alloy welding
  • ABS polymer case
Specifications
Air Valve No
Brand Name Watts
Case Material ABS Polymer
Dial Size 2 IN
Entry Style Top
Inlet Connection Size 1/4 IN
Inlet Connection Type Male Threaded
Lead Free YES
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 176
Minimum Temperature-Fahrenheit -4
Model Number LFDPG5-2-0-160 1/4
Part Number 0121691
Pressure Scale 0 to 160 PSI
Sensing Element Yes
Sensing Fluid No
Series LFDPG-5
Stem Shaft Material Lead Free Brass
Temperature Range Minus 4 to 176 degrees F
Thermostat Probe Length Does Not Apply To Product
Thermowell No
VR Retaining Valve No
