TBC-21/2-12-32-932

Part of the TBC Series

Ordering Code: 0615663

UPC: 098268045901

Lead Free: NO

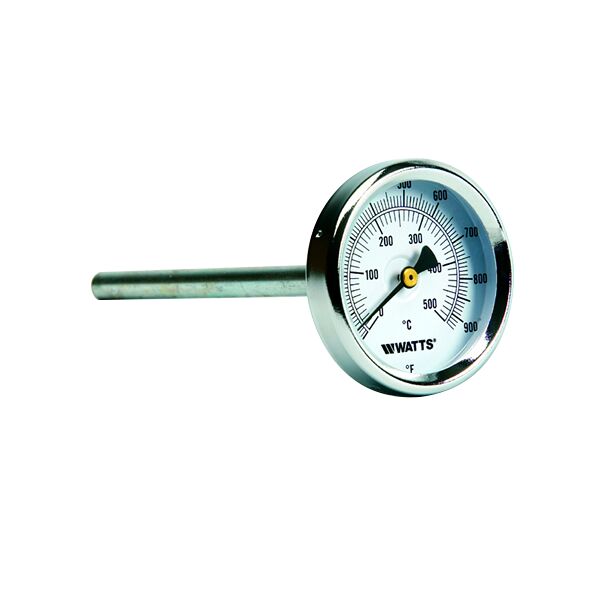

Bimetal Thermometer, 32 To 932 degree F, 2 1/2 In Dial, 12 In Probe, Chimney Mount, Center, Back Entry

This chimney-mount, center, back entry bimetal thermometer is used in commercial, residential, and institutional HVAC applications. It features a zinc plated steel case, zinc plated steel stem, chrome steel ring, glass window, bimetal spiral spring sensing element, and 12 IN probe. Temperature scale is 32-932 degree F.

Product Features

  • Chromed steel ring
  • Zinc plated steel case
  • Zinc plated steel stern
  • Glass lens
Specifications
Air Valve No
Brand Name Watts
Case Finish Zinc Plated
Case Material Steel
Dial Size 2 1/2 IN
Entry Style Chimney
Inlet Connection Size Does Not Apply To Product
Inlet Connection Type Does Not Apply To Product
Lead Free NO
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 932
Minimum Temperature-Fahrenheit 32
Model Number TBC-21/2-12-32-932
Part Number 0615663
Pressure Scale Does Not Apply To Product
Sensing Element Yes
Sensing Fluid No
Series TBC
Stem Shaft Material Zinc plated steel
Temperature Range 32 to 932 degrees F
Thermostat Probe Length 12 IN
Thermowell No
VR Retaining Valve No
Window Material Glass
