TBC-21/2-4-32-932

Discontinued

Part of the TBC Series

Ordering Code: 0615660

UPC: 098268045871

Lead Free: NO

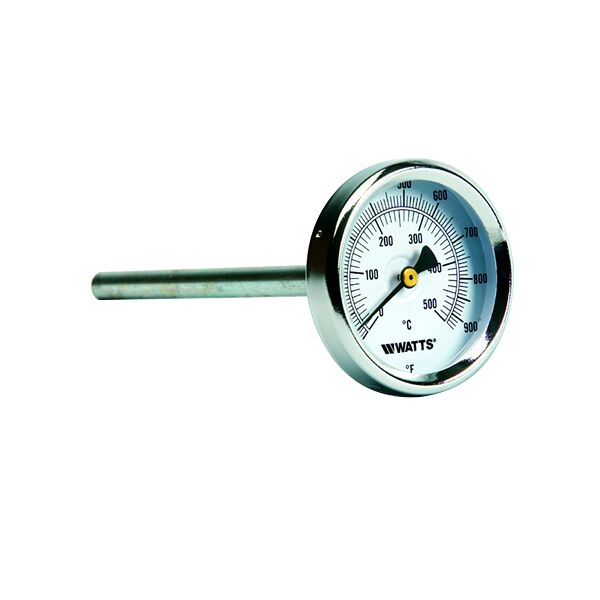

Bimetal Thermometer, 32 To 932 degree F, 2 1/2 In Dial, 4 In Probe, Chimney Mount, Center, Back Entry

This chimney-mount, center, back entry bimetal thermometer is used in commercial, residential, and institutional HVAC applications. It features a zinc plated steel case, zinc plated steel stem, chrome steel ring, glass window, bimetal spiral spring sensing element, and 4 IN probe. Temperature scale is 32-932 degree F.

Product Features

  • Chromed steel ring
  • Glass lens
  • Zinc plated steel stern
  • Zinc plated steel case
Specifications
Air Valve No
Brand Name Watts
Case Finish Zinc Plated
Case Material Steel
Dial Size 2 1/2 IN
EANUCCCode 098268045871
Entry Style Chimney
Inlet Connection Size Does Not Apply To Product
Inlet Connection Type Does Not Apply To Product
Lead Free NO
Manual Shutoff No
Maximum Operating Temperature-Fahrenheit 932
Minimum Temperature-Fahrenheit 32
Part Number 0615660
Pressure Scale Does Not Apply To Product
Sensing Element Yes
Sensing Fluid No
Series TBC
Stem Shaft Material Zinc plated steel
Temperature Range 32 to 932 degrees F
Thermostat Probe Length 4 IN
Thermowell No
VR Retaining Valve No
Window Material Glass
