AS-B-S 1
×
![]()
Discontinued
Part of the AS-B Series
Ordering Code: 0858542
UPC: 098268066609
Lead Free: Not In Scope

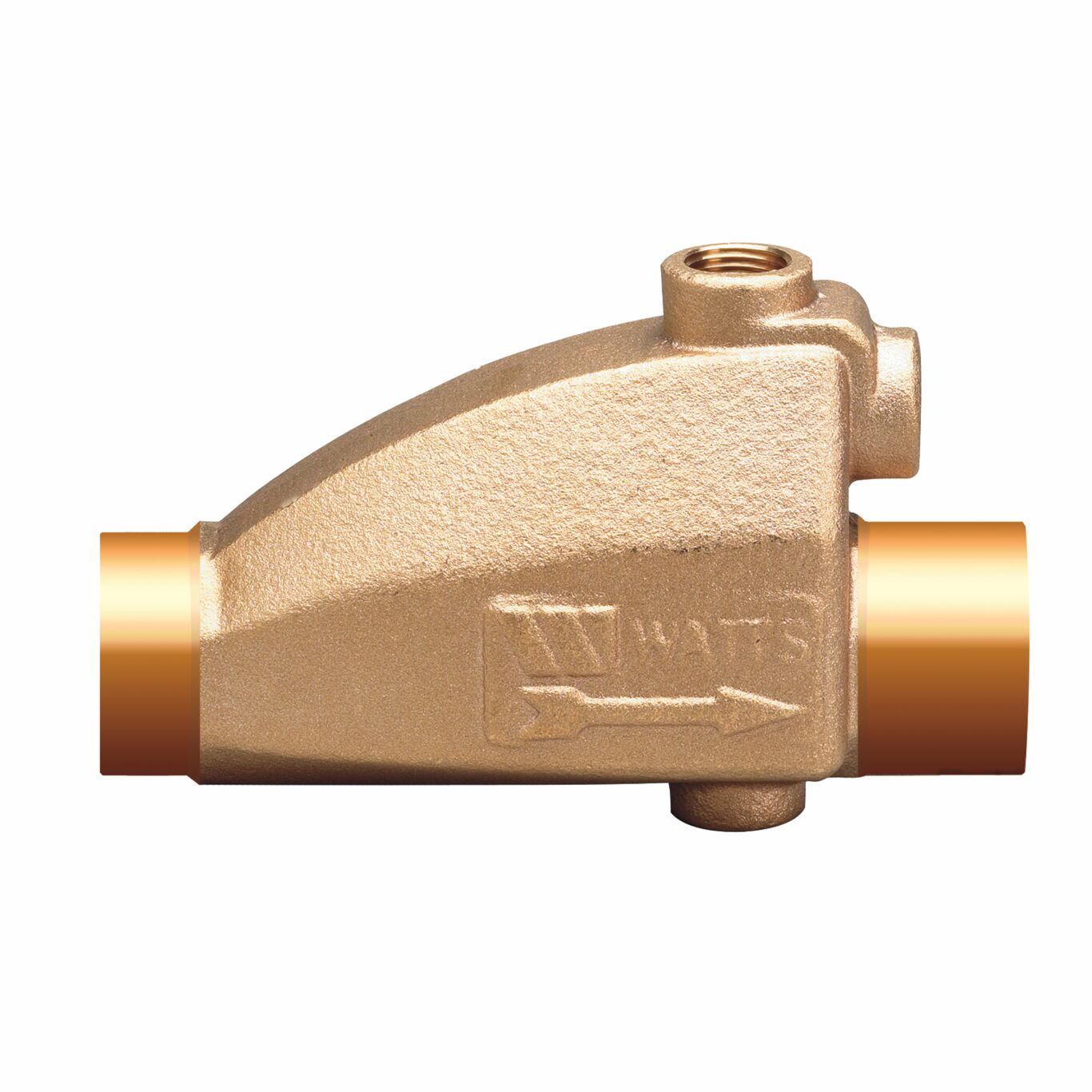

1/2 In Bronze Air Separator With Feed Water Tapping
This bronze air separator, 1 IN, is used in commercial and residential, hydronic heating applications to separate air from water in the piping system. It consists of a bronze body construction with sweat connection, tapings for a boiler-fill expansion tank, a 1/2 inch FV4-M1 float vent, and a 1/2 inch brass pipe plug. It provides continuous purging and venting of air in the system when installed with watts series FV4-M1 float vent. Horizontal mount only. It is ideal for use in radiant heat systems. Maximum pressure is 125 psi (8.6 bar).
Features
- Bronze construction
- Comes standard with tappings
- Provides complete, continuous purging and venting of air
- Ideal for radiant heat systems
| Specifications | |
|---|---|
| Body Material | Bronze |
| Brand | Watts |
| Buy American Act Compliant | NO |
| EAN | 098268066609 |
| Flow Rate | Does Not Apply To Product |
| Hydronic Item Type | Air Separator |
| Inlet Connection Size | 1 IN |
| Inlet Connection Size-Metric | 25 MM |
| Inlet Connection Type | Socket |
| Lead Free | Not In Scope |
| Maximum Operating Temperature-Fahrenheit | 275 |
| Maximum Pressure-PSI | 125 |
| Maximum Working Pressure-PSI | 125 |
| Outlet Connection Size | 1 IN |
| Outlet Connection Type | Socket |
| Part Number | 0858542 |
| Series | AS-B |
