ASM1 1 1/2 Watts

Part of the AS Series

Ordering Code: 0858537

UPC: 098268872095

Lead Free: Not In Scope

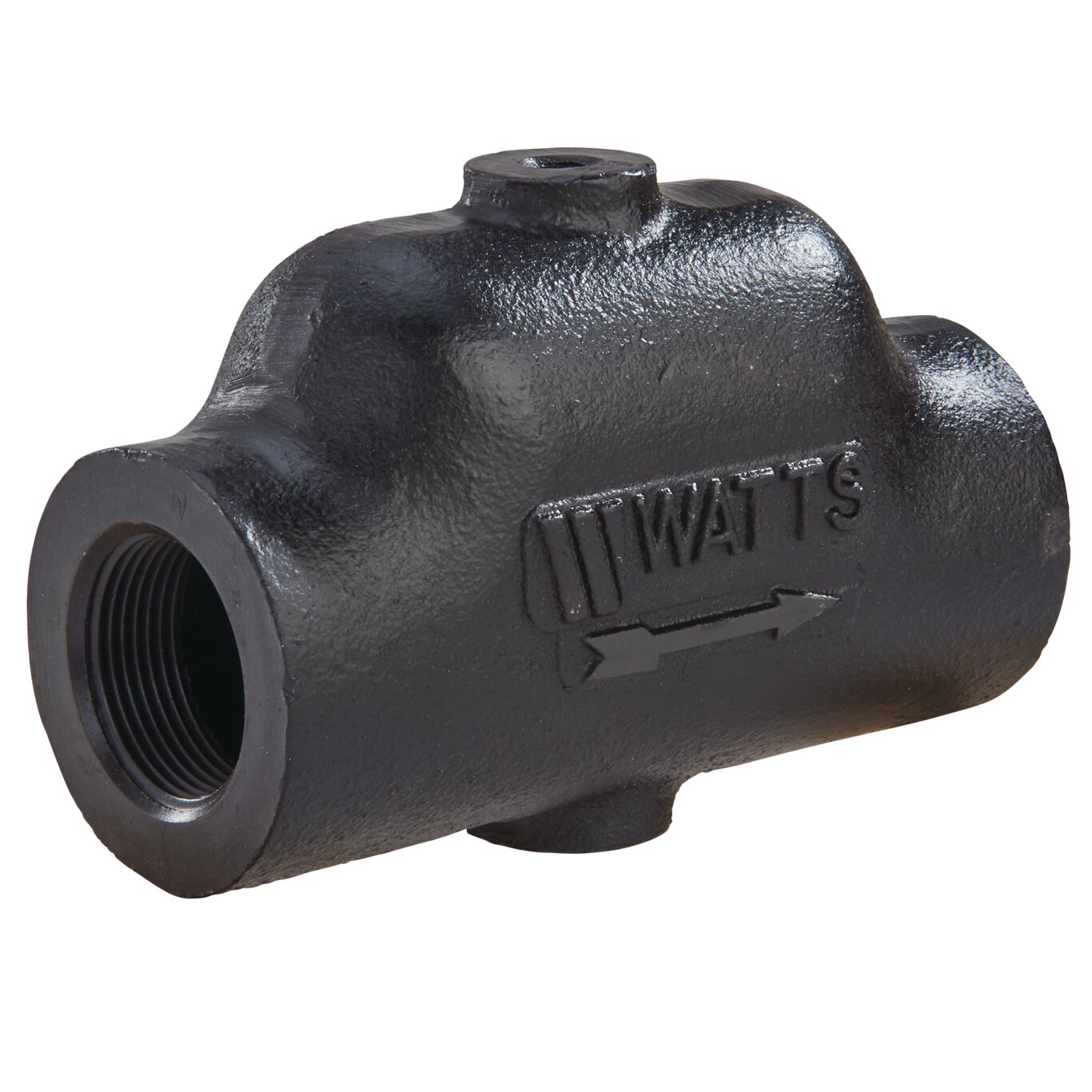

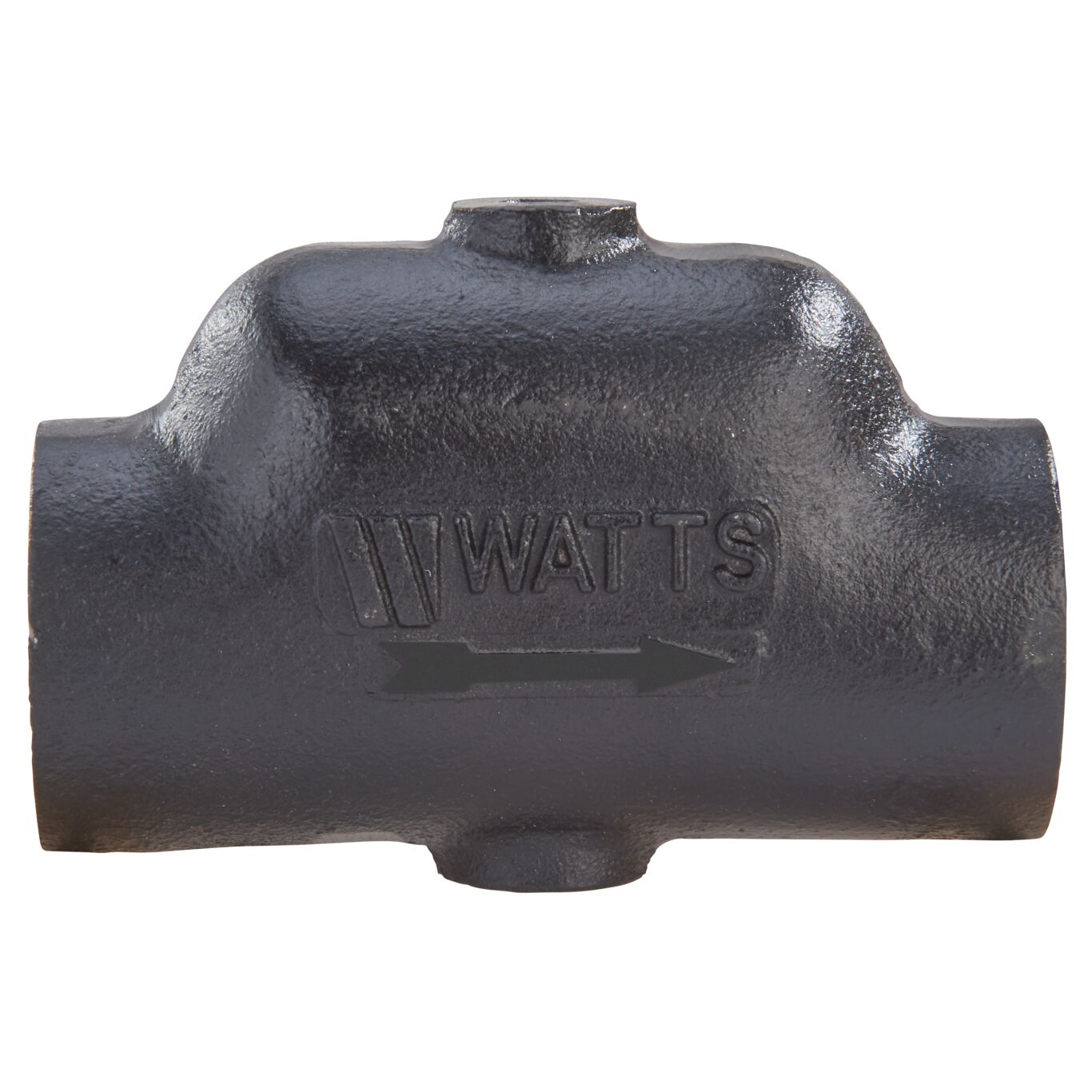

1 1/2 In Cast Iron Air Separator

This 1 1/2 IN cast iron air separator is used in commercial and residential, hydronic heating applications to separate air from water in the piping system. It consists of a heavy, cast iron body construction with a 1/2 inch female threaded connection for an expansion tank, and a 1/8 inch female threaded connection for a float vent. It provides continuous purging and venting of air in the system when installed with Watts Model ET expansion tank and Model FV4 float-vent. The maximum pressure is 125 PSI (8.6 bar).

Product Features

  • Provides complete, continuous purging and venting of air
  • Efficient separation of air
  • Tappings on each side
  • Heavy cast iron construction
Specifications
BrandName Watts
Hydronic Item Type Air Separator
LeadFree Not In Scope
ModelNumber ASM1 1 1/2
Part Number 0858537
Series AS
