CSM-61-M1-T 3/4

Part of the CSM-61-T Series

Ordering Code: 0856738

UPC: 098268631500

Lead Free: NO

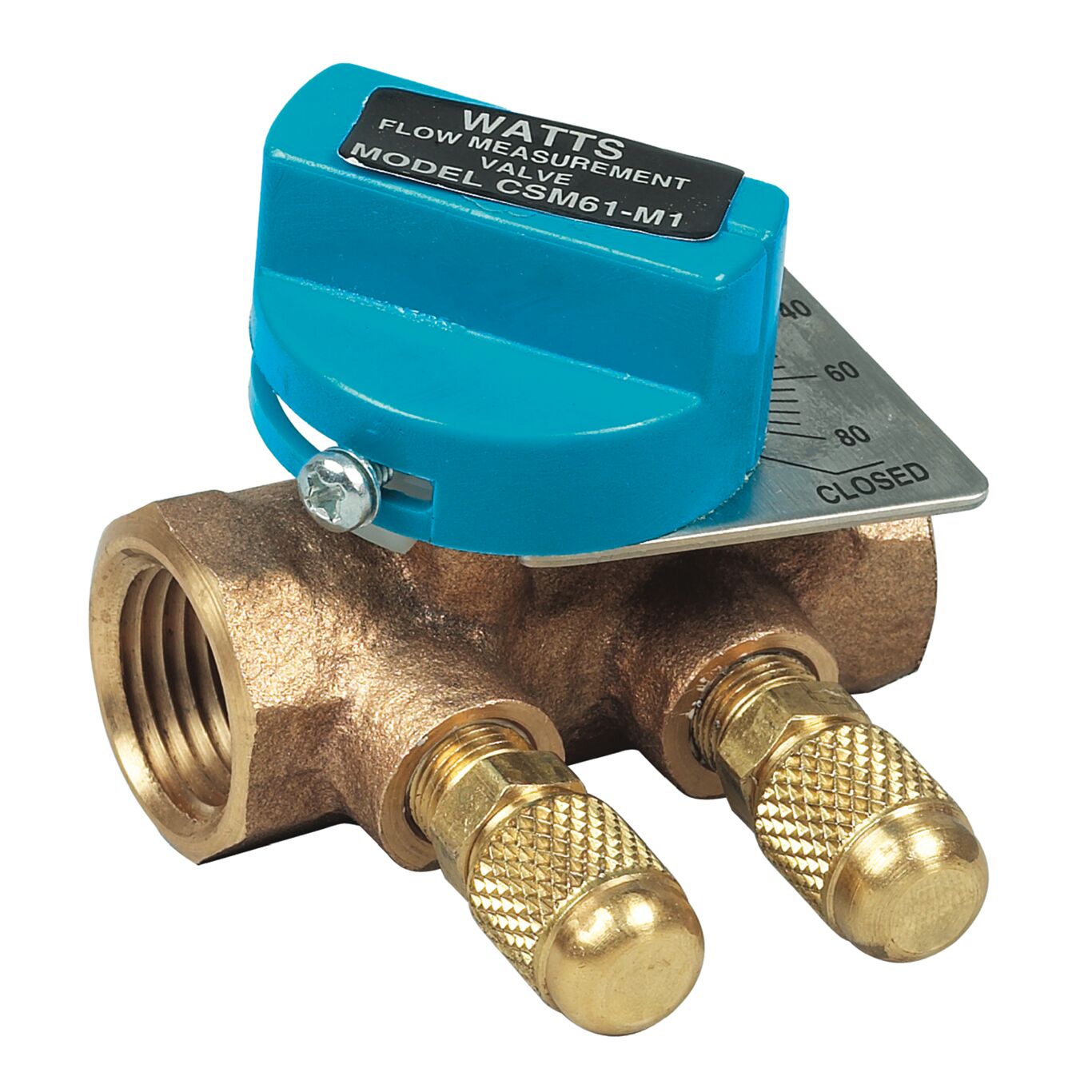

3/4 IN Flow Measurement Valve, Thread

This 3/4 inch flow measurement valve monitors system flow in low to medium flow rate HVAC units, providing a highly accurate flow measurement. It consists of bronze body construction with bi-directional, positive shutoff ball valve design, blow-out proof stem, a position indicator, memory device, checked metering ports with drip caps, two brass pressure taps, integral drain ports, thread connections, and a brass drain plug. It has a compact size which allows for easy installation and access in a crowded piping environment. It is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, small branch lines, unit heaters, unit ventilators, finned radiation, small domestic hot water lines, convectors, and small pumps.

Product Features

  • Threaded ends
  • Positive shutoff
  • Bronze body for durability
  • Flow measurement
Specifications
Body Material Bronze
BrandName Watts
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Thread Type FPT
LeadFree NO
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-BAR 21.00
Maximum Working Pressure-PSI 300
ModelNumber CSM-61-M1-T 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type FPT
Part Number 0856738
Series CSM-61-T
Valve Style Ball
