CSM-61-M1-S 1

Discontinued - Replaced By: LFCSM-61-M1-S 1

Part of the CSM-61 Series

Ordering Code: 0856739

UPC: 098268631517

Lead Free Model Available

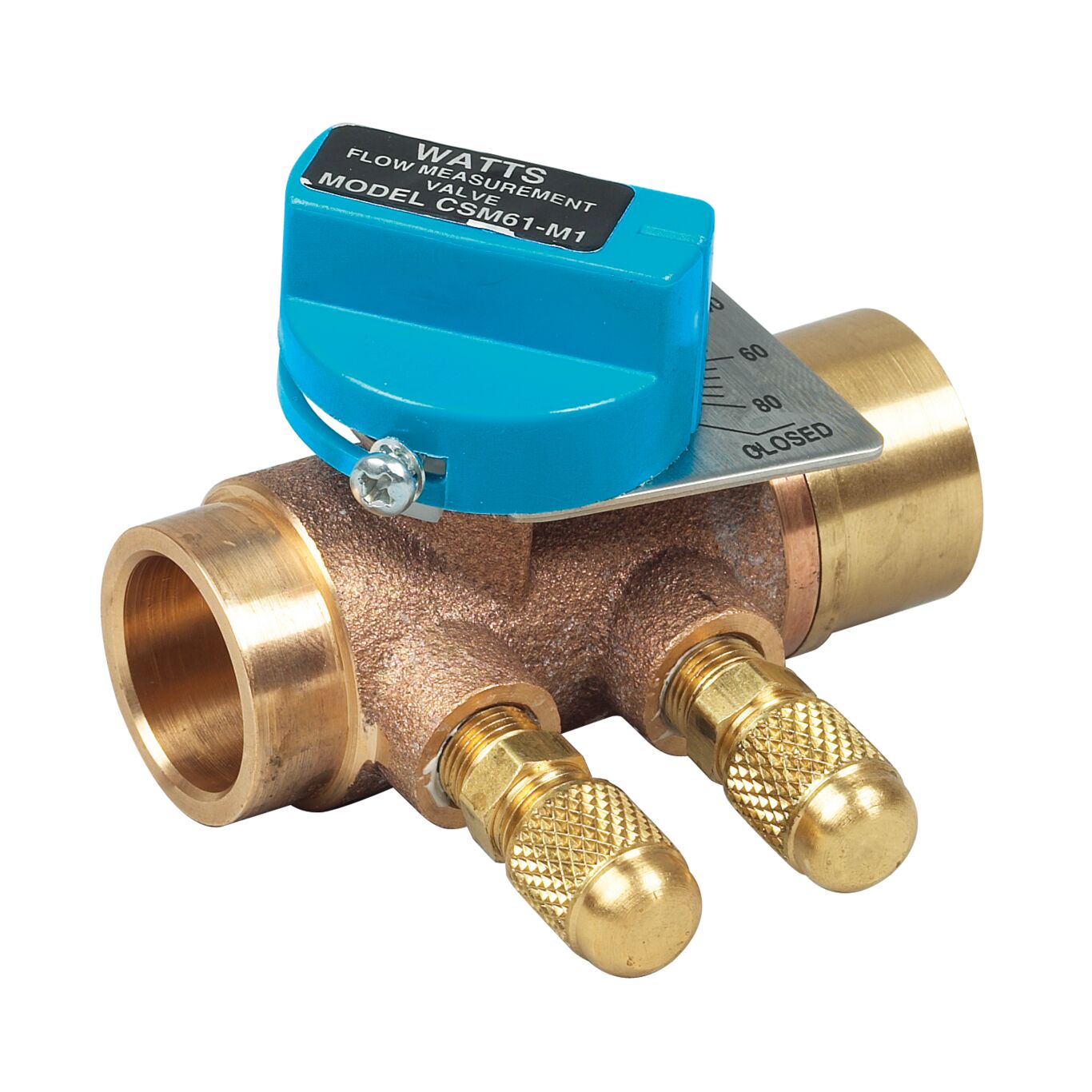

1 In Flow Measurement Valve, Solder

This 1 inch flow measurement valve monitors system flow in low to medium flow rate HVAC units, providing a highly accurate flow measurement. It consists of bronze body construction with bi-directional, positive shutoff ball valve design, blow-out proof stem, a position indicator, memory device, checked metering ports with drip caps, two brass pressure taps, integral drain ports, solder connections, and a brass drain plug. It has a compact size which allows for easy installation and access in a crowded piping environment. It is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, small branch lines, unit heaters, unit ventilators, finned radiation, small domestic hot water lines, convectors, and small pumps.

Product Features

  • Bi-directional flow
  • Bronze body
  • Positive shutoff
  • Solder ends
Body Material Bronze
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Size-Metric 25 MM
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
Lead Free NO
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-BAR 14.00
Maximum Working Pressure-PSI 200
Model Number CSM-61-M1-S 1
Outlet Connection Size 1 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0856739
Series CSM-61
Valve Style Ball
