LFCSM-61-M2-S 1 1/4

Part of the LFCSM-61-S Series

Ordering Code: 0856812

UPC: 098268463460

Lead Free: YES

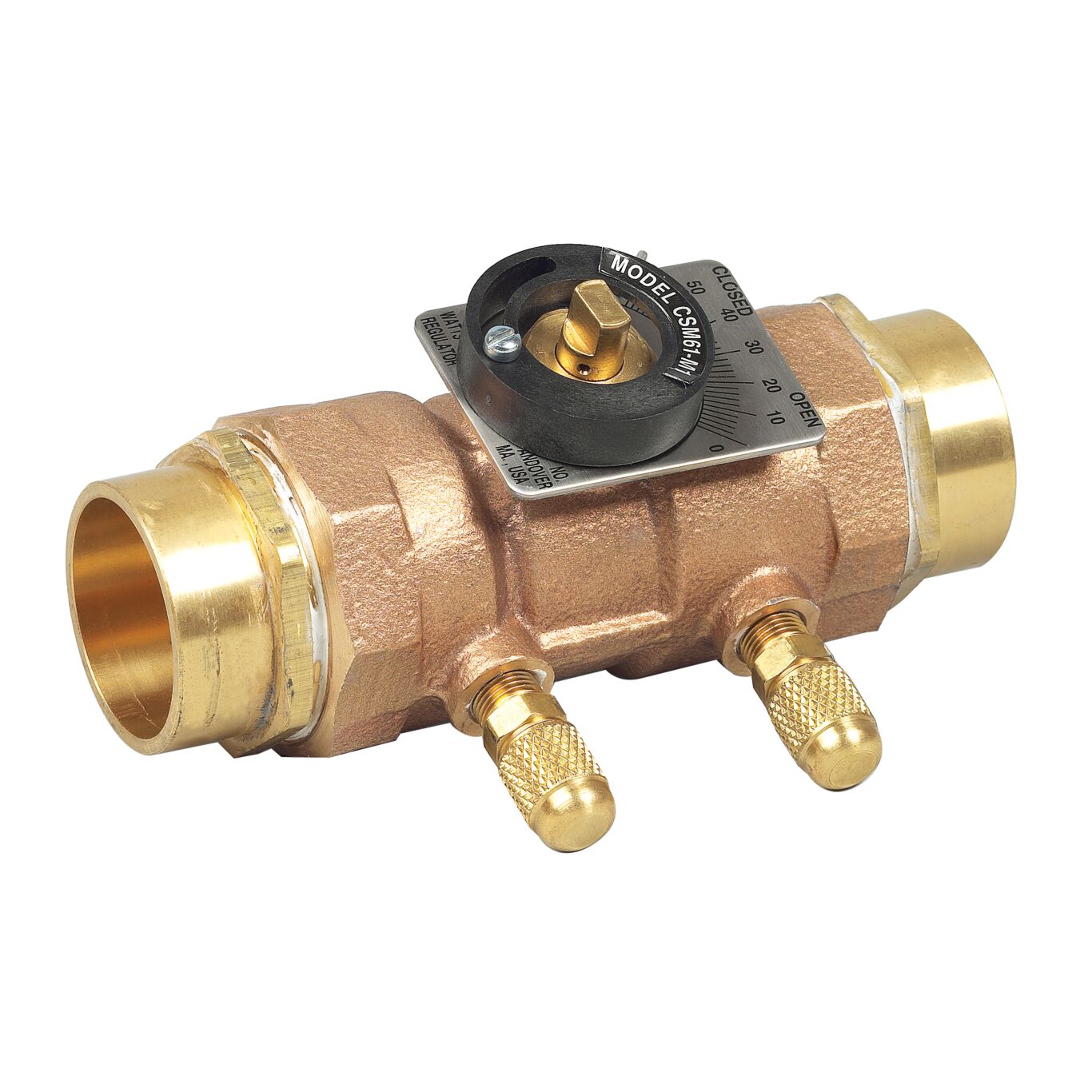

1 1/4 In Lead Free Flow Measurement Valve

This 1 1/4 inch lead free flow measurement valve monitors system flow in low to medium flow rate HVAC units, providing a highly accurate flow measurement. It consists of lead free body construction with bi-directional, positive shutoff ball valve design, blow-out proof stem, a position indicator, memory device, checked metering ports with drip caps, two pressure taps, integral drain ports, and a drain plug. It has a compact size which allows for easy installation and access in a crowded piping environment and is ideal in hot/chilled water units such as fan coil units, water source heat pumps, unit heaters, unit ventilators, finned radiation, and small domestic hot water lines.

Product Features

  • Bi-directional flow
  • Positive shutoff
  • Solder ends
  • Lead free body
Specifications
Body Material Bronze
BrandName Watts
Inlet Connection Size 1 1/4 IN
Inlet Connection Type Socket
Inlet Thread Type Does Not Apply To Product
LeadFree YES
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-BAR 12.00
Maximum Working Pressure-PSI 175
ModelNumber LFCSM-61-M2-S 1 1/4
Outlet Connection Size 1 1/4 IN
Outlet Connection Type Socket
Outlet Thread Type Does Not Apply To Product
Part Number 0856812
Series LFCSM-61-S
Valve Style Ball
