BD-QT
Brass Quarter-Turn Boiler Drain Shutoffs
BD-QT
Brass Quarter-Turn Boiler Drain Shutoffs
Features
- Drain shutoffs for hydronic heating systems
- Convenient quarter turn design
- Positive shutoff and adjustable stem packing
- Available in threaded and solder ends

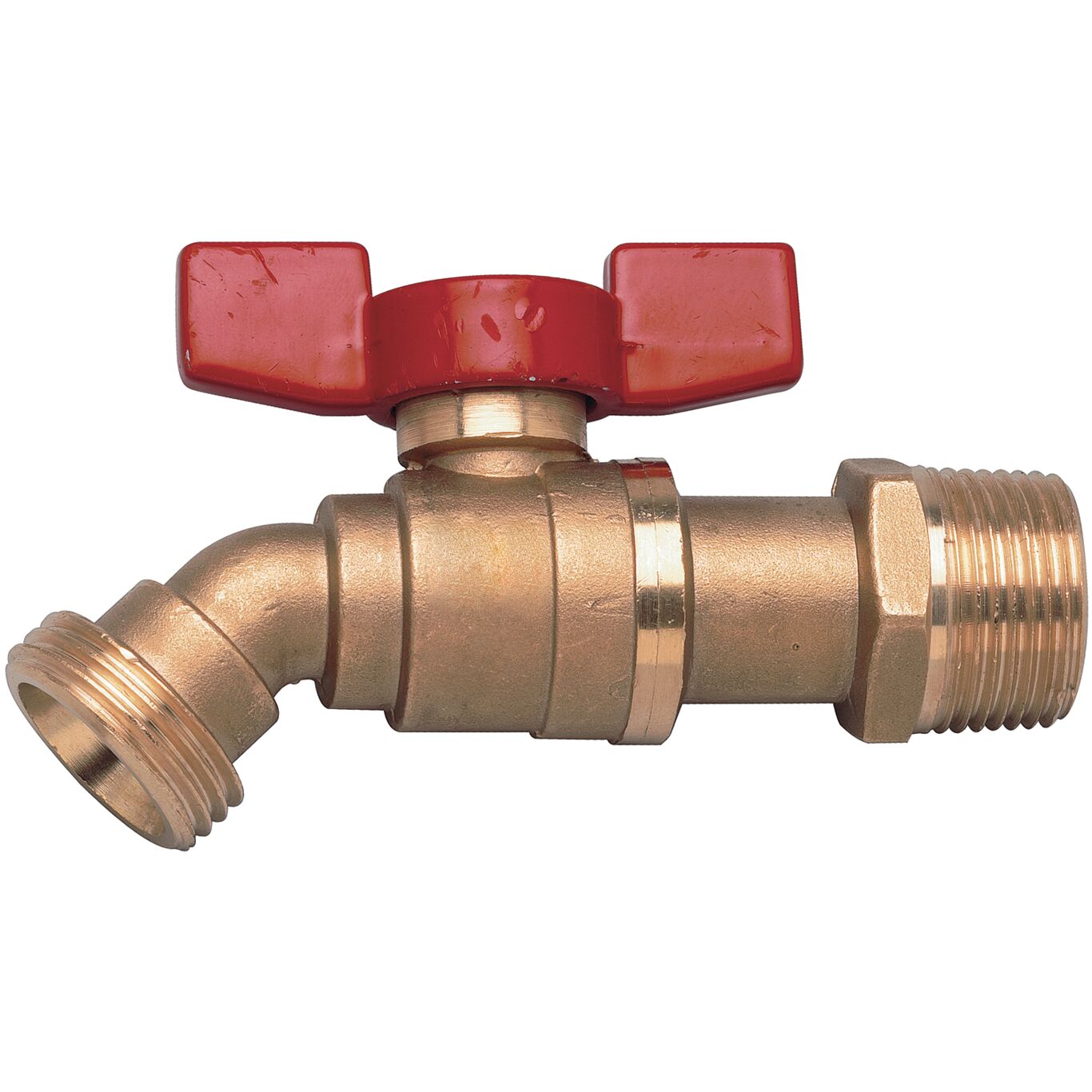

Series BD-QT Brass Quarter-Turn Boiler Drain Shutoffs are for use in commercial and residential hydronic heating systems. It consists of a brass body construction with 3/4 in. hose thread connection on outlet side, adjustable polytetrafluoroethylene (PTFE) stem packing and an aluminum quarter-turn tee handle with positive shutoff. The 1/2 in. inlet model is available with a dual-pattern combination threaded and solder connection. The 3/4 in. inlet model is available in threaded connections. Maximum pressure: 200 psi (13.8 bar) WOG. Temperature rating: 250 degrees F (121 degrees C).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific BD-QT
