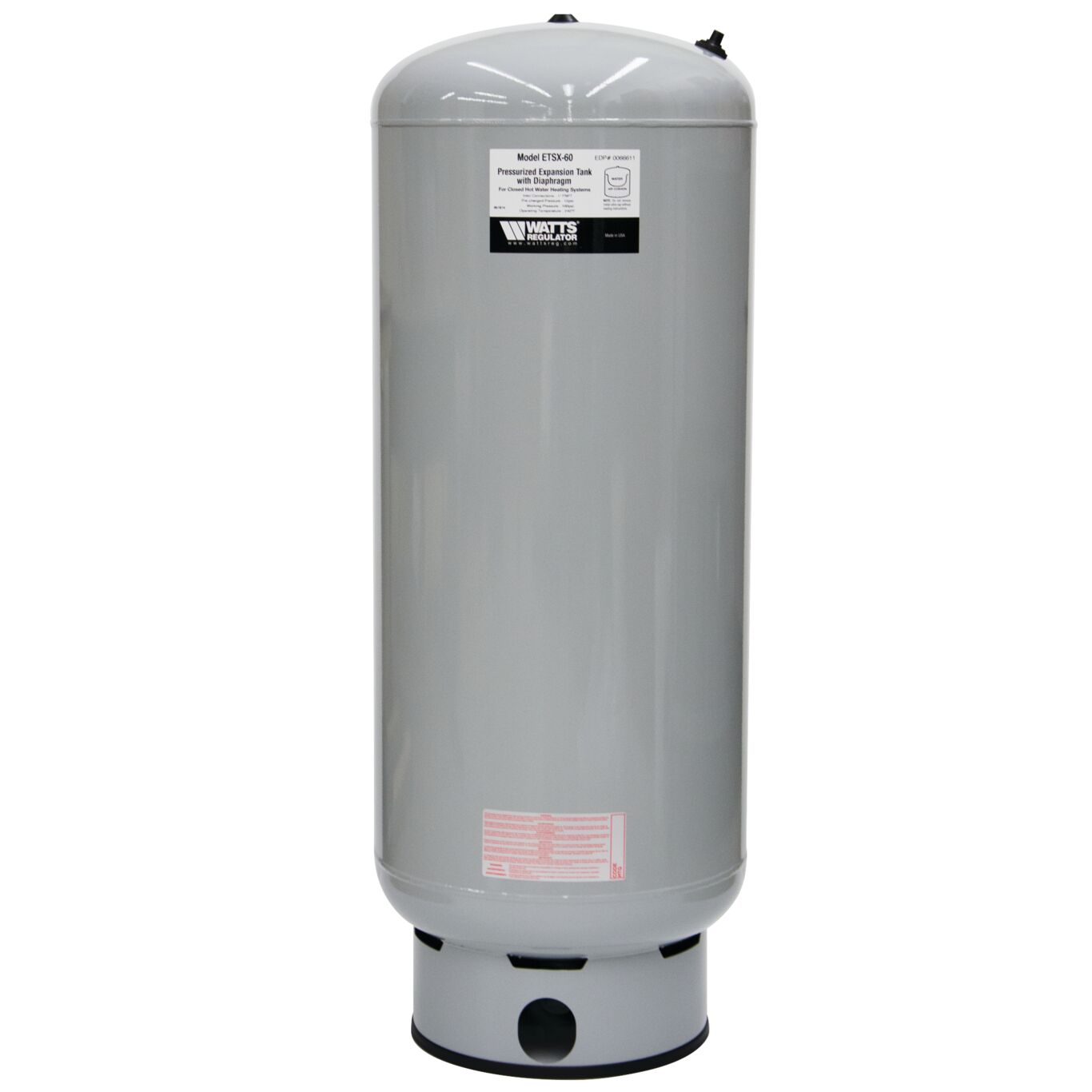

ETSX-60 Watts

Part of the ETX Series

Ordering Code: 0066611

UPC: 098268219500

Lead Free: Not In Scope

Non-Potable Water Expansion Tank, 1 In Fnpt Connection, Tank Volume 33.0 Gallons, Free Standing

This non-potable water expansion tank is designed for use in commercial and residential closed loop hydronic heating system piping to control the thermal expansion of hot water and maintain system pressure below the relief setting of the relief valve. This carbon steel tank is pre-charged at 12 PSI, tank volume is 33.0 gallons and features a durable expansion membrane that prevents contact of the water with the air in the tank. This rugged butyl diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system. This tank is made of carbon steel with epoxy finish, free-standing, 1 inch FNPT system connection and a 0.302-32 inch charging valve connection (standard tire valve) to facilitate on-site charging of the tank to meet system requirements. The maximum working pressure is 75 PSI (5.3 BAR).

Product Features

  • Precharged to 12 PSI
  • Inline and free standing models
  • Rugged flexible butyl diaphragm
  • Steel construction
Specifications
Air Precharge 12 PSI
Air Valve Yes
Bladder Material Butyl
BrandName Watts
Color Gray
Diameter 16 IN
Electricity Required No
Fuel Gauge No
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
LeadFree Not In Scope
Liner Material Does Not Apply To Product
Maximum Operating Temperature-Fahrenheit 220
Maximum Working Pressure-PSI 100
ModelNumber ETSX-60
Mount Type Free Standing
Orientation Vertical
Part Number 0066611
Series ETX
Stand Included Yes
Tank Acceptance 13.3 Gallons at 12 PSI
Tank Height 42 13/16 IN
Tank Material Carbon Steel
Tank Volume 33 Gallon
