ETSX-90

Part of the ETX Series

Ordering Code: 0066612

UPC: 098268219562

Lead Free: Not In Scope

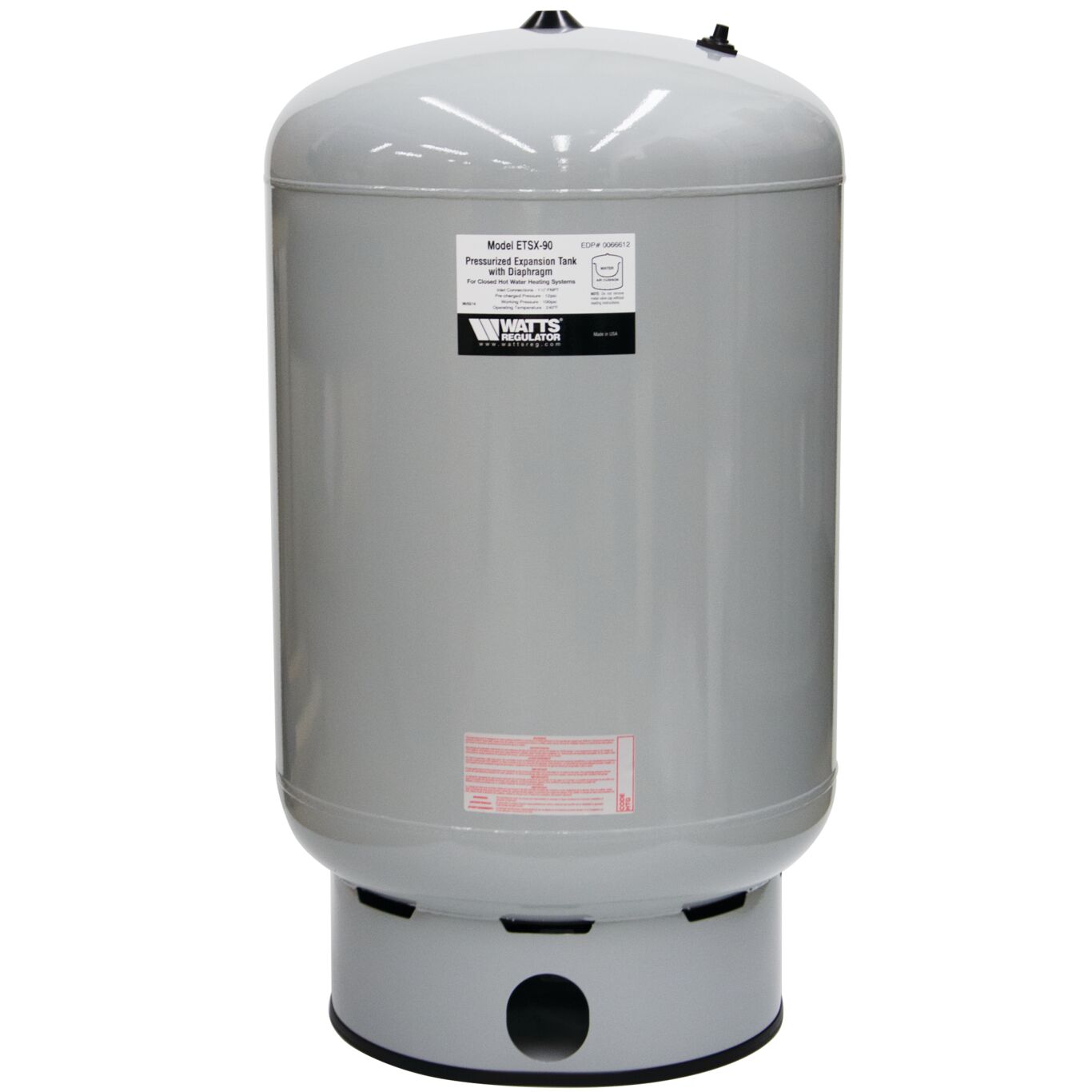

Non-Potable Water Expansion Tank, 1 1/4 In FNPT Connection, Tank Volume 44.0 Gallons, Free Standing

  • Precharged to 12 psi
  • Rugged flexible butyl diaphragm
  • Inline and free standing models
  • Steel construction
Specifications
Air Precharge 12 PSI
Air Valve Yes
Bladder Material Butyl
Brand Watts
Buy American Act Compliant NO
Color Gray
Diameter 21 IN
EAN 098268219562
Electricity Required No
Fuel Gauge No
Inlet Connection Size 1 1/4 IN
Inlet Connection Size-Metric 32 MM
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free Not In Scope
Liner Material Does Not Apply To Product
Maximum Operating Temperature-Fahrenheit 220
Maximum Working Pressure-PSI 100
Mount Type Free Standing
Orientation Vertical
Part Number 0066612
Series ETX
Stand Included Yes
Tank Acceptance 17.7 Gallons at 12 PSI
Tank Height 36 3/16 IN
Tank Material Carbon Steel
Tank Volume 44 Gallon
