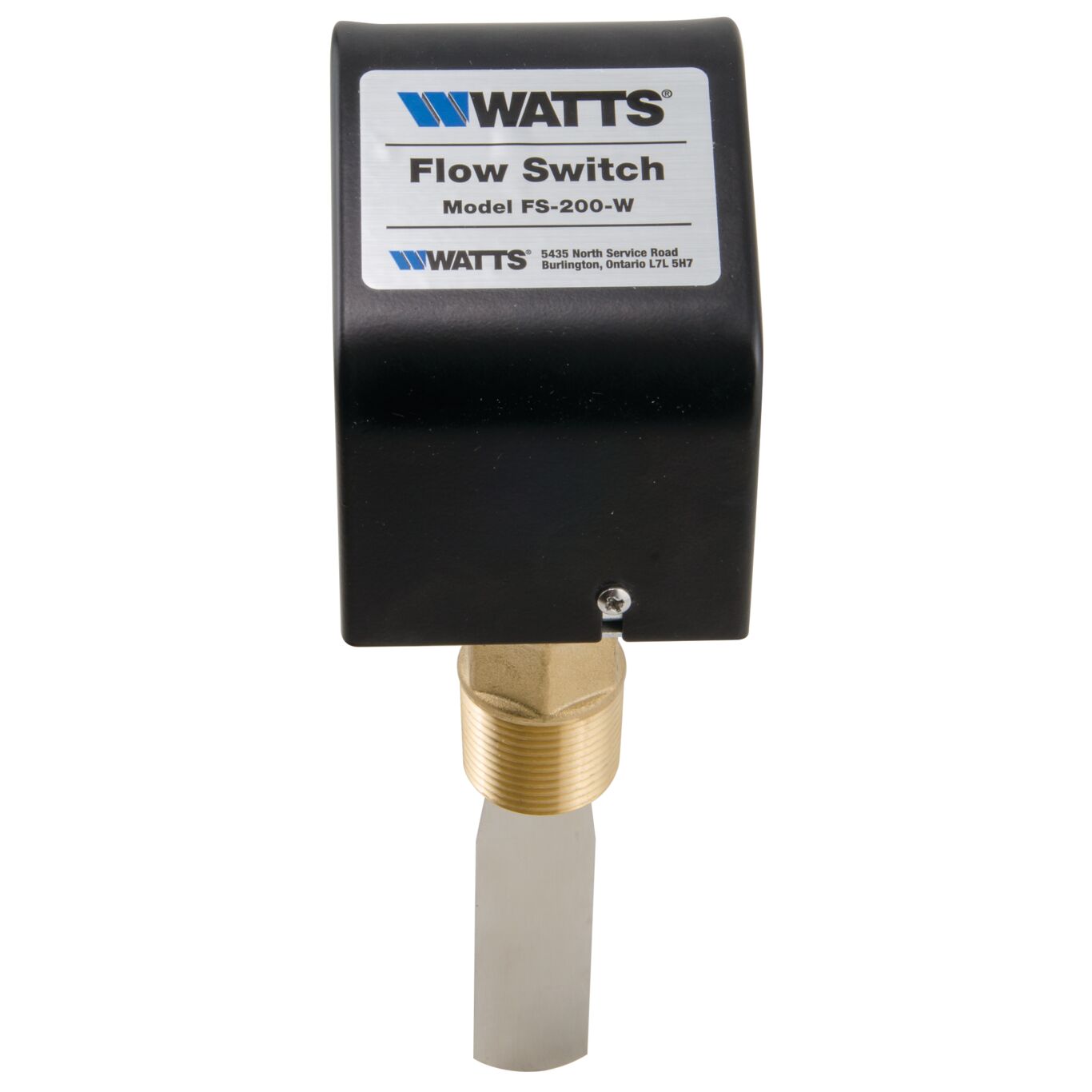

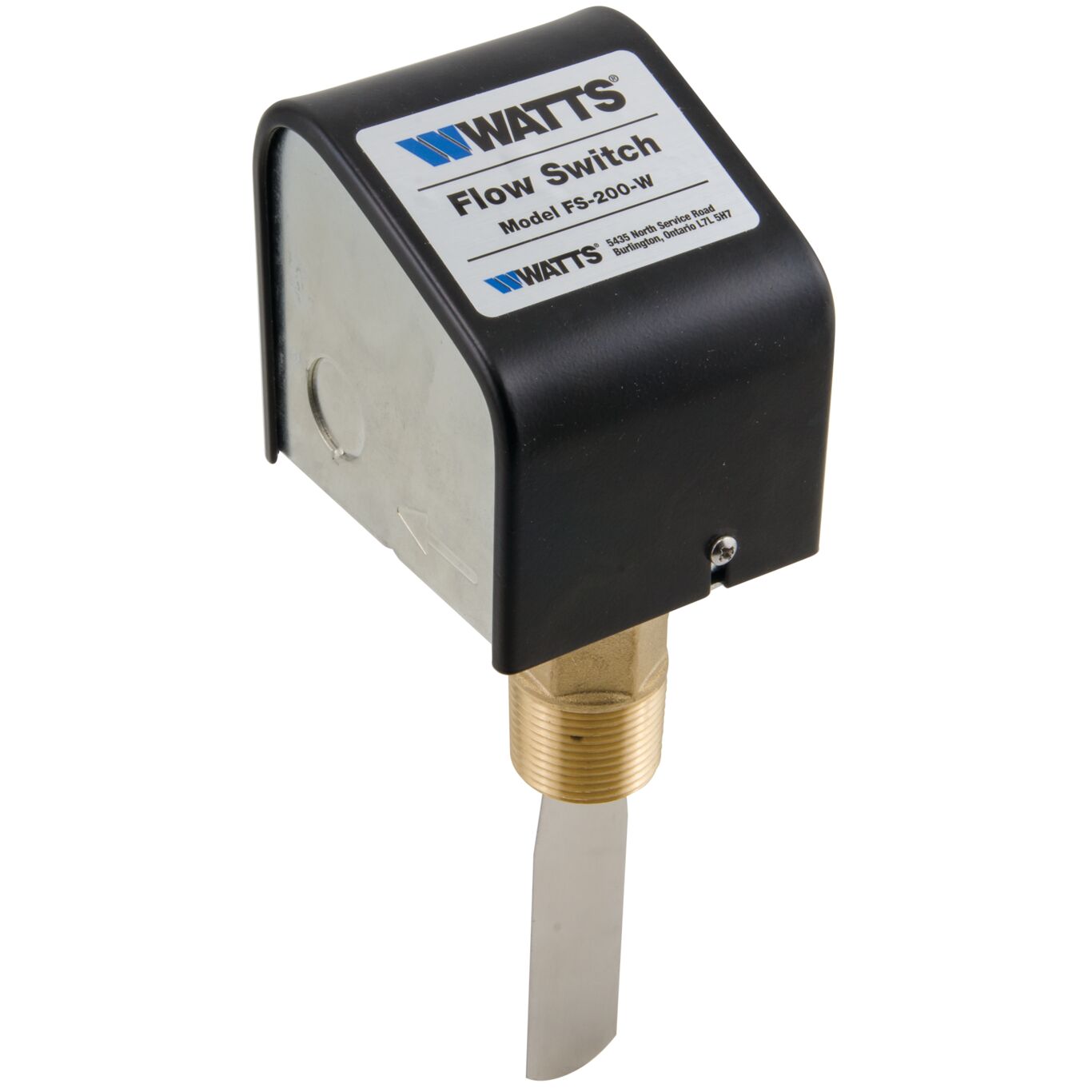

FS-200-W

Part of the FS-200-W Series

Ordering Code: 00063067

UPC: 098268964493

Lead Free: Not In Scope

General Purpose Flow Switch, Nema 1, Two 7/8 In Electrical Knock-Outs, For 1/2 In Conduit, 1 In Npt Connection

This general purpose flow switch, model FS-200-W, is used to start or stop electrically operated equipment such as burners, pumps, or alarms by detecting liquid flow through piping. It is designed for use in water media application and is not intended for use of highly corrosive fluids. This flow switch has switch enclosure rating of NEMA 1, for accurate monitoring of liquid flow in pipelines.

Product Features

  • EPDM seal for superior performance over mechanical bellows
  • Single pole double throw switch for operating signal devices
  • Four heavy duty stainless steel paddles
  • Universal design - replaces switches by McDonnell & Miller, Taco, Penn and others
Specifications
Brand Name Watts
Inlet Connection Size 1 IN
Inlet Connection Type Male Threaded
Lead Free Not In Scope
Maximum Temperature-Fahrenheit 250
Maximum Working Pressure-PSI 160
Model Number FS-200-W
Part Number 00063067
Series FS-200-W
