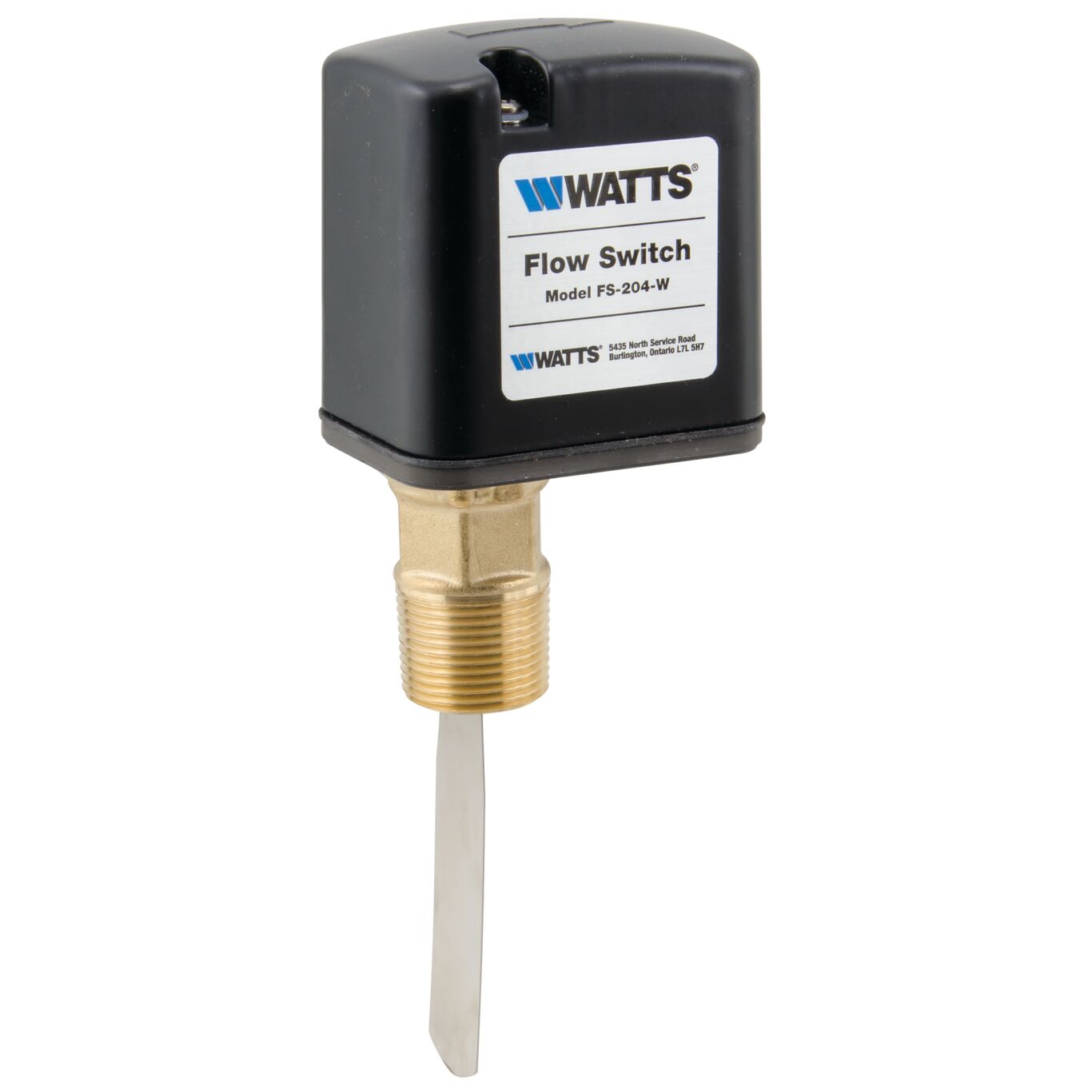

FS-204-W
Paddle-Type Flow Switches
Series FS-204-W Paddle-Type Flow Switches are used in commercial and industrial applications to accurately monitor the flow of liquid in pipelines servicing water systems, heating systems, air conditioning and processing installations for industrial and commercial applications. The flow switches are designed to act as automatic control or safety devices for liquid flow. The FS-204-W's enclosure is NEMA 4 for wet locations. Maximum Pressure: 160psi (11 bar).
Features
- Used to accurately monitor flow in pipelines servicing water systems, heating systems, air conditioning, and processing installations in industrial and commercial applications
- Flow switches are designed to act as automatic control or safety devices for liquid flow
- Single pole double throw switch operates signal devices, motors, alarms, metering devices, and heating units
- Size 1 in. (25mm) NPT pipe connection for pipes 1 in. - 6 in. (25 – 150mm)
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FS-204-W
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
