AP-65-TMU 1/2
×
![]()
Discontinued
Part of the 65 Series
Ordering Code: 0036001
UPC: 098268395051
Lead Free: Not In Scope

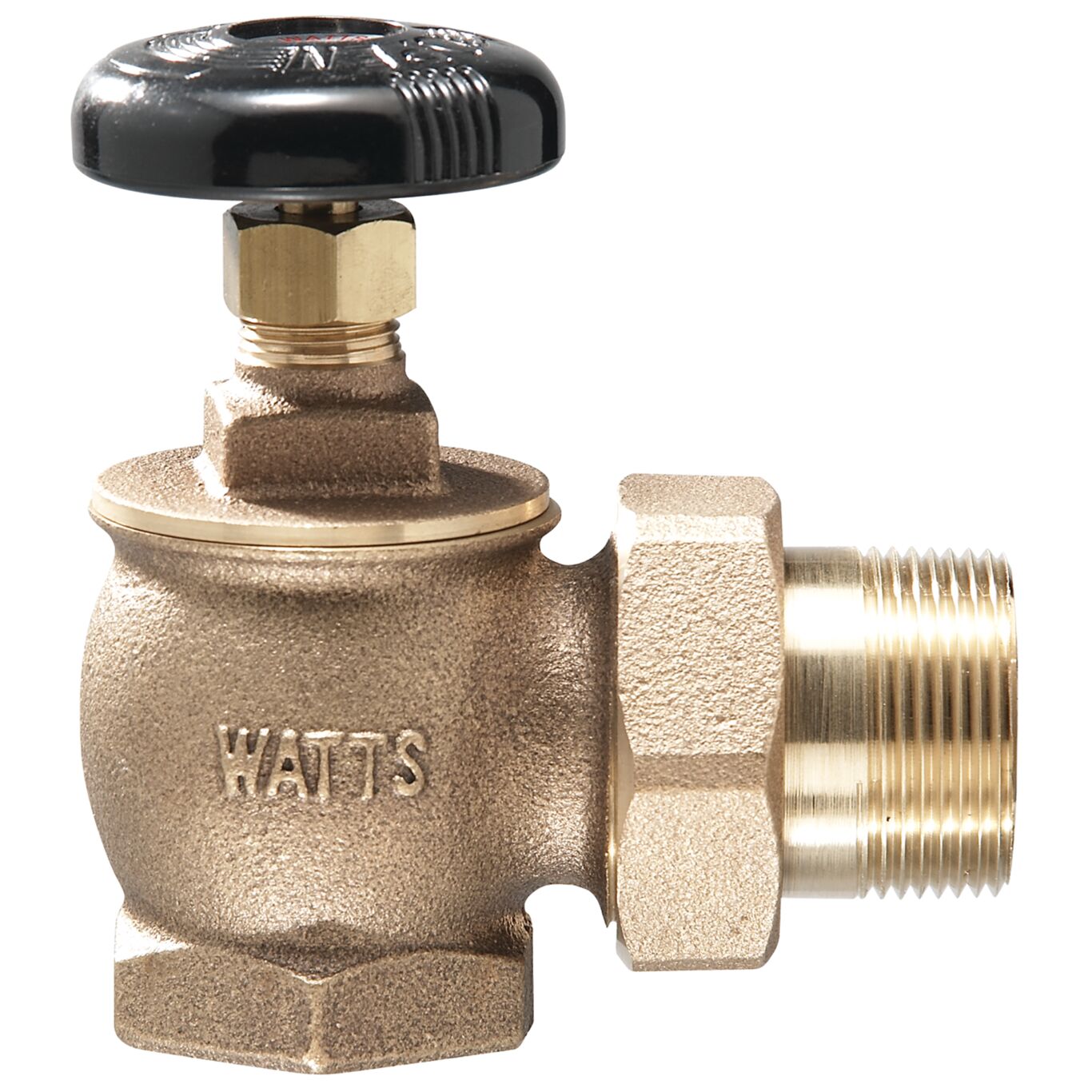

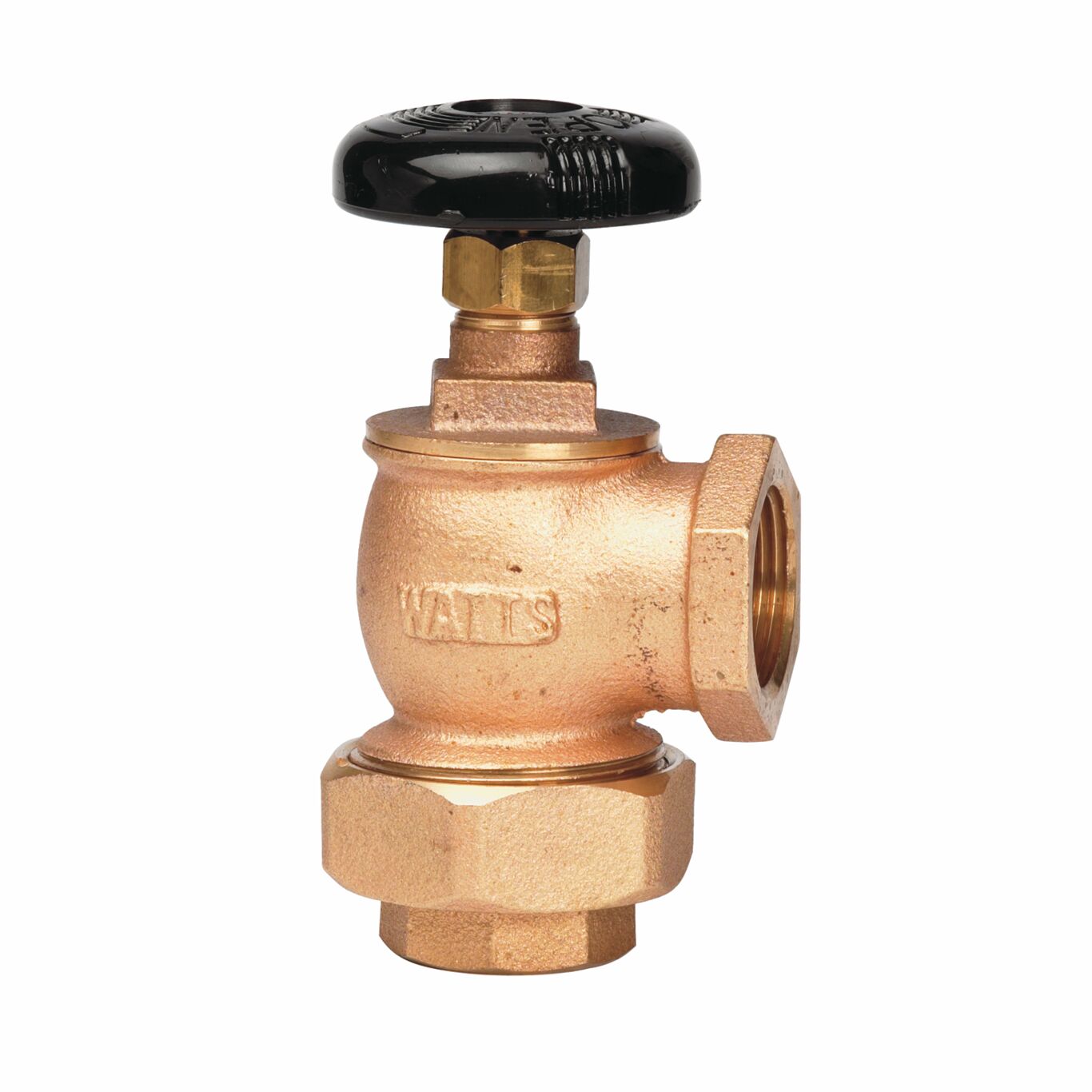

1/2 In Radiator Supply Valve, Angle
This 1/2 IN angle radiator supply valve is used as positive manual shutoffs in two-pipe steam or forced circulation hot/chilled water systems. It features a brass body with threaded-male union connection, non-rising stem, heavy-duty packing spring and phenolic handle.
Features
- Angle pattern
- Constructed of heavy brass
- Female x female
- Copper sweat tailpiece
| Specifications | |
|---|---|
| Body Material | Brass |
| Body Pattern | Angle |
| Brand | Watts |
| Buy American Act Compliant | YES |
| EAN | 098268395051 |
| Hydronic Item Type | Radiator Supply Valve |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Size-Metric | 15 MM |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | Not In Scope |
| Maximum Operating Temperature-Fahrenheit | 308 |
| Maximum Steam Pressure-PSI | 60 |
| Maximum Water Pressure-PSI | 60 |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Union Joint |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | 0036001 |
| Series | 65 |
| Temperature Range | 33 to 308 degrees F |
